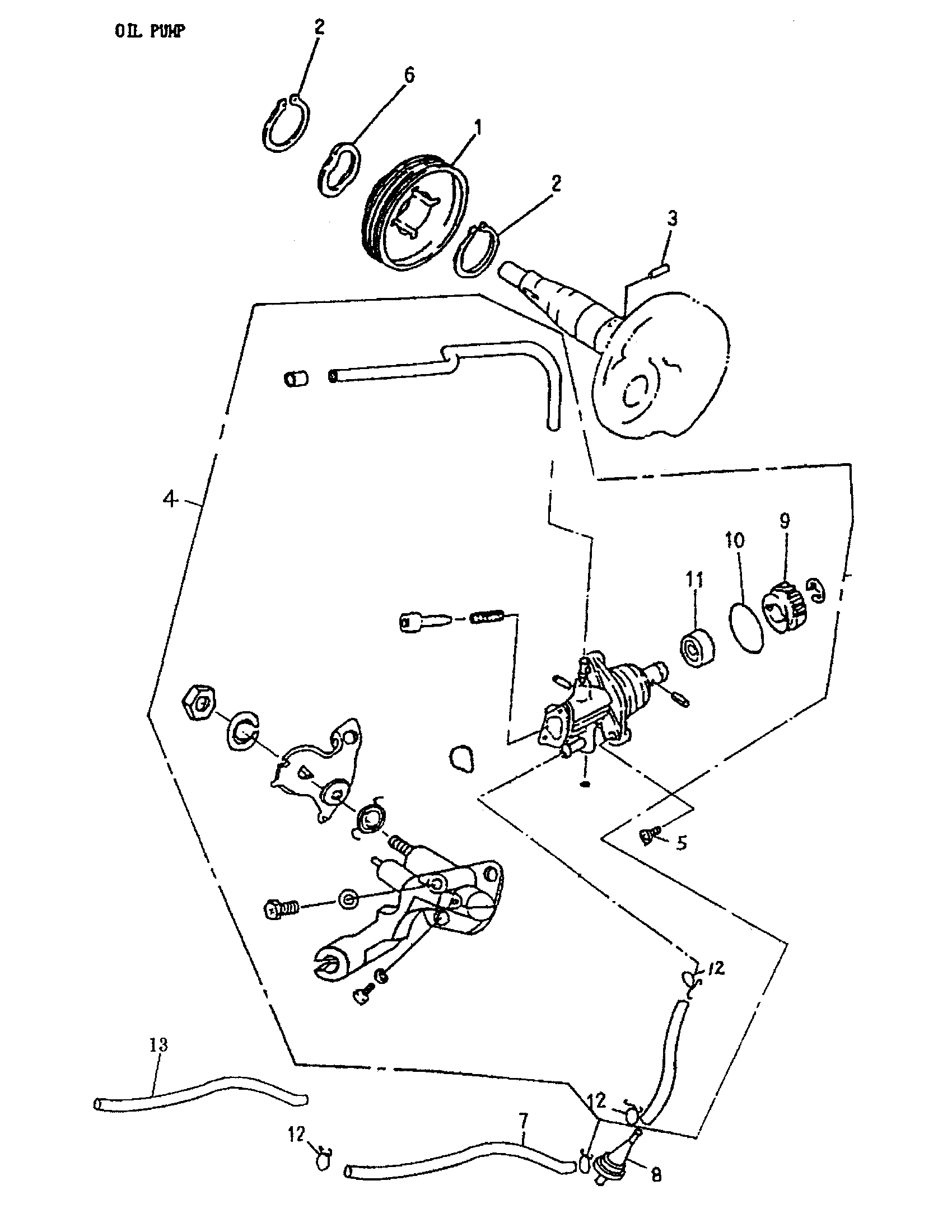

02- Oil Pump 170-04 для BRP Mini DS 90 2-strokes - 2002
-
№АртикулНазвание
-
1A15150104000 Pump Drive GearPump Drive Gear
-
2A945111900S External Circlip (STW-19)External Circlip (STW-19)
-
3A96300030118 Crank Shaft Pin (3 x 11.8)Crank Shaft Pin (3 x 11.8)
-
4A1510011700B Oil Pump Ass'yOil Pump Ass'y
-
5A9350005015 Pan Head Phillips Bolt M5 x 15Pan Head Phillips Bolt M5 x 15
-
6A15151104000 Wave Washer (19.2 x 26 x 0.3)Wave Washer (19.2 x 26 x 0.3)
-
7A944000408490 TubeTube
-
8A17502101000 Oil Filter CupOil Filter Cup
-
9A15136110000 Oil Pump Wormwheel (40T)Oil Pump Wormwheel (40T)
-
10A91319110000 Oil RingOil Ring
-
11A9650009164 Oil SealOil Seal
-
12A9451008000 ClipClip
-
13A944020911400 Tube CoverTube Cover
