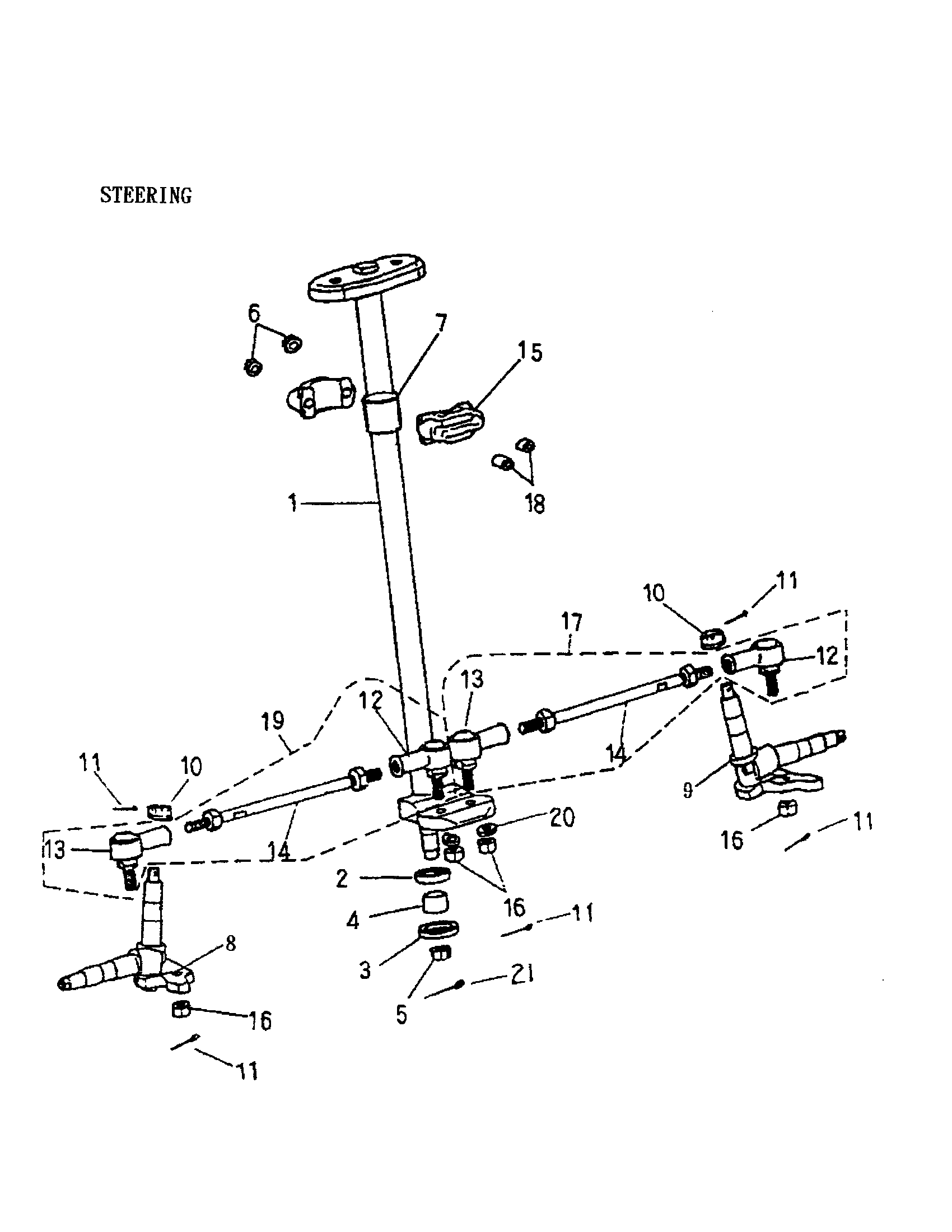

07- Steering System 170-23 для BRP Mini DS 90 2-strokes - 2002
-
№АртикулНазвание
-
1A51109155000 Steering Shaft Ass'ySteering Shaft Ass'y
-
2A9650018327 Oil SealOil Seal
-
3A9650022357 Oil Seal (22 x 35 x 7)Oil Seal (22 x 35 x 7)
-
4A44620145000 Spacer TubeSpacer Tube
-
5A9035014000 Nylon Nut (M14)Nylon Nut (M14)
-
6A9405008000 Hex. Flanged Nut With Serration (M8)Hex. Flanged Nut With Serration (M8)
-
7A51114145000 BushBush
-
8A44510145000 Left KnuckleLeft Knuckle
-
9A44520145000 Right KnuckleRight Knuckle
-
10A940521000014 Scotch Flanged Nut (M10)Scotch Flanged Nut (M10)
-
11A9420120190 Cotter PinCotter Pin
-
12A44511145001 L.H. Ball JointL.H. Ball Joint
-
13A44521145001 R.H. Ball JointR.H. Ball Joint
-
14A9100110200 Tie Rod Stud BoltTie Rod Stud Bolt
-
15A5111314500A Steering Shaft HolderSteering Shaft Holder
-
16A9035010000G Nylon Nut M10Nylon Nut M10
-
17A44500145001 Right Link Ass'yRight Link Ass'y
-
18A51115145000 Holder Spacer CollerHolder Spacer Coller
-
19A44501145001 Left Link Ass'yLeft Link Ass'y
-
20A941051022025G Plain WasherPlain Washer
-
21A9420130320 Cotter Pin (3 x 32)Cotter Pin (3 x 32)
