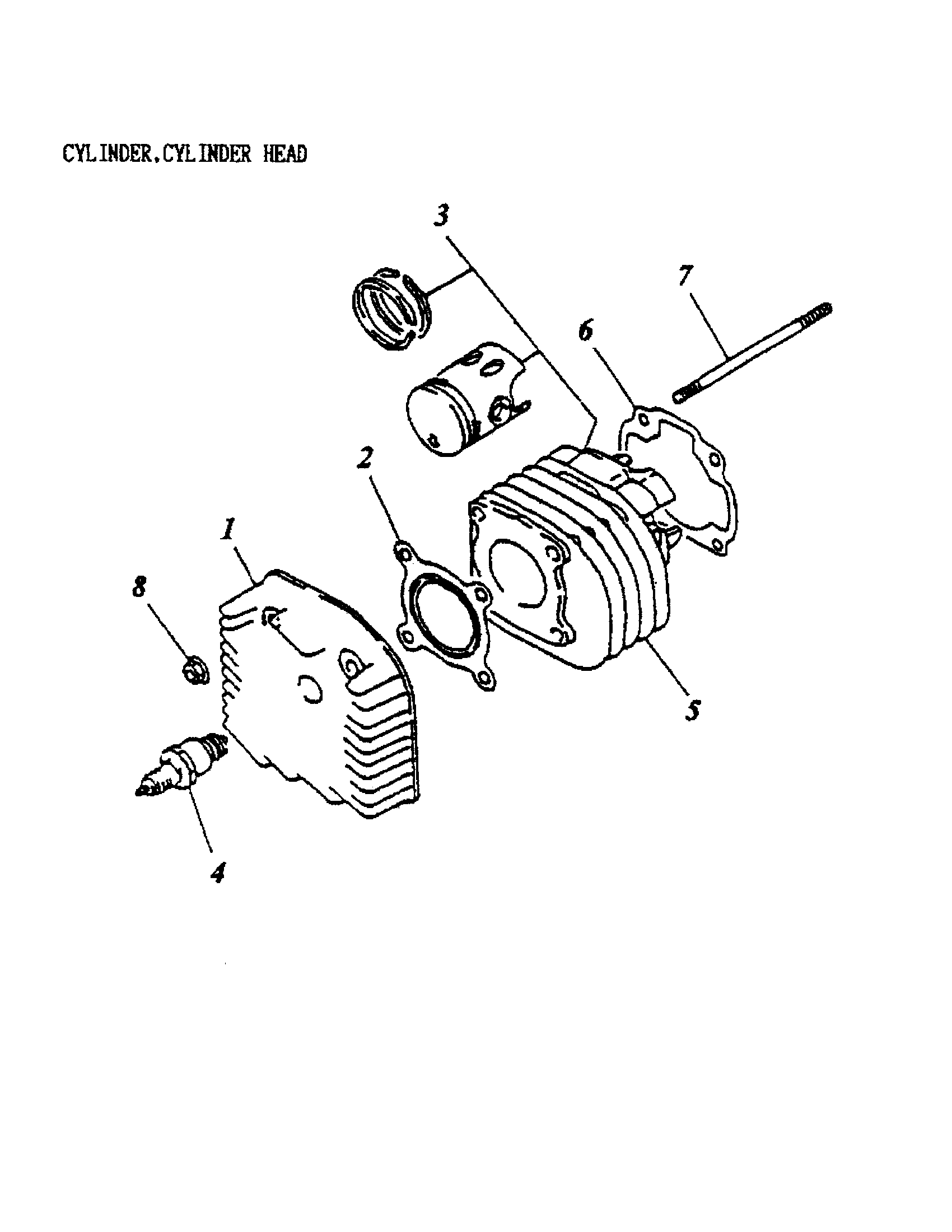

01- Cylinder, Cylinder Head 170-01 для BRP Mini DS 90 2-strokes - 2002
-
№АртикулНазвание
-
1A12201117000 Cylinder HeadCylinder Head
-
2A12251117000 Cylinder Head GasketCylinder Head Gasket
-
3A12301146000 Cylinder CompCylinder Comp
-
4A9807610100A Resistance Spark PlugResistance Spark Plug
-
5A12101146000 CylinderCylinder
-
6A12191117000 Cylinder GasketCylinder Gasket
-
7A9100107128 Stud Bout M7 x 128Stud Bout M7 x 128
-
8A9405007000 Hex. Flanged Nut With Serration (7 mm)Hex. Flanged Nut With Serration (7 mm)
