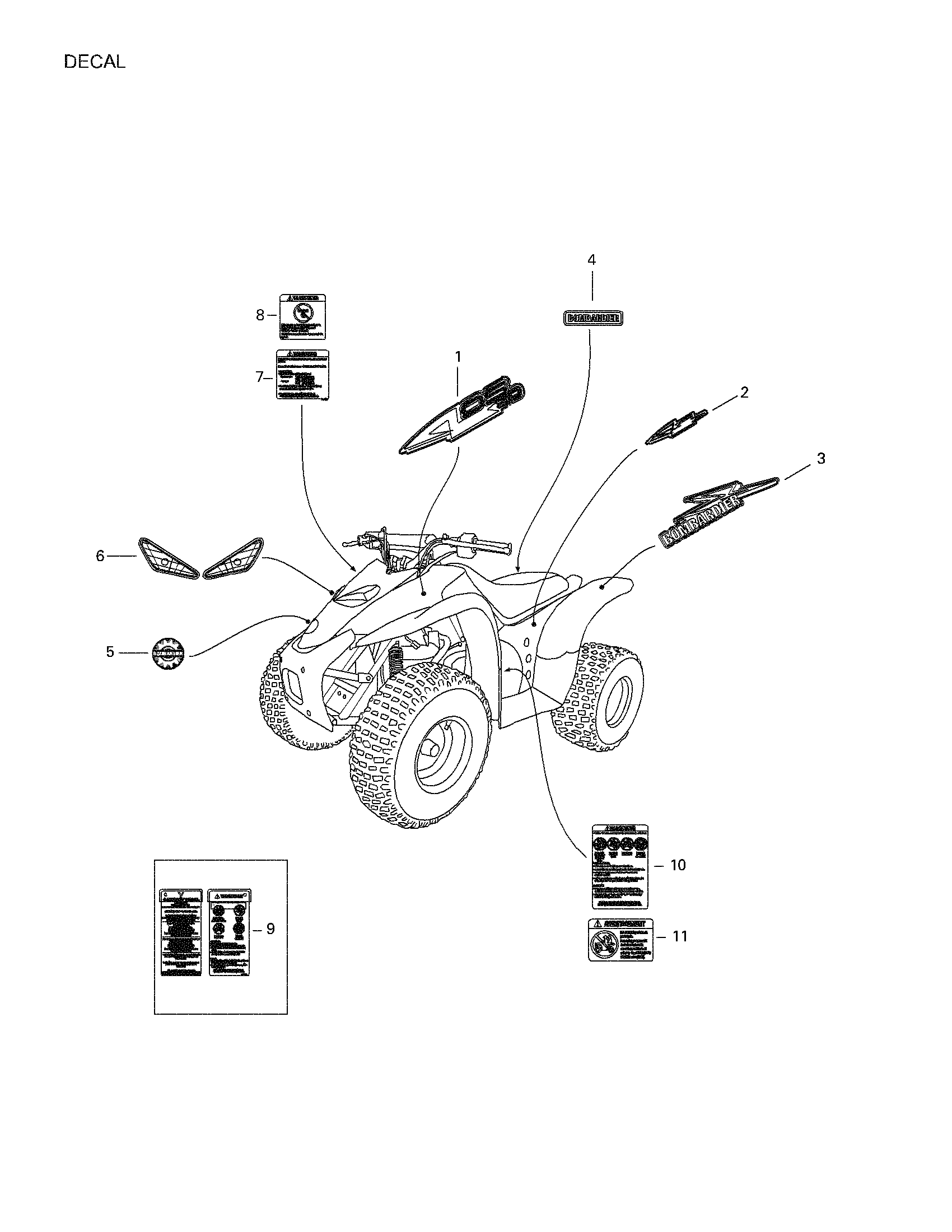

09- Decals 170-25 для BRP Mini DS 90 2-strokes - 2002
-
№АртикулНазвание
-
1A87700170000 Decal Kit. Includes 1, 2, 3 and 6Decal Kit. Includes 1, 2, 3 and 6
-
2A87700170000 Decal Kit. Includes 1, 2, 3 and 6Decal Kit. Includes 1, 2, 3 and 6
-
3A87700170000 Decal Kit. Includes 1, 2, 3 and 6Decal Kit. Includes 1, 2, 3 and 6
-
4704900289 Bombardier DecalBombardier Decal
-
5704900290 Bombardier Logo DecalBombardier Logo Decal
-
6A87700170000 Decal Kit. Includes 1, 2, 3 and 6Decal Kit. Includes 1, 2, 3 and 6
-
7704900293A Warning Label. Tire pressure, EnglishWarning Label. Tire pressure, English
-
7704900315 Warning Label. Tire pressure, FrenchWarning Label. Tire pressure, French
-
8704900294 Warning Label. Under 12, EnglishWarning Label. Under 12, English
-
8704900317 Warning Label. Under 12, FrenchWarning Label. Under 12, French
-
9704900301 Warning Label. Mini DS, EnglishWarning Label. Mini DS, English
-
9704900319 Warning Label. Mini DS, FrenchWarning Label. Mini DS, French
-
10704900302 Warning Decal (Atv General)Warning Decal (Atv General)
-
11704900005 Warning Label. Passenger, EnglishWarning Label. Passenger, English
-
11704900320 Warning Label. Passenger, FrenchWarning Label. Passenger, French
Все узлы модели:
- 01- Camshaft, Piston (170-02)
- 01- Crankcase (170-08)
- 01- Cylinder, Cylinder Head 170-01
- 01- Exhaust 170-07
- 01- Fan, Air Shroud 170-03
- 01- Reed Valve, Air Cleaner 170-05
- 02- Carburetor 170-06
- 02- Fuel Tank, Oil Tank 170-16
- 02- Oil Pump 170-04
- 04- Generator, Starting Motor 170-12
- 04- Starter 170-09
- 05- Clutch 170-10
- 05- Rear Wheel Axle, Chain 170-22
- 05- Transmission 170-11
- 06- Front Brake 170-19
- 06- Rear Brake 170-20
- 07- Front Wheel, Suspension 170-17
- 07- Handlebar 170-21
- 07- Steering System 170-23
- 08- Rear Wheel 170-18
- 09- Arm, Foot Rest, Bumper 170-14
- 09- Body Cover, Seat 170-15
- • 09- Decals 170-25
- 09- Frame And Body 170-13
- 10- Electrical Components 170-24
