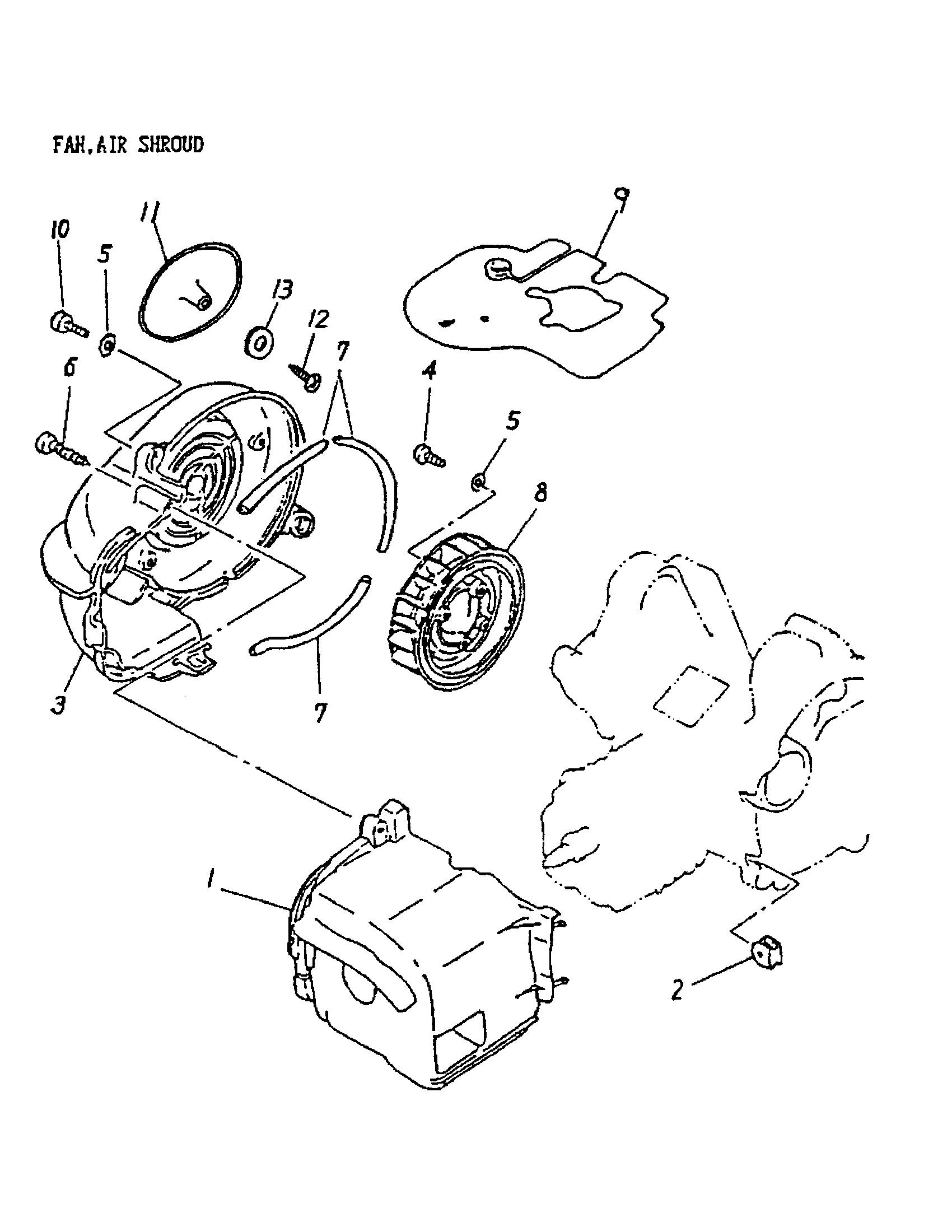

01- Fan, Air Shroud 170-03 для BRP Mini DS 90 2-strokes - 2002
-
№АртикулНазвание
-
1A19620117000 Cylinder Air ShroudCylinder Air Shroud
-
2A83552116000 GrommetGrommet
-
3A19610116000 Generator CoverGenerator Cover
-
4A9100006015 Hex. Socket Bolt M6 x 15Hex. Socket Bolt M6 x 15
-
5A941010613010 Plain Washer (6 x 13 x 1)Plain Washer (6 x 13 x 1)
-
6A9390305040 Tapping Screw Truss Head PhillipsTapping Screw Truss Head Phillips
-
7A17632116000 DamperDamper
-
8A19510116000 FanFan
-
9A55122116000 DeflectorDeflector
-
10A9100006020 Hex. Socket Bolt M6 x 20Hex. Socket Bolt M6 x 20
-
11A1961214500A Generator Outter CoverGenerator Outter Cover
-
12A9390305016 Tapping Screw Truss Head Phillips M5 x 16Tapping Screw Truss Head Phillips M5 x 16
-
13A941010618010 Plain Washer (6 x 18 x 1)Plain Washer (6 x 18 x 1)
