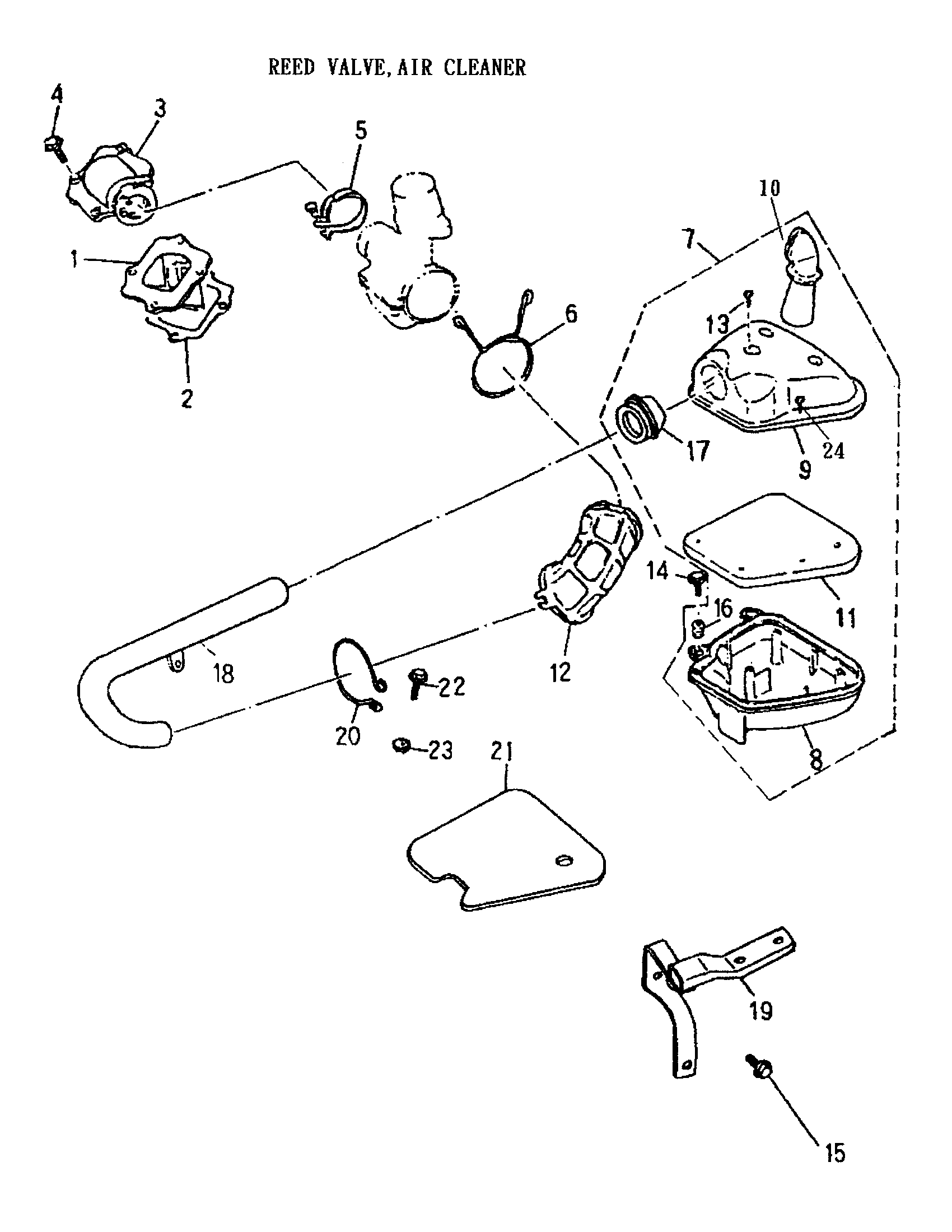

01- Reed Valve, Air Cleaner 170-05 для BRP Mini DS 90 2-strokes - 2002

№

Артикул

Название
1

A14100116000 Reed Valve Ass'y

Reed Valve Ass'y

4 310 ₽
2

A17111116000 Reed Valve Gasket

Reed Valve Gasket

500 ₽
3

A17100116000 Intake Manifold

Intake Manifold

2 320 ₽
4

A960000601808 Hex. Washer Face Bolt (M6 x 18)

Hex. Washer Face Bolt (M6 x 18)

330 ₽
5

A14110104000 Intake Manifold Hose Clamp

Intake Manifold Hose Clamp

1 150 ₽
6

A9451040000 Clip

Clip

330 ₽
7

A1720014500A Air Cleaner Ass'y

Air Cleaner Ass'y

0 ₽
8

A17206145000 Air CleanerBase

Air CleanerBase

1 680 ₽
9

A17207145000 Cleaner Case Cover

Cleaner Case Cover

1 730 ₽
10

A17219145000 Cleaner Guide Pipe

Cleaner Guide Pipe

1 680 ₽
11

A17205145000 Air Cleaner Element

Air Cleaner Element

2 830 ₽
12

A17253116000 Air Cleaner Joint

Air Cleaner Joint

0 ₽
13

A9390305025 Tapping Screw Truss Head Phillips

Tapping Screw Truss Head Phillips

320 ₽
14

A920000602010 Hex. Bolt (M6 x 20)

Hex. Bolt (M6 x 20)

310 ₽
15

A960000802512 Hex. Washer Face Bolt (M8 x 25)

Hex. Washer Face Bolt (M8 x 25)

610 ₽
16

A96485116000 Grommet

Grommet

0 ₽
17

A17254145000 Air Cleaner Connection

Air Cleaner Connection

530 ₽
18

A17257146000 Air Duct

Air Duct

3 780 ₽
19

A17260145000 Air Cleaner Bracket

Air Cleaner Bracket

0 ₽
20

A945104500A Clip

Clip

0 ₽
21

A17220145000 Air Cleaner Isolation Gasket

Air Cleaner Isolation Gasket

0 ₽
22

A920010502808 Hex. Head Phillips Bolt (M5 x 28)

Hex. Head Phillips Bolt (M5 x 28)

250 ₽
23

A9405005000 Hex. Flanged Nut With Serration (M5)

Hex. Flanged Nut With Serration (M5)

250 ₽
24

A9390304012 Tapping Screw Truss Head Phillips M4 x 12

Tapping Screw Truss Head Phillips M4 x 12

0 ₽
