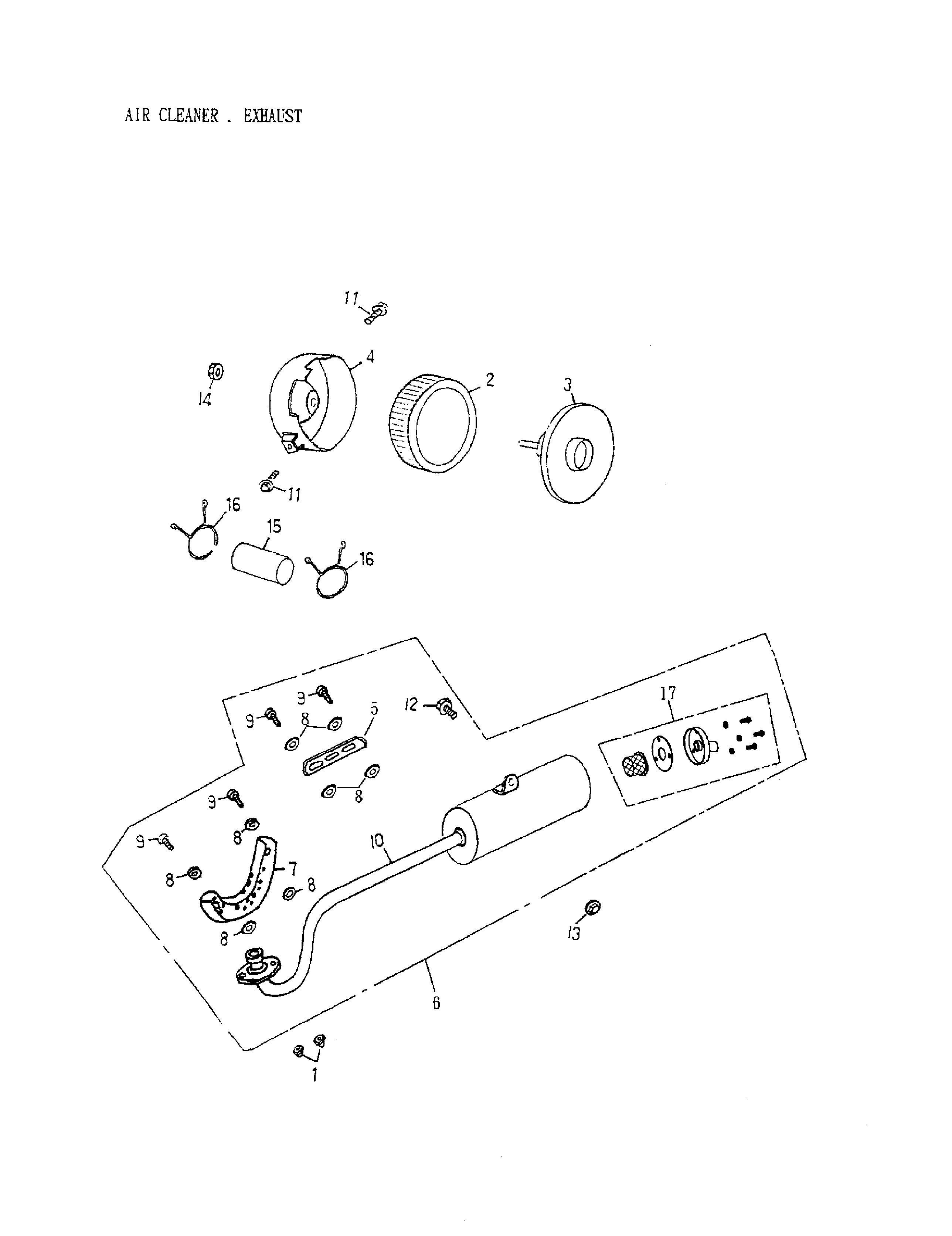

01- Air Cleaner, Exhaust (172-15) для BRP Mini DS 90 4-strokes - 2002
-
№АртикулНазвание
-
1A9402106000 Acorm Cap Nut M6Acorm Cap Nut M6
-
2A17205152000 Air Cleaner ElementAir Cleaner Element
-
3A17206152000 Air Cleaner BaseAir Cleaner Base
-
4A17207152000 Air Cleaner CoverAir Cleaner Cover
-
5A18319158000 Muffler ShroudMuffler Shroud
-
6A1830015200A Exhaust Pipe Ass'yExhaust Pipe Ass'y
-
7A18318152000 Muffler ShroudMuffler Shroud
-
8A18292104000 Muffler Shroud PackingMuffler Shroud Packing
-
9A9350006008 Pan Head Phillips Bolt M6 x 8Pan Head Phillips Bolt M6 x 8
-
10A18311152000 Front Exhaust PipeFront Exhaust Pipe
-
11A9600006012 Hex. Washer Face Bolt M6 x 12Hex. Washer Face Bolt M6 x 12
-
12A960000802012 Hex. Washer Face Bolt M8 x 20Hex. Washer Face Bolt M8 x 20
-
13A9405008000 Hex. Flanged Nut With Serration M8Hex. Flanged Nut With Serration M8
-
14233261414 Hex. Flanged Nut With Serration M6Hex. Flanged Nut With Serration M6
-
15A52101145000 Rubber SleeveRubber Sleeve
-
16A9451040000 ClipClip
-
17A18330152000 Spark ArresterSpark Arrester
