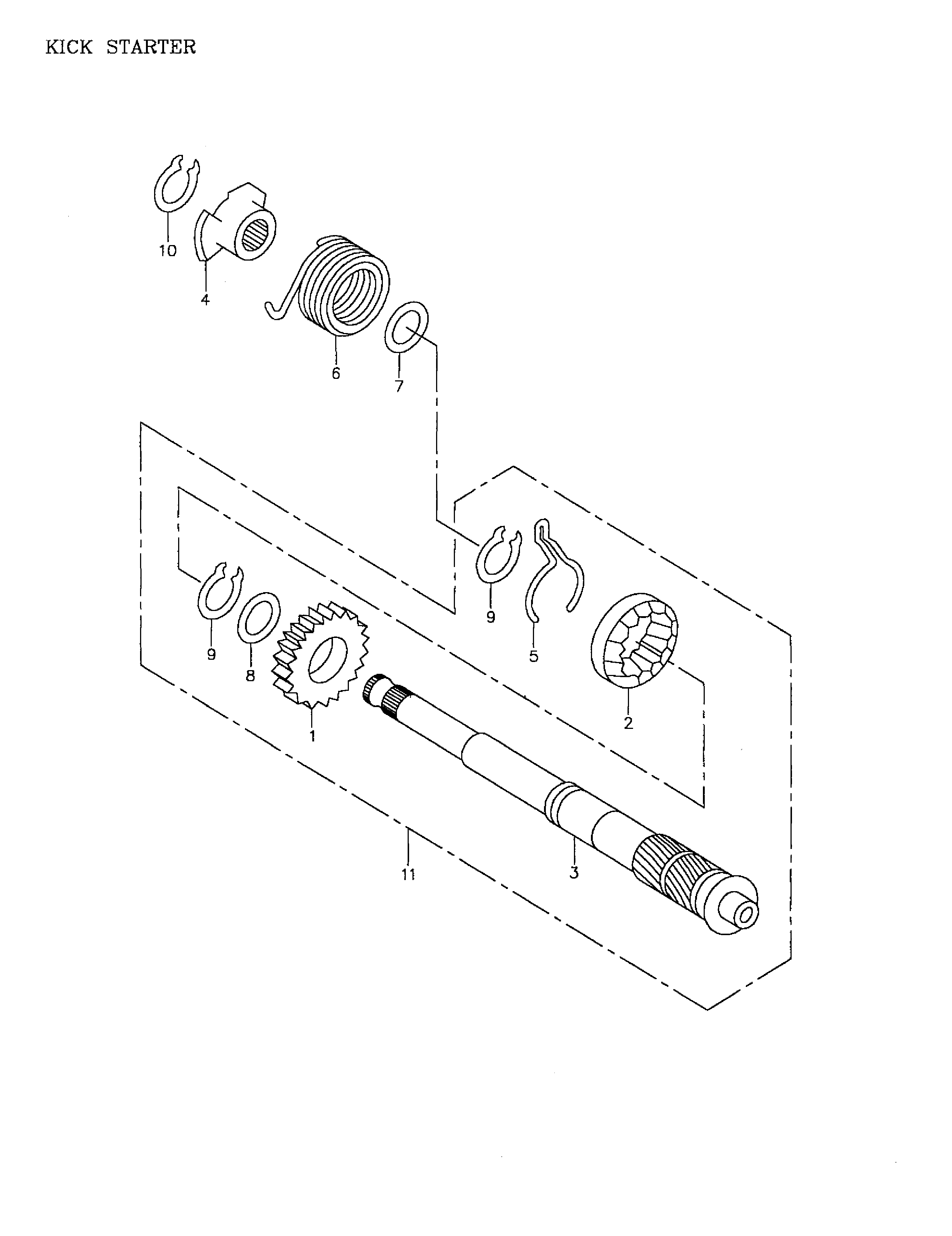

04- Kick Starter 172-12 для BRP Mini DS 90 4-strokes - 2002
-
№АртикулНазвание
-
1A28211152000 Kick Starter PinionKick Starter Pinion
-
2A28221152000 Kick Starter Rive RatchetKick Starter Rive Ratchet
-
3A28250152000 Starter Spindle CompStarter Spindle Comp
-
4A28262152000 Kick Spring RetainerKick Spring Retainer
-
5A28271152000 Starter Eriction SpringStarter Eriction Spring
-
6A28281152000 Kick Starter SpringKick Starter Spring
-
7A904511724010 WasherWasher
-
8A904512025010 Thrust WasherThrust Washer
-
9A945112000G External CirclipExternal Circlip
-
10A945111600S External CirclipExternal Circlip
-
11A28201152000 Kick Starter Spindle Ass'yKick Starter Spindle Ass'y
