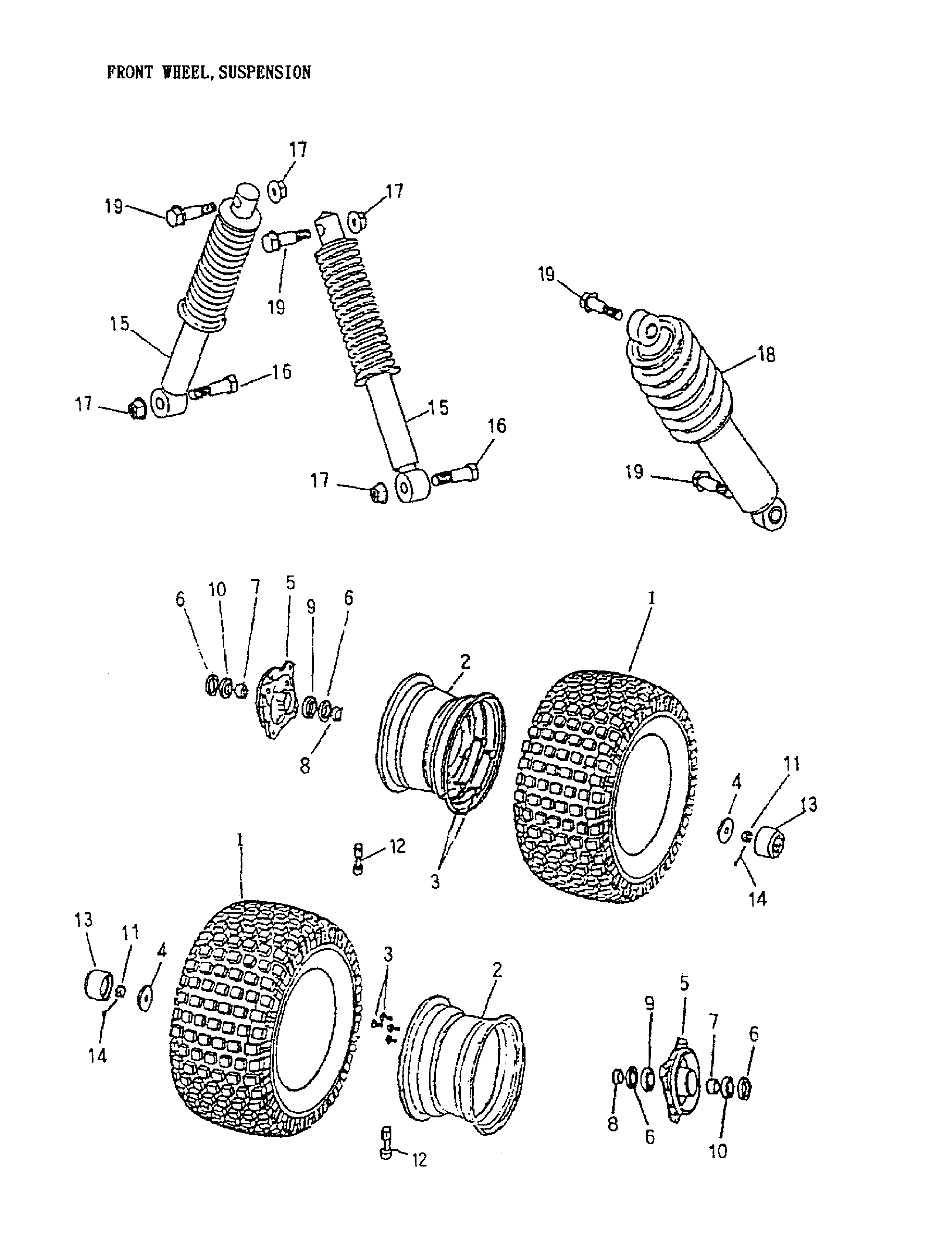

07- Front Wheel, Suspension 172-20 для BRP Mini DS 90 4-strokes - 2002
-
№АртикулНазвание
-
1A4271114600A Front Tire (20/7-8)Front Tire (20/7-8)
-
2A42701146000 Rim Ass'yRim Ass'y
-
3A960001002014 Hex. Washer Face Bolt M10 x 20Hex. Washer Face Bolt M10 x 20
-
4A941011240045 Plain Washer (12 x 40 x 4.5)Plain Washer (12 x 40 x 4.5)
-
5A4271014500B Front Brake DrumFront Brake Drum
-
6A9650022357 Oil Seal (22 x 35 x 7)Oil Seal (22 x 35 x 7)
-
7A44620145000 Spacer TubeSpacer Tube
-
8A44311145000 Front CollarFront Collar
-
9A961006002Z Radial Ball Bearing (6002Z)Radial Ball Bearing (6002Z)
-
10A961006003Z Radial Ball Bearing (6003Z)Radial Ball Bearing (6003Z)
-
11A940511200017 Nut Cross Threar M12Nut Cross Threar M12
-
12A42616145000 Air NozzleAir Nozzle
-
13A4281414500A Rubber CoverRubber Cover
-
14A9420130320 Cotter Pin (3 x 32)Cotter Pin (3 x 32)
-
15A51400152000 Front CushionFront Cushion
-
16A920001004014G Hex. Bolt M10 x 40Hex. Bolt M10 x 40
-
17A9035010000G Nylon Nut (10 mm x 1.25)Nylon Nut (10 mm x 1.25)
-
18A52400145000 Rear CushionRear Cushion
-
19A960001004014G Hex. Washer Face Bolt M10 x 40Hex. Washer Face Bolt M10 x 40
