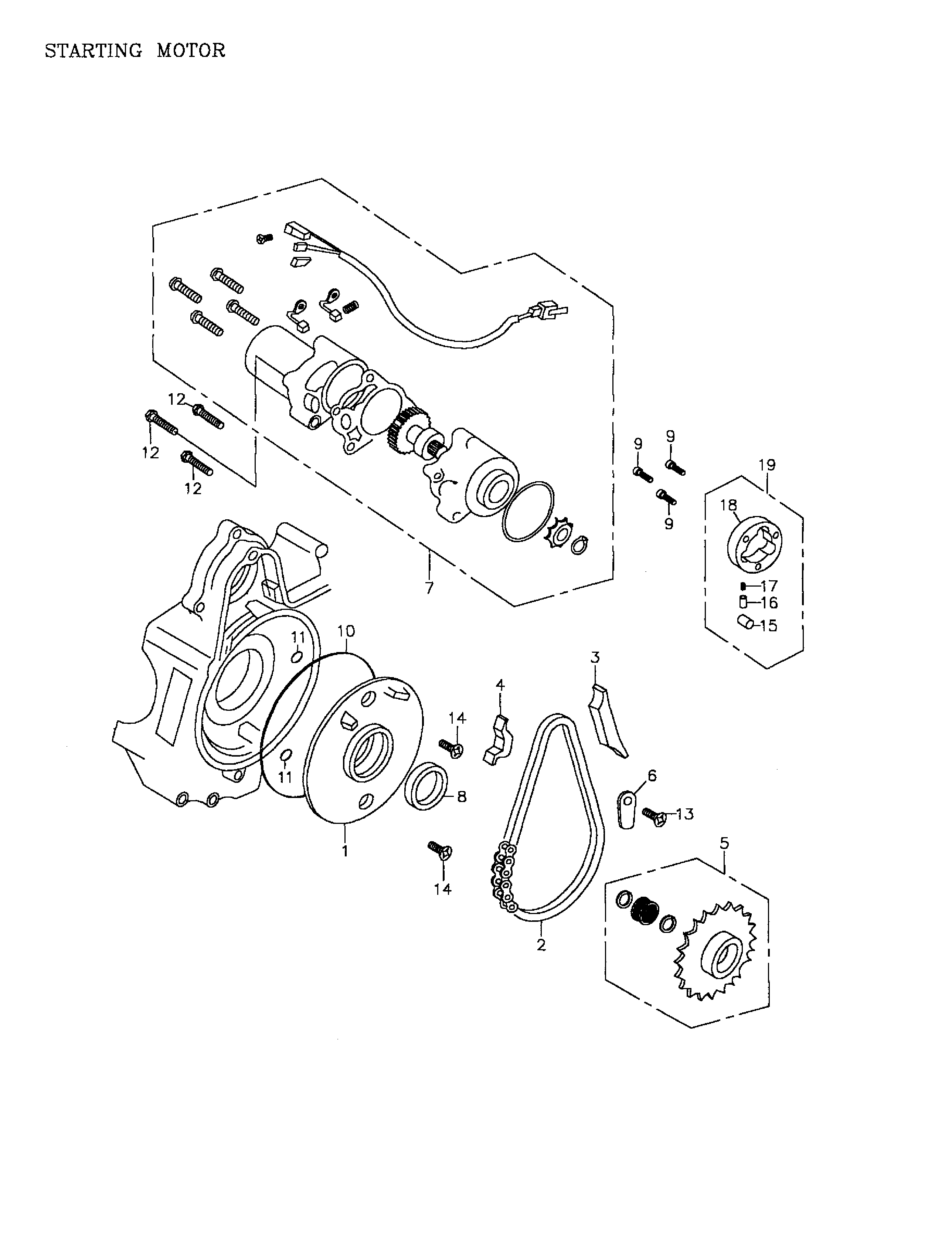

04- Starting Motor 172-08 для BRP Mini DS 90 4-strokes - 2002
-
№АртикулНазвание
-
1A11321152000 Oil Separate PlateOil Separate Plate
-
2A28101152000 Starter ChainStarter Chain
-
3A28102152000 Starter Chain GuideStarter Chain Guide
-
4A28103152000 Starter Chain ProtectorStarter Chain Protector
-
5A28110152000 Starter Sprocket CompStarter Sprocket Comp
-
6A28117152000 Starting Sprocket PlateStarting Sprocket Plate
-
7A31200152000 Starter MotorStarter Motor
-
8A9650030424 Oil SealOil Seal
-
9A9100006014 Hex. Socket Bolt M6 x 14Hex. Socket Bolt M6 x 14
-
10A91107152000 Oil RingOil Ring
-
11A91306152000 Oil RingOil Ring
-
12A920000604510 Hex. Bolt M6 x 45Hex. Bolt M6 x 45
-
13A9350006010 Pan Head Phillips Bolt M6 x 10Pan Head Phillips Bolt M6 x 10
-
14A9390206016 Flat Head Phillips Bolt M6 x 16Flat Head Phillips Bolt M6 x 16
-
15A28411120000 Starter Clutch RollerStarter Clutch Roller
-
16A28412152000 Starter Clutch GuiderStarter Clutch Guider
-
17A28413152000 Starter Clutch SpringStarter Clutch Spring
-
18A28120152000 Clutch Cover CompClutch Cover Comp
-
19A28410152000 Starter Clutch Ass'yStarter Clutch Ass'y
