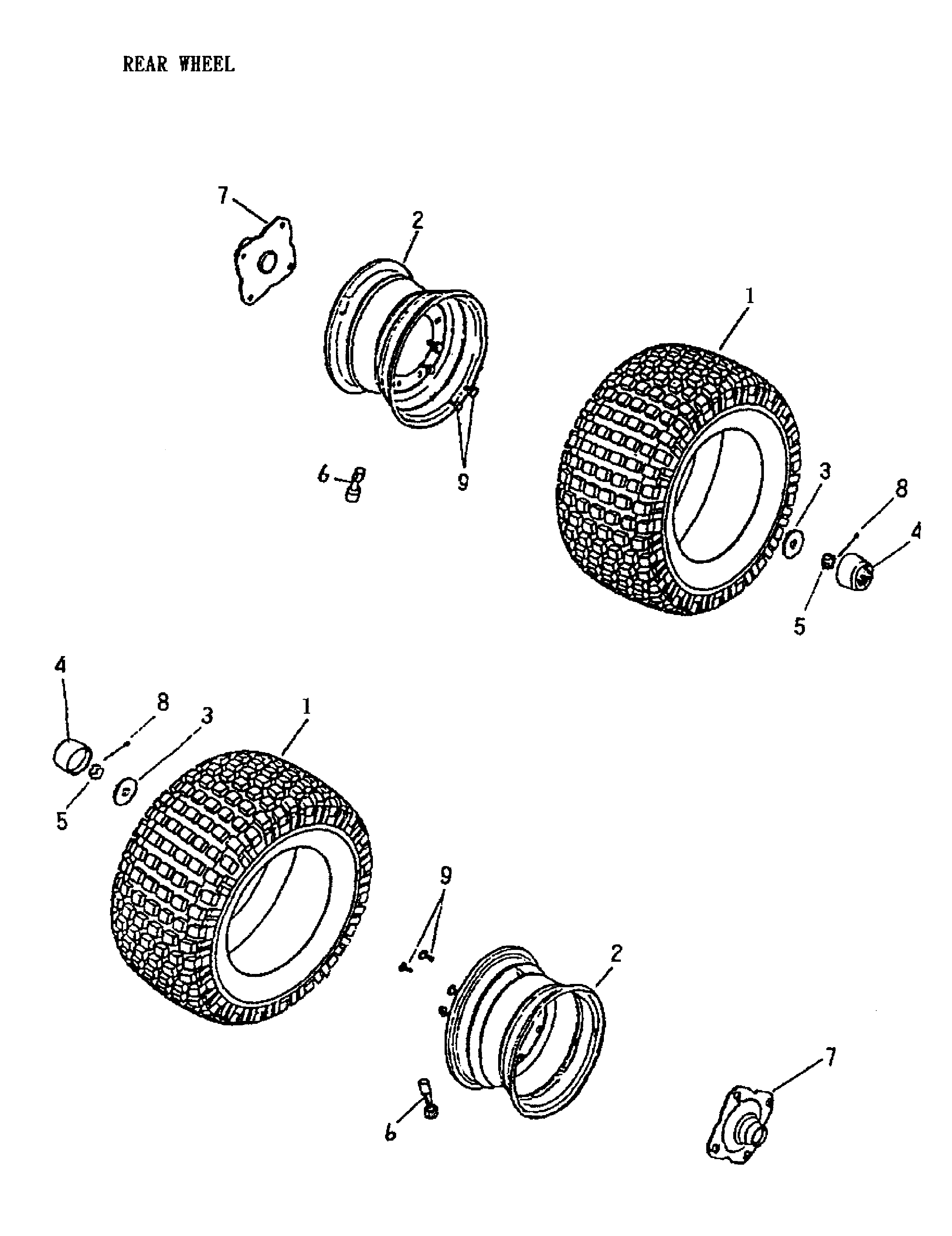

08- Rear Wheel 172-21 для BRP Mini DS 90 4-strokes - 2002
-
№АртикулНазвание
-
1A4281114600A Rear Tire (18/9.5-8)Rear Tire (18/9.5-8)
-
2A42801146000 Rim Ass'yRim Ass'y
-
3A941011440045 Plain Washer (14 x 40 x 4.5)Plain Washer (14 x 40 x 4.5)
-
4A4281414500A Rubber CoverRubber Cover
-
5A940521400021 Scotch Flanged Nut M14Scotch Flanged Nut M14
-
6A42616145000 Air NozzleAir Nozzle
-
7A42036145001 Shaft ConnectorShaft Connector
-
8A9420130320 Cotter Pin (3 x 32)Cotter Pin (3 x 32)
-
9A960001002014 Hex. Washer Face Bolt M10 x 20Hex. Washer Face Bolt M10 x 20
