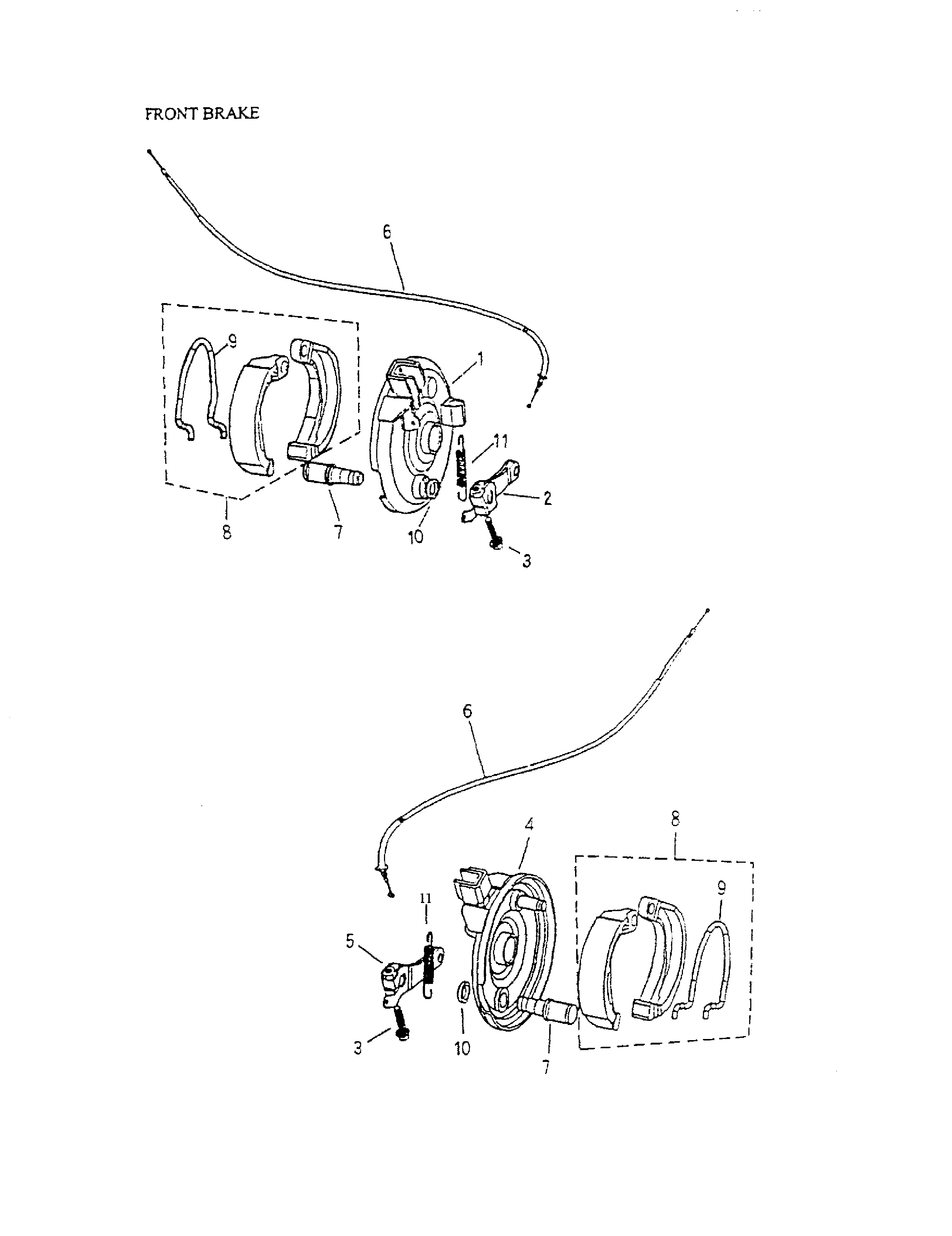

06- Front Brake 172-22 для BRP Mini DS 90 4-strokes - 2002
-
№АртикулНазвание
-
1A45010145000 Front Left Brake PanelFront Left Brake Panel
-
2A45410145000 Front Left Brake ArmFront Left Brake Arm
-
3A960000502408 Hex. Washer Face Bolt M5 x 24Hex. Washer Face Bolt M5 x 24
-
4A45020145000 Front Right Brake PanelFront Right Brake Panel
-
5A45310145000 Front Right Brake ArmFront Right Brake Arm
-
6A45450145000 Front Brake CableFront Brake Cable
-
7A45141145000 Front Brake Cam ShaftFront Brake Cam Shaft
-
8A45120145001 Front Brake Shoe CompFront Brake Shoe Comp
-
9A45133145000 Strain SpringStrain Spring
-
10A91313104000 Oil RingOil Ring
-
11A45437145000 Return SpringReturn Spring
