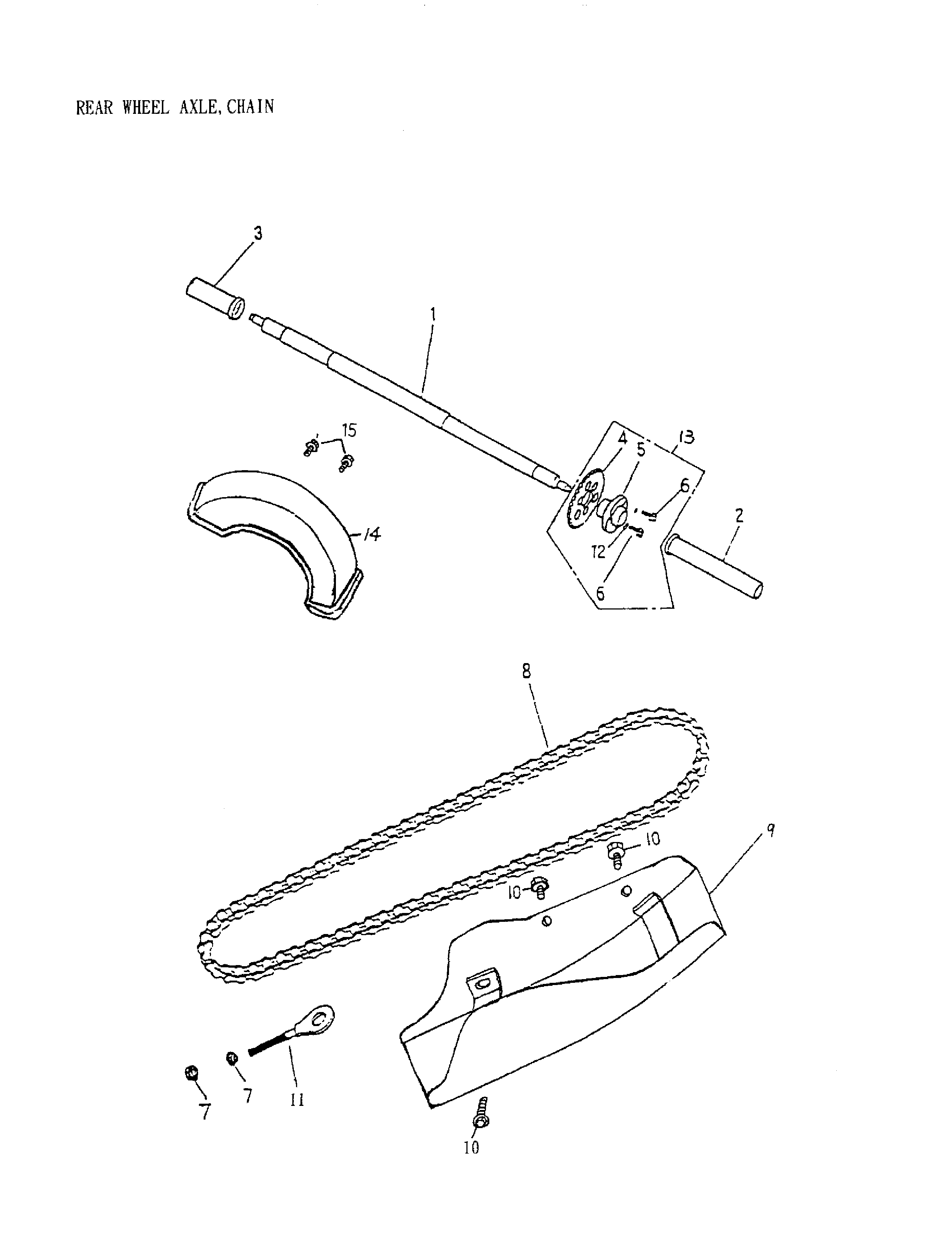

05- Rear Wheel Axle, Chain 172-26 для BRP Mini DS 90 4-strokes - 2002
-
№АртикулНазвание
-
1A42301152000 Rear Wheel AxleRear Wheel Axle
-
2A42620152001 R.H. Spacer CollarR.H. Spacer Collar
-
3A42622152001 LH Spacer CollarLH Spacer Collar
-
4A41201152001 Rear Sprocket (50T)Rear Sprocket (50T)
-
5A42610152000 Final Drive FlangeFinal Drive Flange
-
6A960001002014 Hex. Washer Face Bolt M10 x 20Hex. Washer Face Bolt M10 x 20
-
7233261414 Hex. Flanged Nut With Serration M6Hex. Flanged Nut With Serration M6
-
8A40530152000 Drive Chain (428 x 90)Drive Chain (428 x 90)
-
9A40510152000 Chain Protect CoverChain Protect Cover
-
10A960000801212G Hex. Washer Face Bolt M8 x 12Hex. Washer Face Bolt M8 x 12
-
11A40543145000 Drive Chain AdjusterDrive Chain Adjuster
-
12A941111022030 Spring Washer (10 x 22 x 3)Spring Washer (10 x 22 x 3)
-
13A42600152001 Rear Sprocket Ass'y (50T)Rear Sprocket Ass'y (50T)
-
14A40511152000 Rear Chain CoverRear Chain Cover
-
15A960000601210G Hex. Washer Face Bolt M6 x 12Hex. Washer Face Bolt M6 x 12
