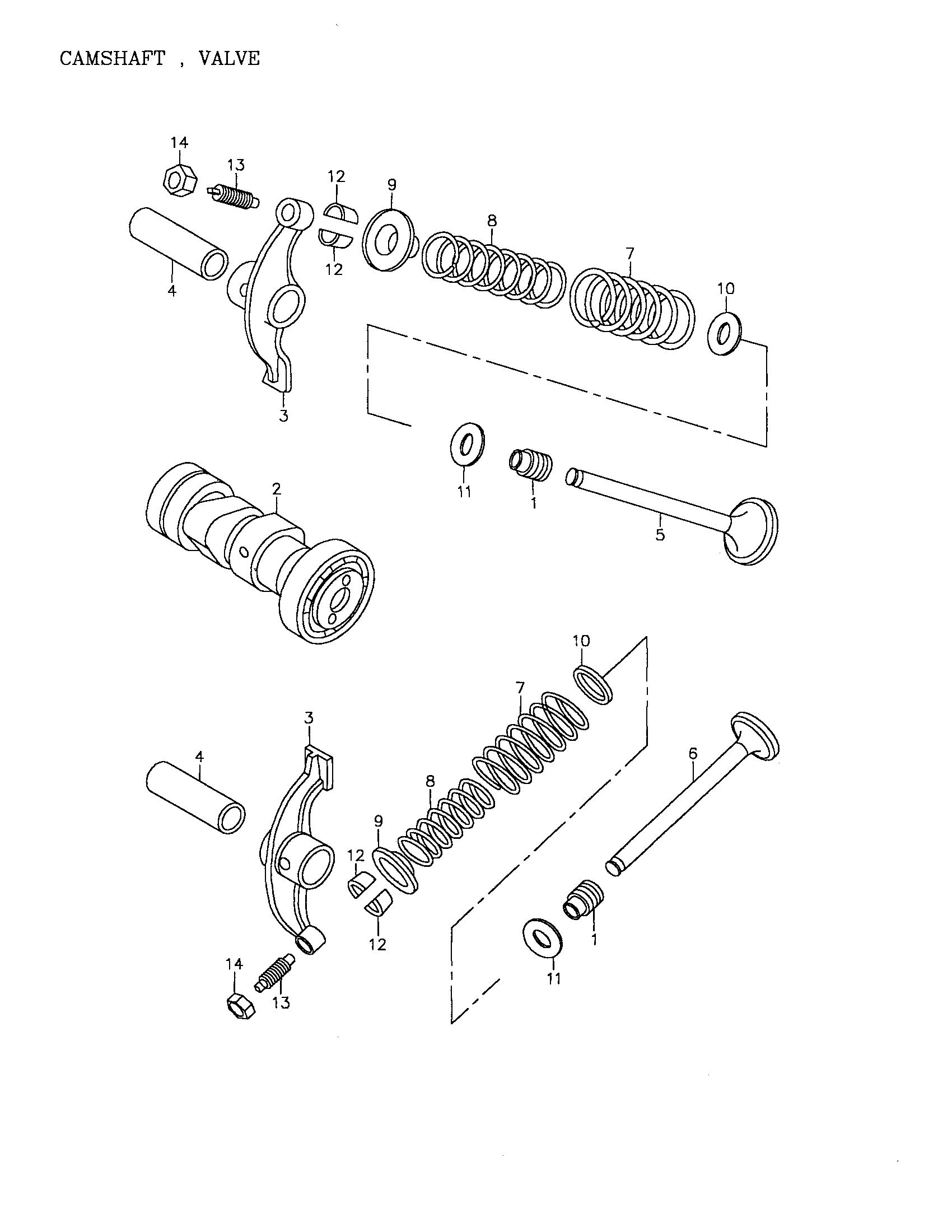

01- Camshaft, Valve для BRP Mini DS 90 4-strokes - 2004
-
№АртикулНазвание
-
1A12209152000 Valve Stem SealValve Stem Seal
-
2A14100152000 CamshaftCamshaft
-
3A14431152000 Valve Rocker ArmValve Rocker Arm
-
4A14451152000 Rocker Arm ShaftRocker Arm Shaft
-
5A14711152000 Inlet ValveInlet Valve
-
6A14721152000 Exhaust ValveExhaust Valve
-
7A14751152000 Valve Outer SpringValve Outer Spring
-
8A14761152000 Valve Inner SpringValve Inner Spring
-
9A14771152000 Valve Spring RetainerValve Spring Retainer
-
10A14776152000 Valve Spring Inner SeatValve Spring Inner Seat
-
11A12210152000 Valve Stem. Seal CapValve Stem. Seal Cap
-
12A14781152000 Valve CotterValve Cotter
-
13A90012120000 Valve Gap Adjusting ScrewValve Gap Adjusting Screw
-
14A90206120000 Valve Gap Adjusting NutValve Gap Adjusting Nut
