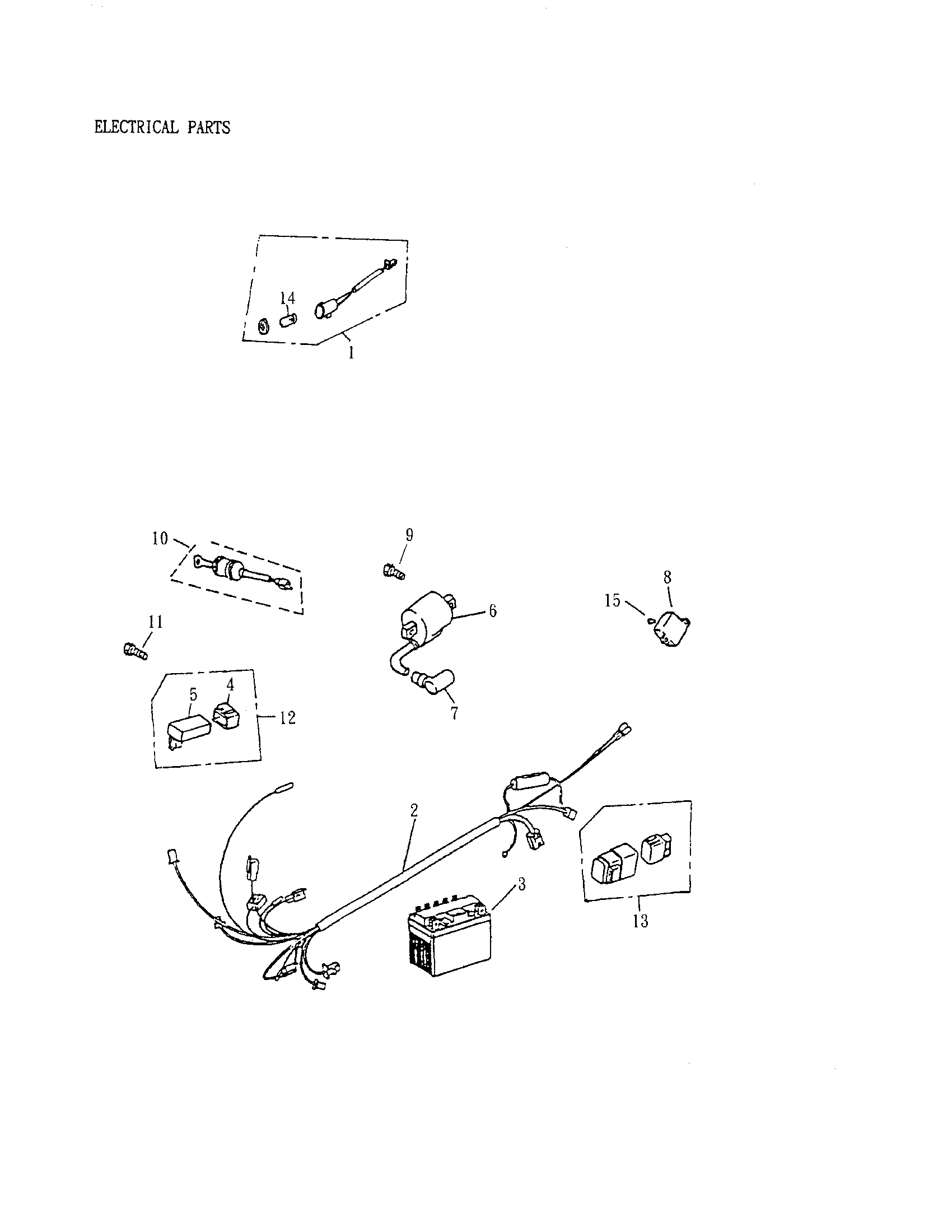

10- Electrical Components для BRP Mini DS 90 4-strokes - 2004
-
№АртикулНазвание
-
1A37250152000 Neutral IndicatorNeutral Indicator
-
2A32100172001 Main Wire HarnessMain Wire Harness
-
3A31500166000 BatteryBattery
-
4A30411152000 Fix RubberFix Rubber
-
5A30410152000 C.D.I UNITC.D.I UNIT
-
6A30510172000 High Tension CoilHigh Tension Coil
-
7A30700101000 Spark Plug CapSpark Plug Cap
-
8A31600110000 Regulator RectifierRegulator Rectifier
-
9A9390305025 Tapping Screw Truss Head Phillips M5 x 25Tapping Screw Truss Head Phillips M5 x 25
-
10A3510016600A Main Switch Ass'yMain Switch Ass'y
-
11A9380006015S Pan Head Phillips Bolt M6 x 15Pan Head Phillips Bolt M6 x 15
-
12A30400152000 C.D.I UnitC.D.I Unit
-
13A38500152000 Starting Relay Ass'yStarting Relay Ass'y
-
14A34908101000 Neutral Indicator BulbNeutral Indicator Bulb
-
15A9390305016 Tapping Screw Truss Head Phillips M5 x 16Tapping Screw Truss Head Phillips M5 x 16
