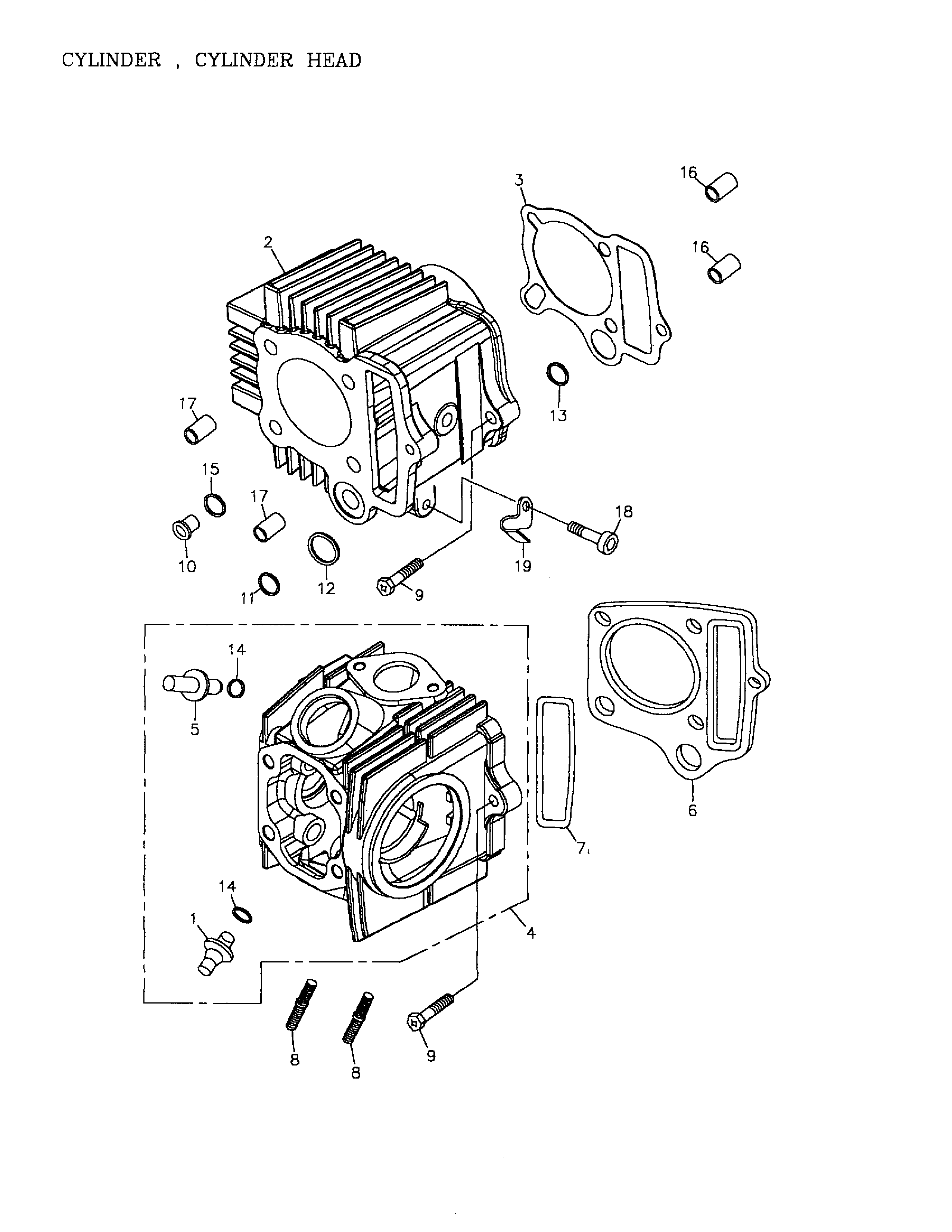

01- Cylinder, Cylinder Head для BRP Mini DS 90 4-strokes - 2004
-
№АртикулНазвание
-
1A12206152000 Exhaust Valve GuideExhaust Valve Guide
-
2A12101152000 Cylinder CompCylinder Comp
-
3A12191152000 Cylinder GasketCylinder Gasket
-
4A12201152000 Cylinder Head CompCylinder Head Comp
-
5A12204152000 Intake Valve GuideIntake Valve Guide
-
6A12251152000 Cylinder Head GasketCylinder Head Gasket
-
7A12255152000 Cam Chain. Chamber SealCam Chain. Chamber Seal
-
8A9100106032 Stud Bolt M6 x 32Stud Bolt M6 x 32
-
9A9100006023 Hex. Socket Bolt M6 x 23Hex. Socket Bolt M6 x 23
-
10A96401060810 Collar (6 x 8 x 10)Collar (6 x 8 x 10)
-
11A964011114016 Collar (11.5 x 14.8 x 1.6)Collar (11.5 x 14.8 x 1.6)
-
12A941021619020 Rubber GasketRubber Gasket
-
13A91314152000 Oil-RingOil-Ring
-
14A9130912000A Oil-RingOil-Ring
-
15A941020912015 Rubber GasketRubber Gasket
-
16A9430108120 Dowel Pin (8 x 12)Dowel Pin (8 x 12)
-
17A9430108140 Dowel Pin (8 x 14)Dowel Pin (8 x 14)
-
18A9100006010 Hex. Socket Bolt M6 x 10Hex. Socket Bolt M6 x 10
-
19A11351104000 Carburetor Tube BracketCarburetor Tube Bracket
