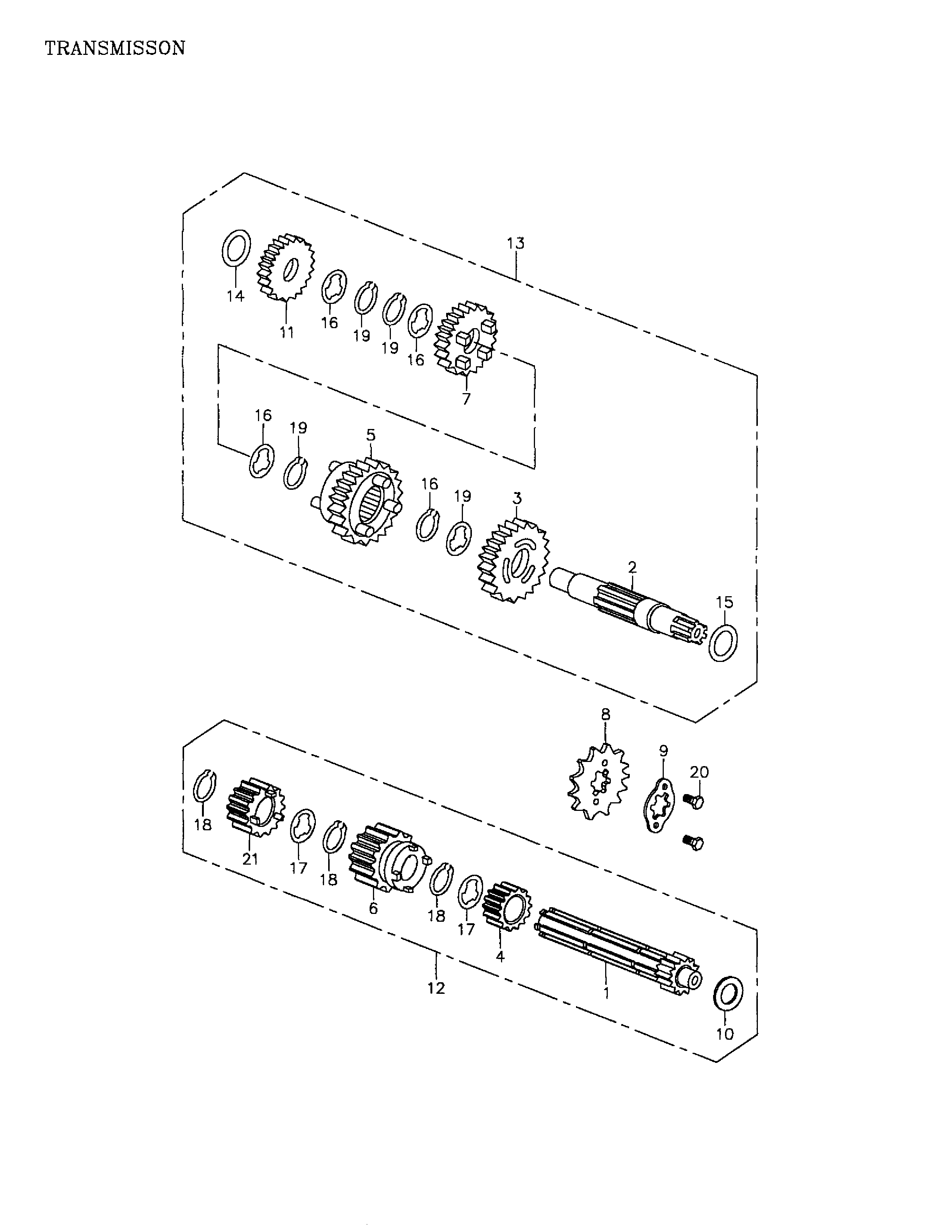

05- Transmission для BRP Mini DS 90 4-strokes - 2004
-
№АртикулНазвание
-
1A23211152000 Main ShaftMain Shaft
-
2A23221152000 Counter ShaftCounter Shaft
-
3A23421152000 C-1 GearC-1 Gear
-
4A23441152000 M-2 GearM-2 Gear
-
5A23451152000 C-2 GearC-2 Gear
-
6A23461152000 M-3 GearM-3 Gear
-
7A23471152000 C-3 GearC-3 Gear
-
8A23802152000 Drive Sprocket Ass'y (13T)Drive Sprocket Ass'y (13T)
-
9A23811152000 Drive Sprocket Fixing PlateDrive Sprocket Fixing Plate
-
10A904511426005 Thrust WasherThrust Washer
-
11A23491152000 C-4 GearC-4 Gear
-
12A23202152000 Main Shaft Ass'yMain Shaft Ass'y
-
13A23201152000 Counter Shaft Ass'yCounter Shaft Ass'y
-
14A904511426010 Thrust WasherThrust Washer
-
15A904511724005 Thrust WasherThrust Washer
-
16A904552024012 Soline WasherSoline Washer
-
17A904551721012 Soline WasherSoline Washer
-
18A945111700G External CirclipExternal Circlip
-
19A945112000S External CirclipExternal Circlip
-
20A920000600810 Hex. Bolt M6 x 8Hex. Bolt M6 x 8
-
21A23481152000 M-4 GearM-4 Gear
