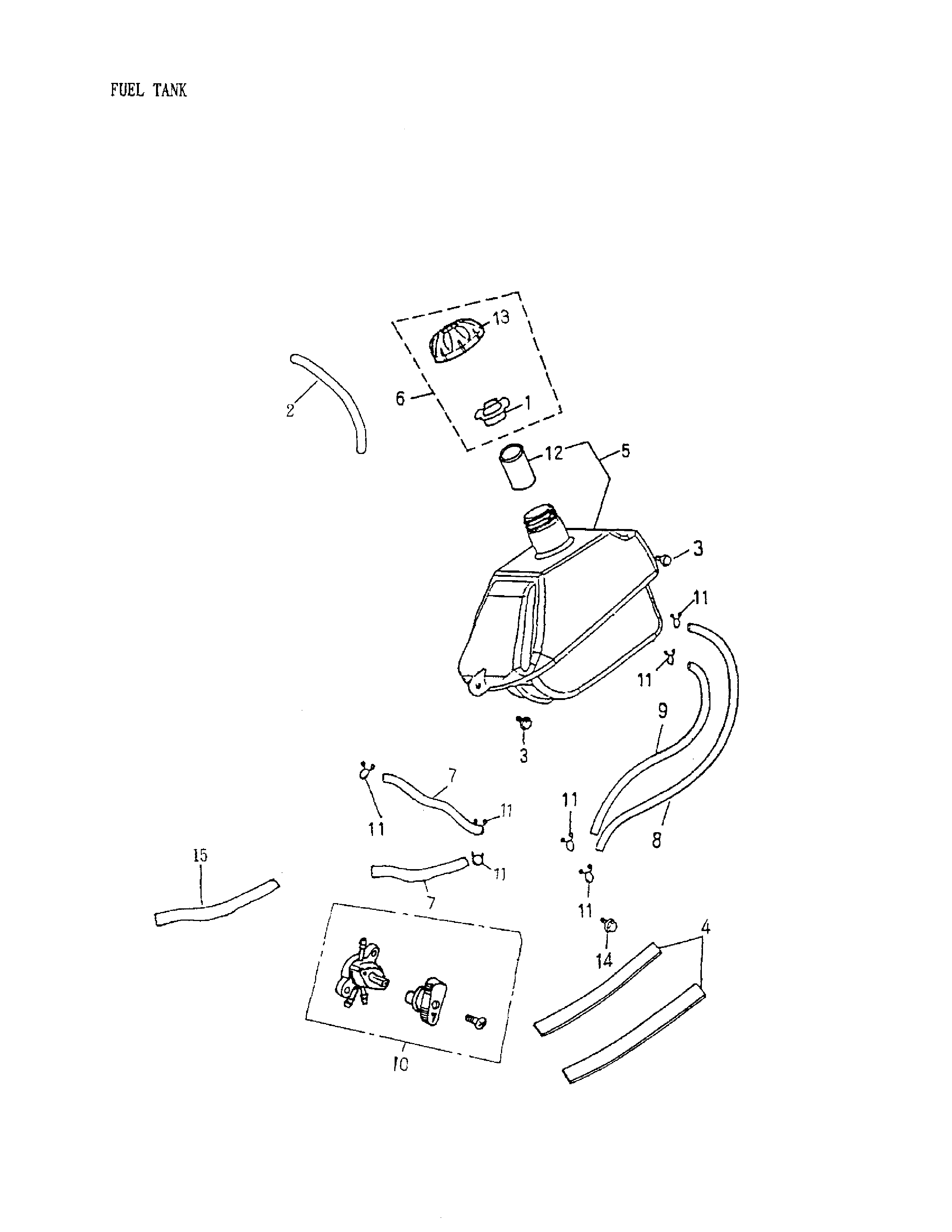

02- Fuel Tank для BRP Mini DS 90 4-strokes - 2004
-
№АртикулНазвание
-
1A17631145000 Fuel Tank Cap GasketFuel Tank Cap Gasket
-
2A944000408355 Breather HoseBreather Hose
-
3A920000601410 Hex. Bolt M6 x 14Hex. Bolt M6 x 14
-
4A1750514500A Sponge PadSponge Pad
-
5A17500155000 Fuel Tank CompFuel Tank Comp
-
6A1762014500A Fuel Tank CapFuel Tank Cap
-
7A944000408182 Fuel TubeFuel Tube
-
8A944000408300 Fuel TubeFuel Tube
-
9A944000408280 Fuel TubeFuel Tube
-
10A16950152000 Fuel CupFuel Cup
-
11A9451008000 ClipClip
-
12A17633145000 Fuel Tank TubeFuel Tank Tube
-
13A1762114500A Fuel Tank Cap BodyFuel Tank Cap Body
-
14A960000601210G Hex. Washer Face Bolt M6 x 12Hex. Washer Face Bolt M6 x 12
-
15A944020911150 Tube CoverTube Cover
