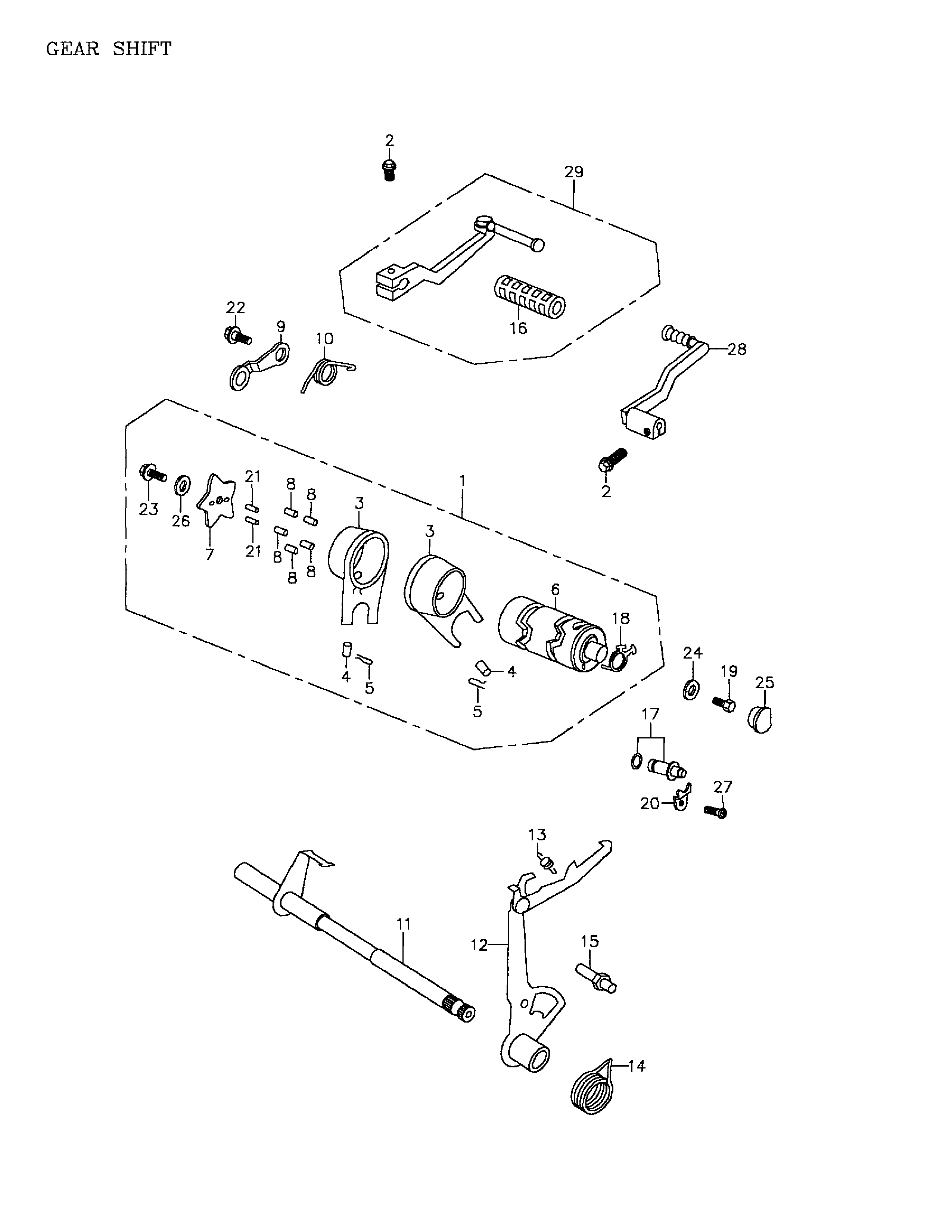

05- Gear Shift для BRP Mini DS 90 4-strokes - 2004
-
№АртикулНазвание
-
1A24300152000 Gear Shift Drum Ass'yGear Shift Drum Ass'y
-
2A960000602010 Hex. Washer Face Bolt M6 x 20Hex. Washer Face Bolt M6 x 20
-
3A24211152000 Gear Shift ForkGear Shift Fork
-
4A24261152000 Gear Shift Fork Guide PinGear Shift Fork Guide Pin
-
5A94251152000 Gear Shift Fork Guide Pin ClipGear Shift Fork Guide Pin Clip
-
6A24301152000 Gear Shift DrumGear Shift Drum
-
7A24411152000 Shift Drum Stopper PlateShift Drum Stopper Plate
-
8A24421152000 Gear Shift Drum PinGear Shift Drum Pin
-
9A24430152000 Gear Shift Drum Stopper CompGear Shift Drum Stopper Comp
-
10A24435152000 Shift Drum Stopper SpringShift Drum Stopper Spring
-
11A24611152000 Gear Shift Spindle CompGear Shift Spindle Comp
-
12A24630152000 Gear Shift ArmGear Shift Arm
-
13A24641152000 Gear Shift Arm SpringGear Shift Arm Spring
-
14A24651152000 Gear Shift Return SpringGear Shift Return Spring
-
15A24652152000 Gear Shift Return Spring PinGear Shift Return Spring Pin
-
16A28311152000 Starter RubberStarter Rubber
-
17A35750108000 Neutral Contact Switch Ass'yNeutral Contact Switch Ass'y
-
18A35753108000 Neutral Switch RotorNeutral Switch Rotor
-
19A920000601610 Hex. Bolt M6 x 16Hex. Bolt M6 x 16
-
20A35755152000 Contact Fixing PlateContact Fixing Plate
-
21A9622030085 RollerRoller
-
22A901110601416 Shaft Drum Stopper Arm PivotShaft Drum Stopper Arm Pivot
-
23A920000601810 Hex. Bolt M6 x 18Hex. Bolt M6 x 18
-
24A941010618020 Plain Washer (6 x 18 x 2)Plain Washer (6 x 18 x 2)
-
25A96421152000 Rubber CapRubber Cap
-
26A941010618012 Plain WasherPlain Washer
-
27A9350006012 Pan Head Phillips Bolt M6 x 1Pan Head Phillips Bolt M6 x 1
-
28A24701152001 Gear Shaft Pedal CompGear Shaft Pedal Comp
-
29A28300152000 Pull Starter Arm Ass'yPull Starter Arm Ass'y
