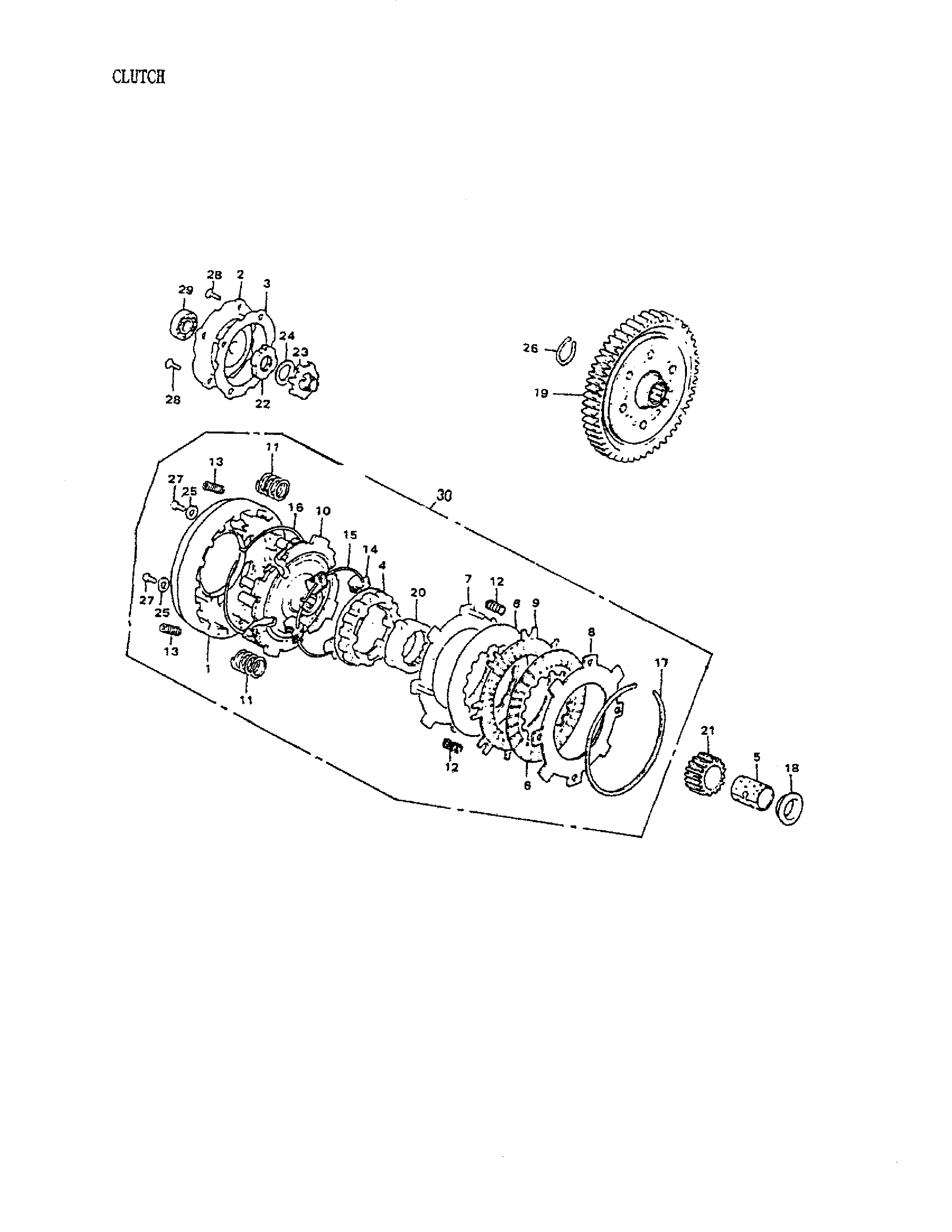

05- Clutch для BRP Mini DS 90 4-strokes - 2004
-
№АртикулНазвание
-
1A22100152000 Clutch Outer CompClutch Outer Comp
-
2A22111152000 Clutch Outer CoverClutch Outer Cover
-
3A22119152000 Clutch Outer Cover GasketClutch Outer Cover Gasket
-
4A22121152000 Clutch CenterClutch Center
-
5A22125152000 Clutch Center GuideClutch Center Guide
-
6A22201152000 Clutch Friction Disk AClutch Friction Disk A
-
7A22311152000 Clutch Plate AClutch Plate A
-
8A22321152000 Clutch Plate BClutch Plate B
-
9A22211152000 Clutch Friction Disk BClutch Friction Disk B
-
10A22350152000 Drive PlateDrive Plate
-
11A22401152000 Clutch SpringClutch Spring
-
12A22411152000 Clutch Free SpringClutch Free Spring
-
13A22421152000 Clutch Damper SpringClutch Damper Spring
-
14A22531152000 Clutch WeightClutch Weight
-
15A22535152000 Clutch Weight Center RingClutch Weight Center Ring
-
16A22536152000 Clutch Weight Scropper RingClutch Weight Scropper Ring
-
17A22901152000 Set RingSet Ring
-
18A96401172808 CollarCollar
-
19A23110152000 Primary Drive GearPrimary Drive Gear
-
20A23112152000 Driven Gear OuterDriven Gear Outer
-
21A23121152000 Primary Drive GearPrimary Drive Gear
-
22A9407114000 Spaner Nut M14Spaner Nut M14
-
23A15451152000 Lock Washer M14Lock Washer M14
-
24A94113142412 Lock WasherLock Washer
-
25A941010514015 Stopper WasherStopper Washer
-
26A945111700S External CirclipExternal Circlip
-
27A9350005010 Pan Head Phillips Bolt M5 x 10Pan Head Phillips Bolt M5 x 10
-
28A9390205010 Flat Head Phillips Bolt. M5 x 10Flat Head Phillips Bolt. M5 x 10
-
29A9610060000 Radial Ball Bearing (6000)Radial Ball Bearing (6000)
-
30A22103152000 Clutch Ass'yClutch Ass'y
