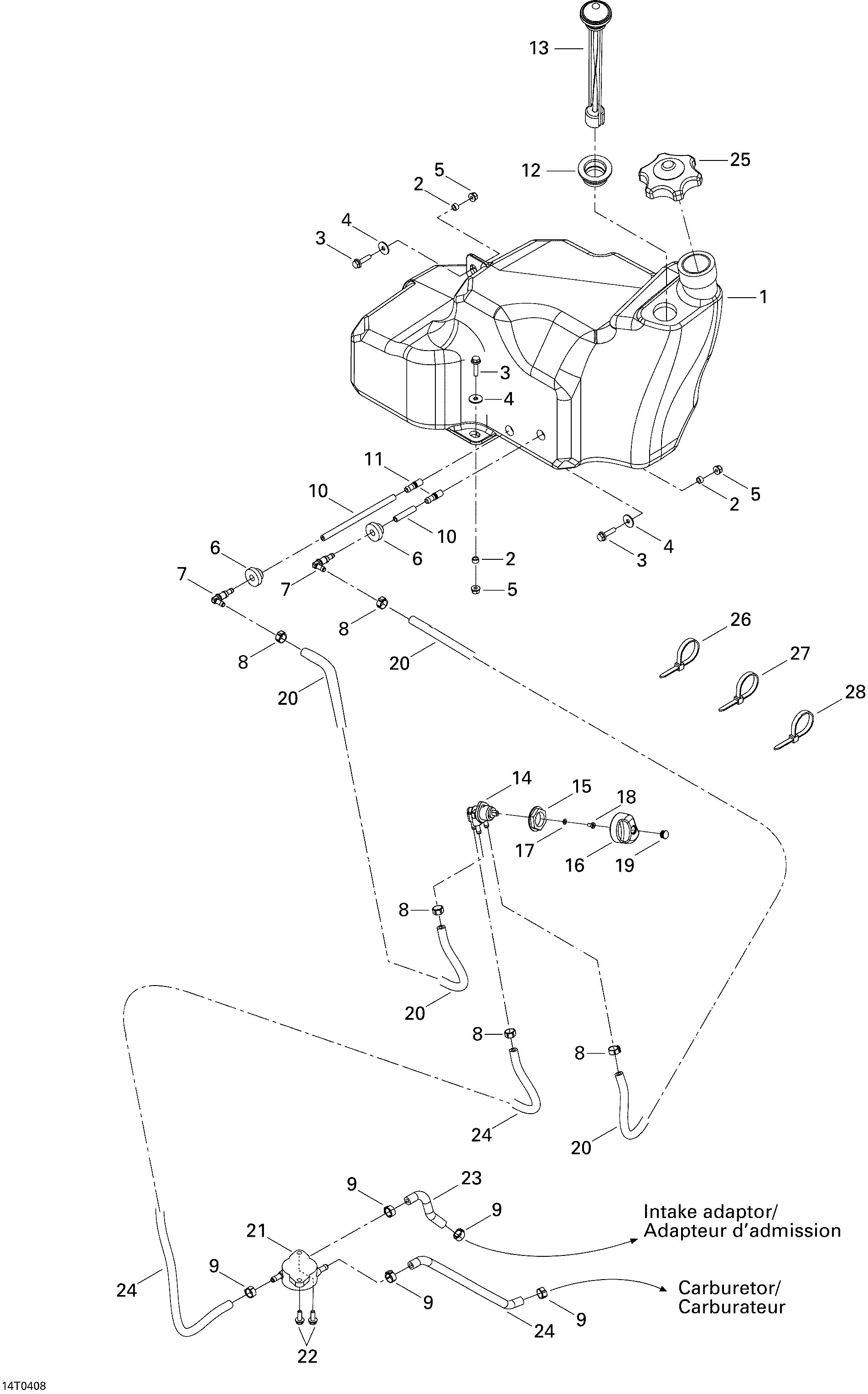

02- Fuel System для BRP Outlander MAX 400 - 2004
-
№АртикулНазвание
-
1709000062 Fuel TankFuel Tank
-
2293900029 BushingBushing
-
3207662544 Hex Flanged Screw M6 X25Hex Flanged Screw M6 X25
-
4391302000 Flat WasherFlat Washer
-
5233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
6570045500 GrommetGrommet
-
7414580600 Elbow Male ConnectorElbow Male Connector
-
8293650042 Oetiker ClampOetiker Clamp
-
9414415200 Universal Spring ClampUniversal Spring Clamp
-
10709000073 Line FuelLine Fuel
-
11414865700 Fuel FilterFuel Filter
-
12293720058 GrommetGrommet
-
13709000083 Fuel GaugeFuel Gauge
-
14275500098 Fuel ValveFuel Valve
-
15212100009 Hex Plastic NutHex Plastic Nut
-
16275500263 Fuel Valve KnobFuel Valve Knob
-
17234040600 Flat Washer 4 mmFlat Washer 4 mm
-
18208640860 Pan Head Phillips Screw M4 X 8Pan Head Phillips Screw M4 X 8
-
19275500241 Fuel Valve Cap PlugFuel Valve Cap Plug
-
20415079800 Hose 1/4''Hose 1/4''
-
21707200183 Fuel PumpFuel Pump
-
22210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
23709000063 Pulsation Formed HosePulsation Formed Hose
-
24415079800 Hose 1/4''Hose 1/4''
-
25709000059 Fuel CapFuel Cap
-
26414115200 Tie-RapTie-Rap
-
27293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
28293750009 Tie-Rap 160 mmTie-Rap 160 mm
