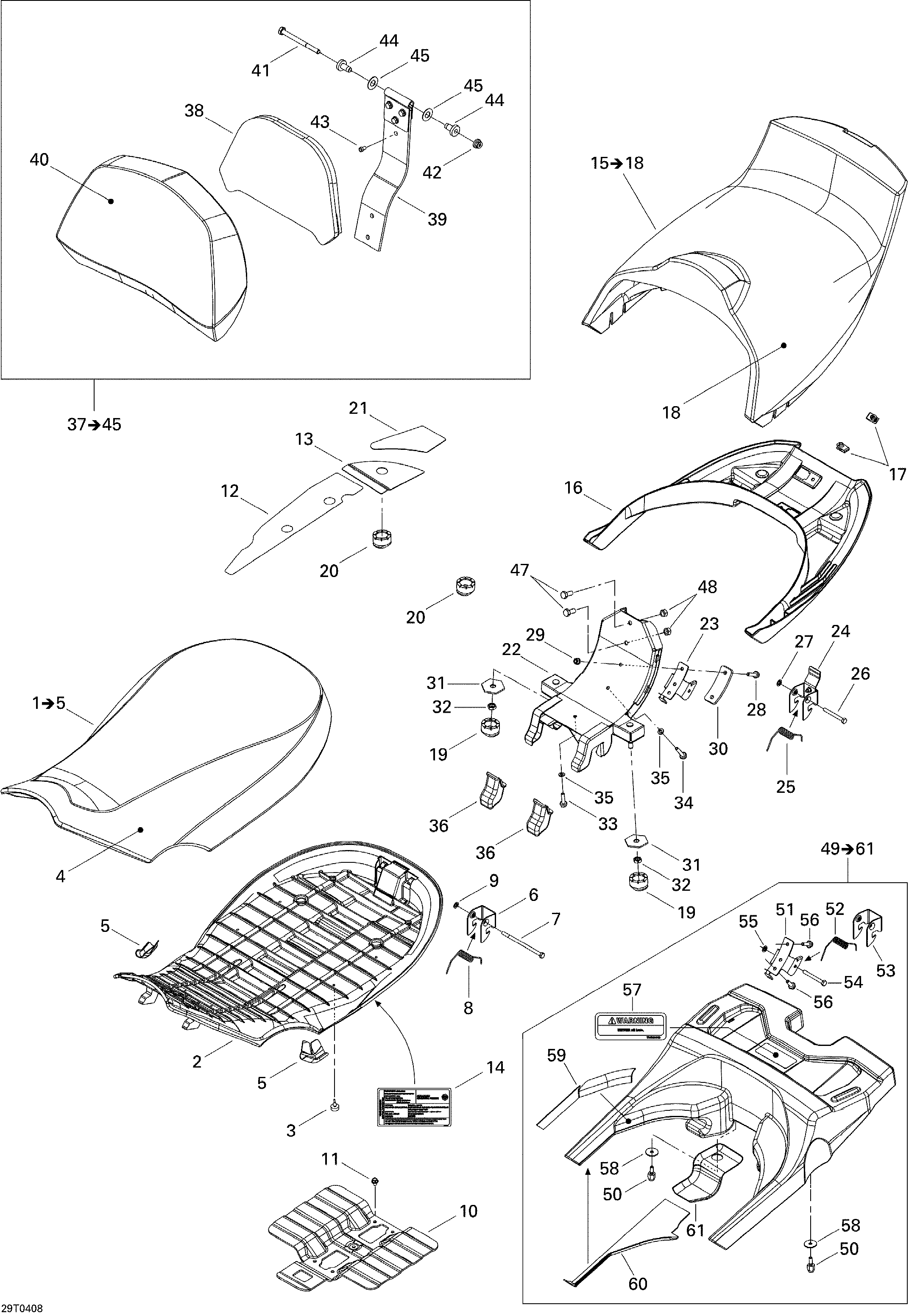

09- Seat для BRP Outlander MAX 400 - 2004
-
№АртикулНазвание
-
1708000324 Seat Ass'Y. Includes 1 to 5Seat Ass'Y. Includes 1 to 5
-
3708000125 Rubber StopperRubber Stopper
-
4708000327 Seat CoverSeat Cover
-
5708000199 Seat CornerSeat Corner
-
6708000144 Latch, BlackLatch, Black
-
7230061060 Hex Screw M6 X 110Hex Screw M6 X 110
-
8708000369 SpringSpring
-
9732610072 Push NutPush Nut
-
10708000263 Seat ReinforcementSeat Reinforcement
-
11210261080 Hex Flanged Forming Screw M6 X 10Hex Flanged Forming Screw M6 X 10
-
12708000198 Reflecting SheetReflecting Sheet
-
13708000322 Reflecting SheetReflecting Sheet
-
14704900661 Emission LabelEmission Label
-
15708000264 Rear Seat Ass'Y. Includes 15 to 18Rear Seat Ass'Y. Includes 15 to 18
-
17250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
18708000267 Seat CoverSeat Cover
-
19708000323 Rubber BumperRubber Bumper
-
20708000323 Rubber BumperRubber Bumper
-
21708000268 Reflecting SheetReflecting Sheet
-
22708000305 Seat ReinforcementSeat Reinforcement
-
23708000309 Lock Support, BlackLock Support, Black
-
24708000398 LatchLatch
-
25708000369 SpringSpring
-
26207065544 Hex Cap Screw M6 X 55Hex Cap Screw M6 X 55
-
27732610072 Push NutPush Nut
-
28207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
29233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
30708000351 PlatePlate
-
31708000350 Adjuster StopperAdjuster Stopper
-
32732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
33207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
34207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
35234161471 Lock Washer M6, BlackLock Washer M6, Black
-
36708000343 ProtectorProtector
-
37708000269 Backrest Ass'Y. Includes 37 to 45Backrest Ass'Y. Includes 37 to 45
-
40708000297 Backrest CoverBackrest Cover
-
41207089544 Hex Screw M8 X 95Hex Screw M8 X 95
-
42233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
43293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
45706200281 Hardened WasherHardened Washer
-
47207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
48233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
49703000007 Removable Luggage Rack Kit. Includes 49 to 61Removable Luggage Rack Kit. Includes 49 to 61
-
51708000309 Lock Support, BlackLock Support, Black
-
52708000369 SpringSpring
-
53708000144 Latch, BlackLatch, Black
-
54207065544 Hex Cap Screw M6 X 55Hex Cap Screw M6 X 55
-
55732610072 Push NutPush Nut
-
56207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
57704900446 Warning Label, Never Sit HereWarning Label, Never Sit Here
-
58224060251 WasherWasher
-
59705001452 Reflecting SheetReflecting Sheet
-
60705001453 Reflecting SheetReflecting Sheet
-
61705001454 Reflecting SheetReflecting Sheet
