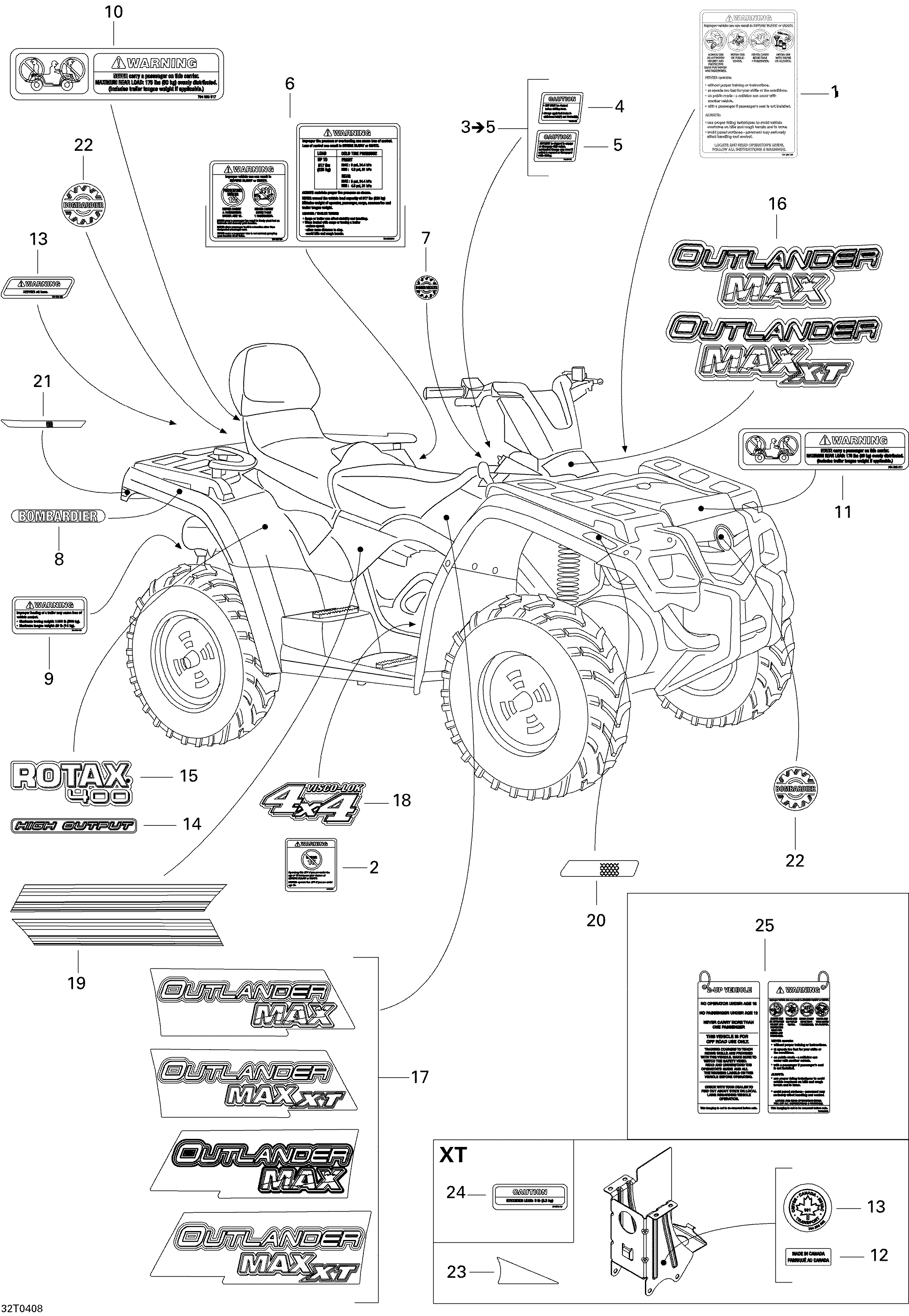

09- Decals для BRP Outlander MAX 400 - 2004
-
№АртикулНазвание
-
1704900785 Warning LabelWarning Label
-
2704900642 Warning LabelWarning Label
-
3704900434 Dash-Board Decal Ass'Y. Includes Items 3 to 5Dash-Board Decal Ass'Y. Includes Items 3 to 5
-
4704900470 Warning Label (Transmission Selector)Warning Label (Transmission Selector)
-
5704900471 Warning Label (4/Wd Switch)Warning Label (4/Wd Switch)
-
6704900643 Warning LabelWarning Label
-
7204900626 Bombardier Logo 35 mmBombardier Logo 35 mm
-
8704900076 Bombardier LabelBombardier Label
-
9704900009 Warning Label (Hitch)Warning Label (Hitch)
-
10704900517 Warning LabelWarning Label
-
11704900453 Warning LabelWarning Label
-
12704900267 Canada DecalCanada Decal
-
13704900032 Leaf DecalLeaf Decal
-
14704900520 Output DecalOutput Decal
-
15704900422 Rotax Decal 400. RedRotax Decal 400. Red
-
15704900488 Rotax Decal 400. GreenRotax Decal 400. Green
-
15704900598 Rotax Decal 400. YellowRotax Decal 400. Yellow
-
16704900672 Console Decal. Red STDConsole Decal. Red STD
-
16704900673 Console Decal. Green STDConsole Decal. Green STD
-
16704900675 Console Decal. Red XTConsole Decal. Red XT
-
16704900676 Console Decal. Green XTConsole Decal. Green XT
-
16704900677 Console Decal. Yellow XTConsole Decal. Yellow XT
-
17704900679 LH. Decal. Red STDLH. Decal. Red STD
-
17704900680 LH. Decal. Green STDLH. Decal. Green STD
-
17704900682 LH. Decal. Red XTLH. Decal. Red XT
-
17704900683 LH. Decal. Green XTLH. Decal. Green XT
-
17704900684 LH. Decal. Yellow XTLH. Decal. Yellow XT
-
17704900686 RH. Decal. Red STDRH. Decal. Red STD
-
17704900687 RH. Decal. Green STDRH. Decal. Green STD
-
17704900689 RH. Decal. Red XTRH. Decal. Red XT
-
17704900690 RH. Decal. Green XTRH. Decal. Green XT
-
17704900691 RH. Decal. Yellow XTRH. Decal. Yellow XT
-
18704900426 Decal. RedDecal. Red
-
18704900492 Decal. GreenDecal. Green
-
18704900603 Decal. YellowDecal. Yellow
-
19704900695 LH Rear Lateral Decal. Red STDLH Rear Lateral Decal. Red STD
-
19704900695 LH Rear Lateral Decal. Red XTLH Rear Lateral Decal. Red XT
-
19704900697 LH Rear Lateral Decal. Green STDLH Rear Lateral Decal. Green STD
-
19704900697 LH Rear Lateral Decal. Green XTLH Rear Lateral Decal. Green XT
-
19704900699 LH Rear Lateral Decal. Yellow XTLH Rear Lateral Decal. Yellow XT
-
19704900696 RH Rear Lateral Decal. Red STDRH Rear Lateral Decal. Red STD
-
19704900696 RH Rear Lateral Decal. Red XTRH Rear Lateral Decal. Red XT
-
19704900698 RH Rear Lateral Decal. Green STDRH Rear Lateral Decal. Green STD
-
19704900698 RH Rear Lateral Decal. Green XTRH Rear Lateral Decal. Green XT
-
19704900700 RH Rear Lateral Decal. Yellow XTRH Rear Lateral Decal. Yellow XT
-
20704900428 RH Front ReflectorRH Front Reflector
-
20704900429 LH Front ReflectorLH Front Reflector
-
21704900430 RH Rear ReflectorRH Rear Reflector
-
21704900431 LH Rear ReflectorLH Rear Reflector
-
22704900130 Bombardier Logo 68 mmBombardier Logo 68 mm
-
23704900493 C.V.T. DecalC.V.T. Decal
-
24704900717 Caution Decal, Maximum Load. XTCaution Decal, Maximum Load. XT
-
25704900783 Warning LabelWarning Label
