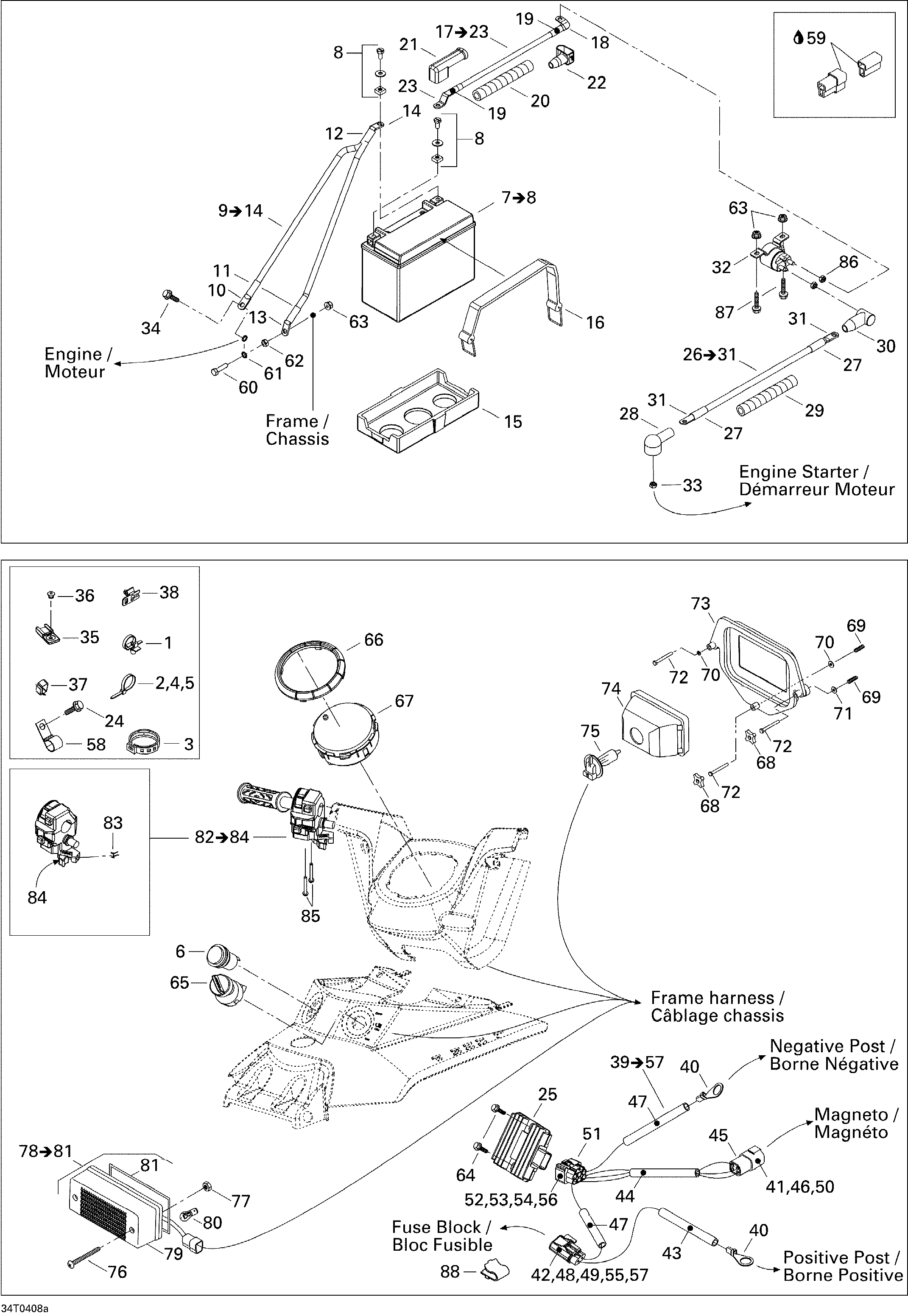

10- Battery and Accessories для BRP Outlander MAX 400 - 2004
-
№АртикулНазвание
-
1293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
2293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
3293650100 Oetiker ClampOetiker Clamp
-
4414115200 Tie-RapTie-Rap
-
5293750008 Tie-Rap 350 mm. XTTie-Rap 350 mm. XT
-
293750008 Tie-Rap 350 mm. STDTie-Rap 350 mm. STD
-
6861507200 Outlet (12 Volts)Outlet (12 Volts)
-
7515175642 Battery 18 Amperes. Includes items 7 to 8Battery 18 Amperes. Includes items 7 to 8
-
8295500849 Battery Fastener KitBattery Fastener Kit
-
9710000458 Ground Cable (Frame/Engine). Includes items 9 to 14Ground Cable (Frame/Engine). Includes items 9 to 14
-
10710000479 Flat Open Baril 6.6 mmFlat Open Baril 6.6 mm
-
11710000483 Shrink TubingShrink Tubing
-
12275500578 Shrink TubingShrink Tubing
-
13710000540 Open BarilOpen Baril
-
14710000539 Open BarilOpen Baril
-
15710000279 Insulator PadInsulator Pad
-
16293850080 Rubber StrapRubber Strap
-
17710000520 Positive Cable (Battery/Solenoid). Includes items 17 to 23Positive Cable (Battery/Solenoid). Includes items 17 to 23
-
18710000475 Open Baril 6.6 mmOpen Baril 6.6 mm
-
19710000483 Shrink TubingShrink Tubing
-
20710000497 Protector Tube 9 mmProtector Tube 9 mm
-
21710000516 Protector CapProtector Cap
-
22710000523 Protector CapProtector Cap
-
23710000518 Open BarilOpen Baril
-
24210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
25710000908 Volt Regulator. For replacement, refer to service bulletin 2005-5Volt Regulator. For replacement, refer to service bulletin 2005-5
-
26710000459 Positive Cable. Includes items 26 to 31Positive Cable. Includes items 26 to 31
-
27710000483 Shrink TubingShrink Tubing
-
28710000496 Protector CapProtector Cap
-
29710000497 Protector Tube 9 mmProtector Tube 9 mm
-
30710000526 Protector CapProtector Cap
-
31710000530 TerminalTerminal
-
32515176011 Starter RelayStarter Relay
-
33232561600 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
34207561644 Hex Flanged Screw M6 X 16 (Scotch Grip)Hex Flanged Screw M6 X 16 (Scotch Grip)
-
35270000141 ClipClip
-
36390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
37414227300 ClipClip
-
38515175283 Housing SupportHousing Support
-
39710000678 Wiring Harness Ext.. Includes items 39 to 57Wiring Harness Ext.. Includes items 39 to 57
-
40278001392 Open BarrelOpen Barrel
-
41293000052 Sealing CapSealing Cap
-
42410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
43515175442 Tubing 6 mmTubing 6 mm
-
44409901700 Tubing 9 mmTubing 9 mm
-
45278001477 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
46515175568 Male TerminalMale Terminal
-
47710000244 Protector Tube 4 mmProtector Tube 4 mm
-
48278001326 Fuse Holder CapFuse Holder Cap
-
49278001325 Fuse HolderFuse Holder
-
50278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
51710000336 Male Terminal Housing (6 Circuits)Male Terminal Housing (6 Circuits)
-
52710000337 Joint SealJoint Seal
-
53710000339 Secondary LockSecondary Lock
-
54710000343 CapCap
-
55278000805 CushionCushion
-
56710000356 Female TerminalFemale Terminal
-
57710000357 Female TerminalFemale Terminal
-
58705600311 ClampClamp
-
59293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
60207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
61234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
62232061414 Hex Nut M6Hex Nut M6
-
63233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
64210262080 Hex Forming ScrewHex Forming Screw
-
65710000238 Ignition SwitchIgnition Switch
-
65715900019 Blank KeyBlank Key
-
66710000353 Trim RingTrim Ring
-
67710000694 SpeedometerSpeedometer
-
68572106600 HandleHandle
-
69710000285 SpringSpring
-
70234042600 Flat Washer 4 mmFlat Washer 4 mm
-
71234040600 Flat Washer 4 mmFlat Washer 4 mm
-
72250000008 Hex Screw K40 X 40Hex Screw K40 X 40
-
73710000236 RH Headlight SupportRH Headlight Support
-
710000277 LH Headlight SupportLH Headlight Support
-
74705000284 Lamp HousingLamp Housing
-
75710000176 BulbBulb
-
76208656091 Pan Head Phillips Screw M5 X 60Pan Head Phillips Screw M5 X 60
-
77233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
78710000102 Tail Light Housing. Includes items 78 to 81Tail Light Housing. Includes items 78 to 81
-
79710000055 Tail Light LensTail Light Lens
-
80410504100 Tail Light BulbTail Light Bulb
-
81710000129 GasketGasket
-
82710000311 Multi-Fonction Handle. Includes items 82 to 84Multi-Fonction Handle. Includes items 82 to 84
-
83710000631 ClipClip
-
84710000632 Choke LeverChoke Lever
-
85205053588 Socket Screw M5 X 35Socket Screw M5 X 35
-
86232561414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
87207661644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
88409205600 ClipClip
