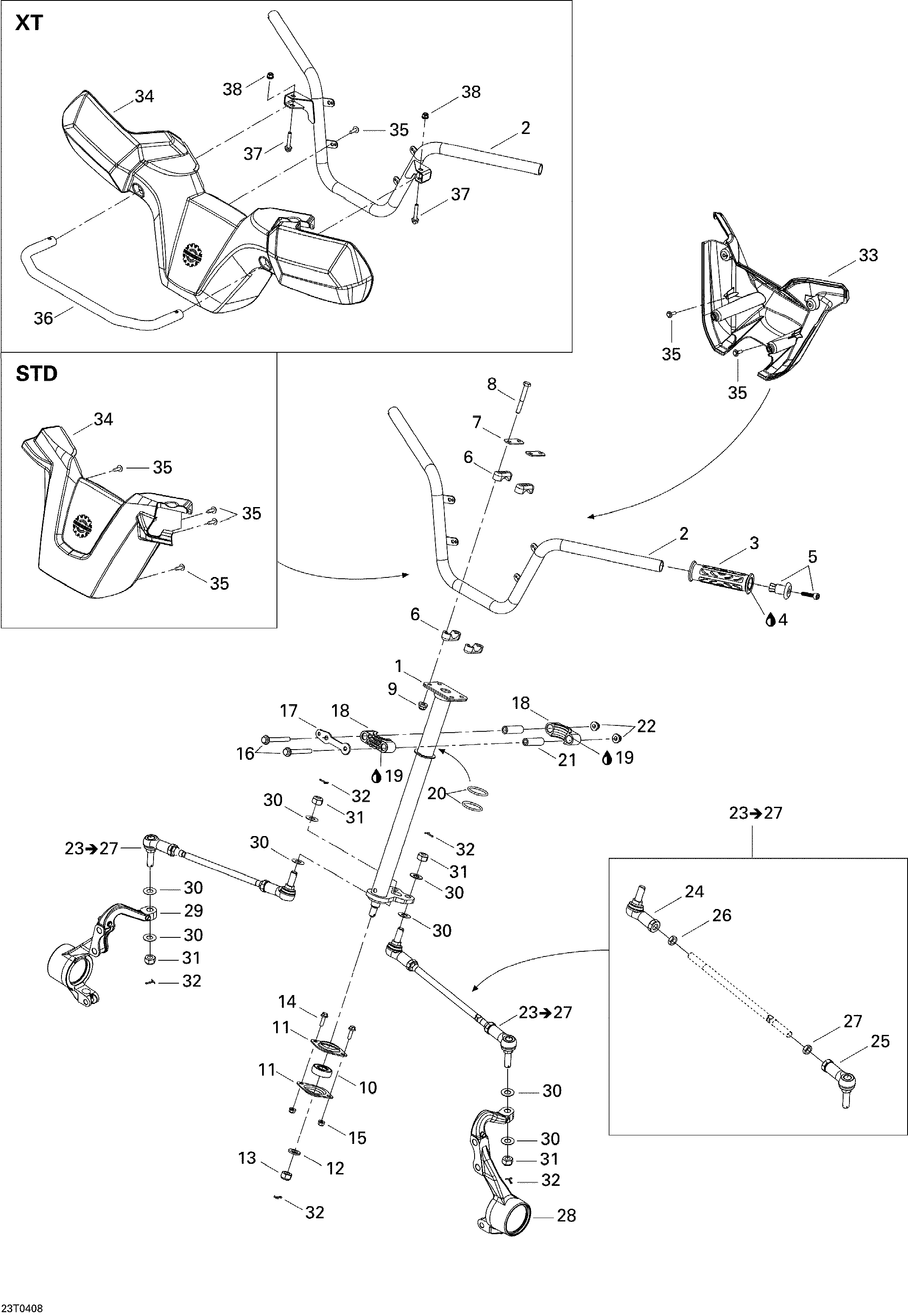

07- Steering System для BRP Outlander MAX 400 - 2004
-
№АртикулНазвание
-
1709400237 Main TubeMain Tube
-
2709400138 Handle Bar. STDHandle Bar. STD
-
2709400251 Handle Bar. XTHandle Bar. XT
-
3709400157 Hand GripHand Grip
-
4293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
5709400189 End PieceEnd Piece
-
6506151622 Steering SupportSteering Support
-
7506151196 ReinforcementReinforcement
-
8207086044 Hex Screw M8 X 60Hex Screw M8 X 60
-
9233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
10709400224 Thrust BearingThrust Bearing
-
11709400152 Thrust WasherThrust Washer
-
12234021410 Flat Washer 12 mmFlat Washer 12 mm
-
13250000047 Hex Flanged Elastic Nut M12Hex Flanged Elastic Nut M12
-
14207562044 Hex Flanged Screw M6 X 20 (Scotch Grip)Hex Flanged Screw M6 X 20 (Scotch Grip)
-
15233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
16207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
17709400053 Stopper PlateStopper Plate
-
18709400052 Half BushingHalf Bushing
-
19293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
20293300068 O-RingO-Ring
-
21709400072 BushingBushing
-
22233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
23709400190 Tie Rod Ass'YTie Rod Ass'Y
-
24709400195 RH Ball JointRH Ball Joint
-
25709400196 LH Ball JointLH Ball Joint
-
26732610019 RH Hex Jam Nut M12RH Hex Jam Nut M12
-
27732610020 LH Hex Jam Nut M12LH Hex Jam Nut M12
-
28709400132 LH Knuckle. 4X4LH Knuckle. 4X4
-
29709400133 RH Knuckle. 4X4RH Knuckle. 4X4
-
30706200281 Hard WasherHard Washer
-
31250100045 Nut M12Nut M12
-
32211400013 Cotter PinCotter Pin
-
33709400204 Rear Steering CoverRear Steering Cover
-
34709400205 Front Steering Cover. STDFront Steering Cover. STD
-
34709400234 Handlebar protector. XTHandlebar protector. XT
-
35243141640 Hex Flanged Plastite Screw M4.8 X 16. STDHex Flanged Plastite Screw M4.8 X 16. STD
-
35243141640 Hex Flanged Plastite Screw M4.8 X 16. XTHex Flanged Plastite Screw M4.8 X 16. XT
-
36709400246 Accessories Support. XT&CAMOAccessories Support. XT&CAMO
-
36709400256 Accessories Support. XT&COULEURAccessories Support. XT&COULEUR
-
36709400256 Accessories Support. XT&VERT-GRESAccessories Support. XT&VERT-GRES
-
37207663544 Hex Flanged Screw M6 X 35. XTHex Flanged Screw M6 X 35. XT
-
38233261414 Hex Flanged Elastic Nut M6. XTHex Flanged Elastic Nut M6. XT
