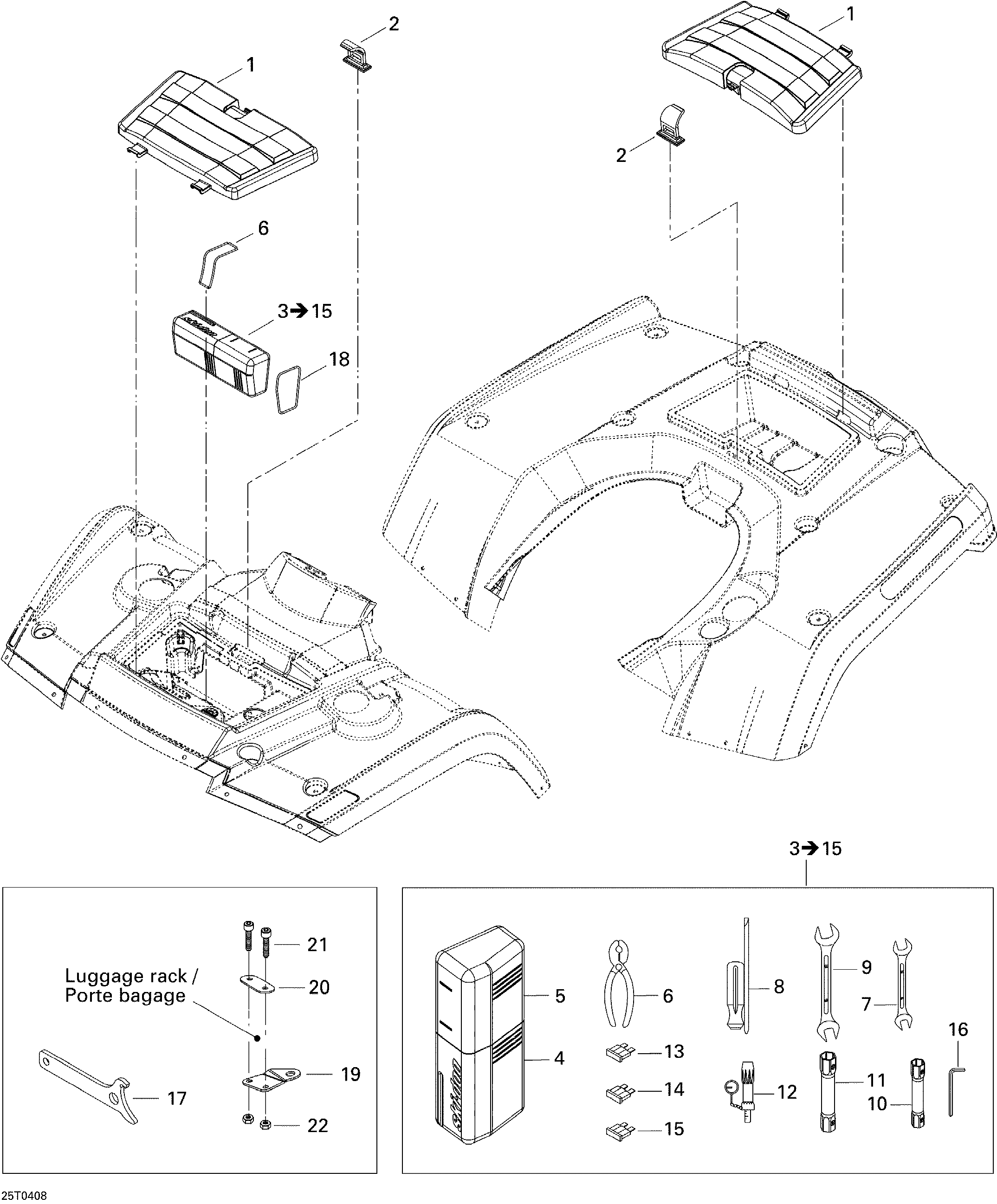

09- Front And Rear Trays для BRP Outlander MAX 400 - 2004
-
№АртикулНазвание
-
1708200017 Storage CoverStorage Cover
-
2708200003 Cover LatchCover Latch
-
3704700086 Tool KitTool Kit
-
4708200041 Tool BoxTool Box
-
5572036400 Box CoverBox Cover
-
7529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
8529000004 Driver ScrewDriver Screw
-
9529000003 Fork Wrench 15/17 mmFork Wrench 15/17 mm
-
10529014900 Socket WrenchSocket Wrench
-
11295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
12704700003 Pressure GaugePressure Gauge
-
13410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
14409003900 Fuse (20 Amperes)Fuse (20 Amperes)
-
15278000343 Fuse (15 Amperes)Fuse (15 Amperes)
-
16529035781 Key Allen 3 mmKey Allen 3 mm
-
17529032900 Adjustment WrenchAdjustment Wrench
-
18293300101 O-RingO-Ring
-
19705000729 Flag SupportFlag Support
-
20705000730 PlatePlate
-
21205484596 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
22232581414 Hex Elastic Nut M8Hex Elastic Nut M8
