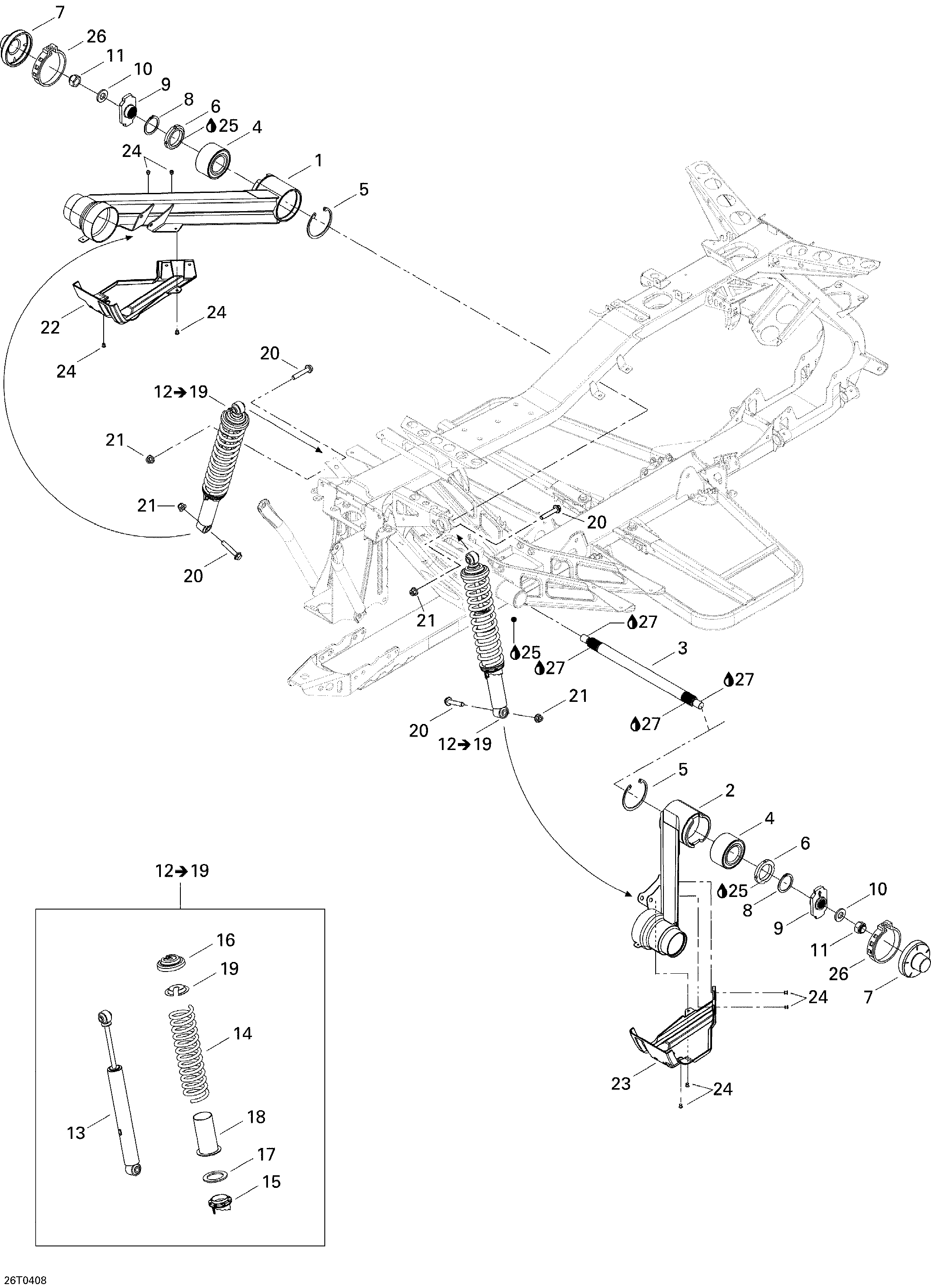

08- Rear Suspension для BRP Outlander MAX 400 - 2004
-
№АртикулНазвание
-
1706000318 LH Swing ArmLH Swing Arm
-
2706000320 RH Swing ArmRH Swing Arm
-
3706000216 Sway BarSway Bar
-
4293350037 Ball BearingBall Bearing
-
5293370041 CirclipCirclip
-
6706000221 Clinch NutClinch Nut
-
7706000222 CoverCover
-
8293370027 Circlip 45 mmCirclip 45 mm
-
9706000224 LeverLever
-
10250200045 WasherWasher
-
11232591414 Hex Elastic Nut M18Hex Elastic Nut M18
-
13706000287 Rear ShockRear Shock
-
14706000261 Rear springRear spring
-
15706000294 Ring adjusterRing adjuster
-
16503140600 Spring StopperSpring Stopper
-
17706000335 Spring SeatSpring Seat
-
18503190436 ProtectorProtector
-
19503141600 CapCap
-
20207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
21233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
22706000170 LH ProtectorLH Protector
-
23706000171 RH ProtectorRH Protector
-
24293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
25293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
26293650162 Oetiker ClampOetiker Clamp
-
27293800005 Loctite 271, 10 mlLoctite 271, 10 ml
