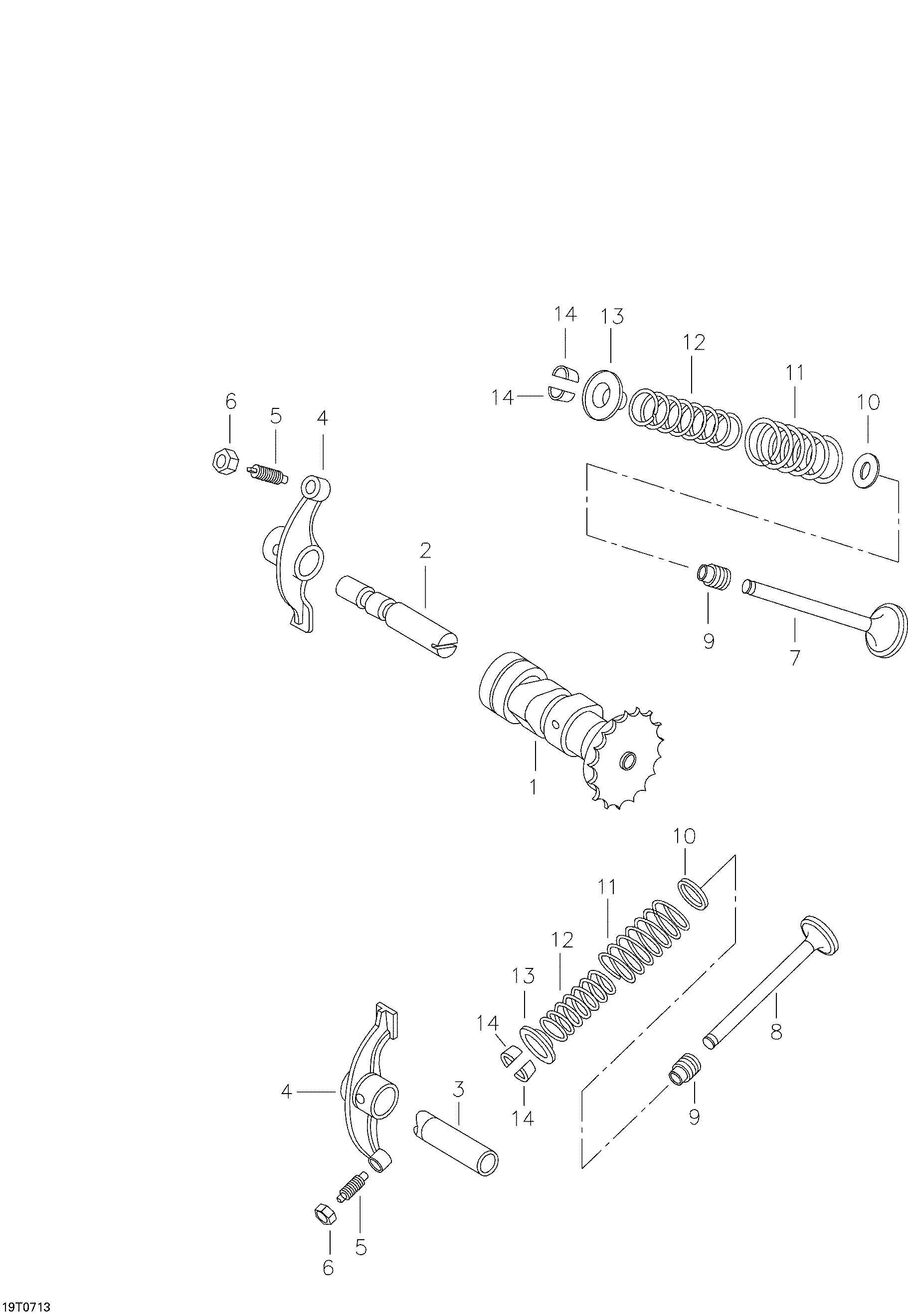

01- Camshaft, Valve для BRP Mini DS 90 4-strokes - 2007
-
№АртикулНазвание
-
1A14100175000 Camshaft CompCamshaft Comp
-
2A14452133000 Rocker Arm ShaftRocker Arm Shaft
-
3A14453133000 Rocker Arm Shaft Ext.Rocker Arm Shaft Ext.
-
4A14431133000 Valve Rocker ArmValve Rocker Arm
-
5A90012120000 Valve Gap Adjusting ScrewValve Gap Adjusting Screw
-
6A90206120000 Valve Gap Adjusting NutValve Gap Adjusting Nut
-
7A14711175000 Valve In.Valve In.
-
8A14721175000 Valve Ex.Valve Ex.
-
9A12209120000 Valve Stem SealValve Stem Seal
-
10A14775120000 Valve Spring SeatValve Spring Seat
-
11A14751133000 Spring Valve OuterSpring Valve Outer
-
12A14761133000 Spring Valve In.Spring Valve In.
-
13A14771120000 Retainer Valve SpringRetainer Valve Spring
-
14A14781120000 CotterCotter
