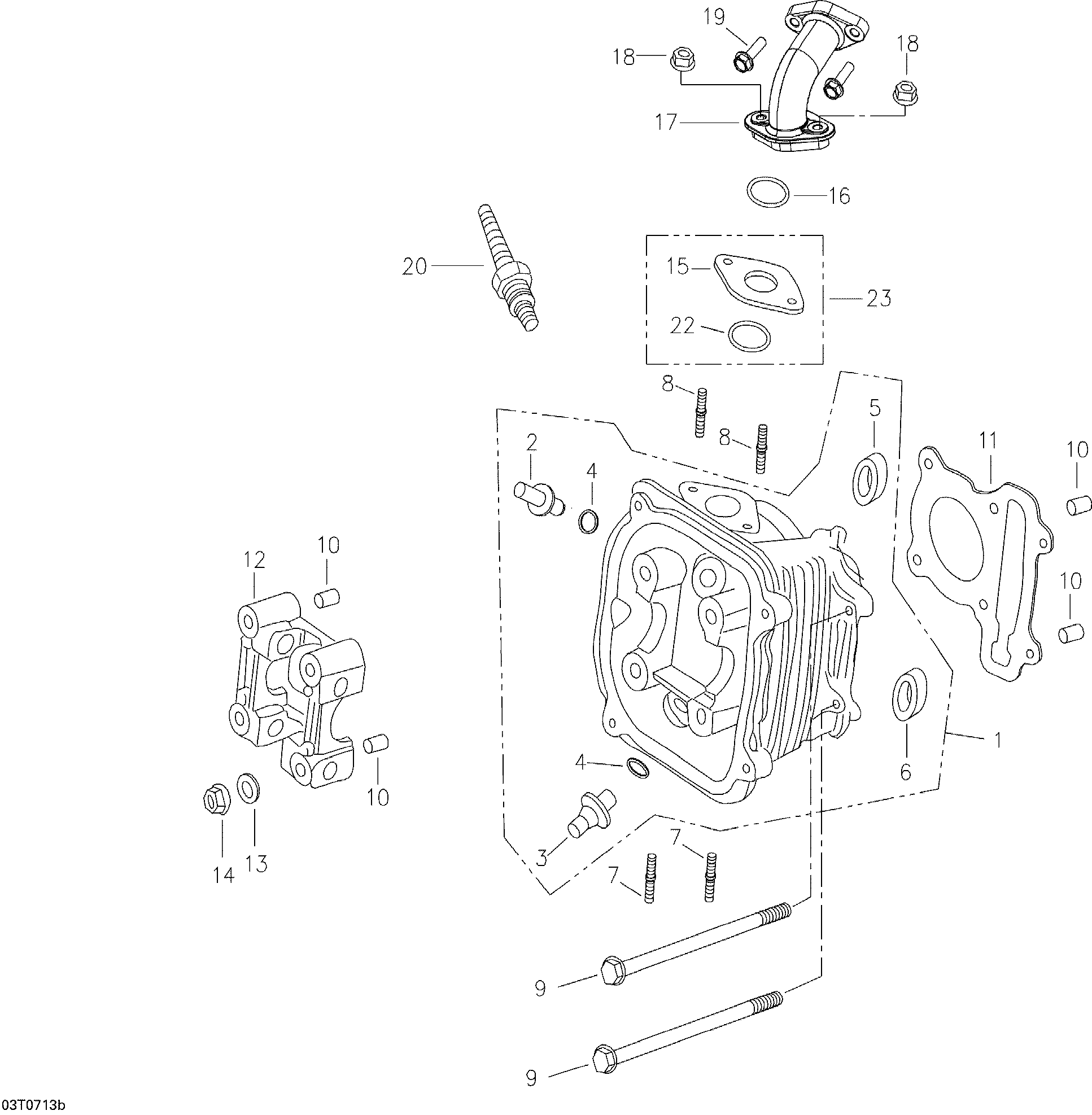

01- Cylinder Head для BRP Mini DS 90 4-strokes - 2007
-
№АртикулНазвание
-
1A12201175000 Cylinder Head. Includes 1 to 6Cylinder Head. Includes 1 to 6
-
2A12204175000 Valve GuideValve Guide
-
3A12206175000 Valve Guide Ex.Valve Guide Ex.
-
4A9130912000A Oil-RingOil-Ring
-
5A12225175000 Seat Intake ValveSeat Intake Valve
-
6A12226175000 Seat Exhaust ValveSeat Exhaust Valve
-
7A9100106032 Stud Bolt M6 X 32Stud Bolt M6 X 32
-
8A9100106040 Stud BoltStud Bolt
-
9A960000608508 Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
10A9430108140A Dowel PinDowel Pin
-
11A12251175000 Cylinder Head GasketCylinder Head Gasket
-
12A12211133000 Camshaft HolderCamshaft Holder
-
13A941010714025 Washer FlatWasher Flat
-
14A9405007000 Hex Flanged Nut With Serration M7Hex Flanged Nut With Serration M7
-
16A91322175000 Oil RingOil Ring
-
17A1710017500A Intake ManifoldIntake Manifold
-
18233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
19207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
20219700195 Spark Plug (NGK CR7HS)Spark Plug (NGK CR7HS)
-
23A16239175000 Carburetor Insulator Ass'y. Includes items 15 and 22Carburetor Insulator Ass'y. Includes items 15 and 22
