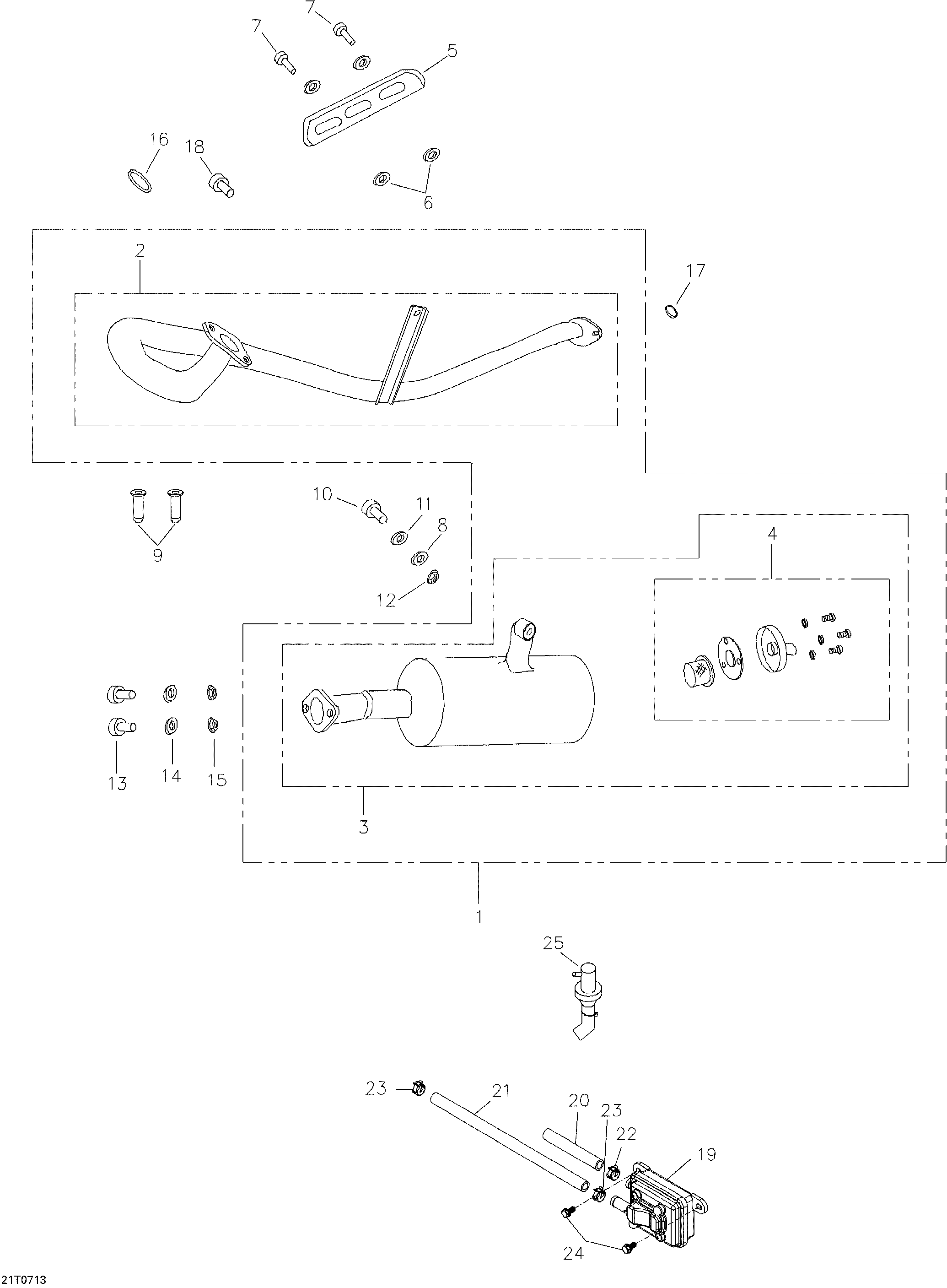

01- Exhaust System для BRP Mini DS 90 4-strokes - 2007
-
№АртикулНазвание
-
2A1831123800A Front Exhaust PipeFront Exhaust Pipe
-
3A18321238000 Muffler. Includes 3 to 4Muffler. Includes 3 to 4
-
4A18330152000 Spark ArresterSpark Arrester
-
5A18319158000 Muffler ShroudMuffler Shroud
-
6A18292104000 Muffler Shroud PackingMuffler Shroud Packing
-
7A920000600810 Hex Bolt M6 X 8Hex Bolt M6 X 8
-
8A941110814520 Spring WasherSpring Washer
-
9A9030106000 Cap NutCap Nut
-
10A960000803512G Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
11A941010814020G Washer PlainWasher Plain
-
12A9035008000 Nylon Insert Lock Nut M8Nylon Insert Lock Nut M8
-
13A960000602210G Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
14A941010614020G Washer PlainWasher Plain
-
15A9405006000G Hex.flange Nut With SerrationHex.flange Nut With Serration
-
16A18291133000 Joint De Tuyau *gasket-pipeJoint De Tuyau *gasket-pipe
-
17A18291101000 Exhaust Pipe GasketExhaust Pipe Gasket
-
18207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
19A17410116000 Reed ValveReed Valve
-
20A17411145000 TubeTube
-
21A17412127000 TubeTube
-
22A9451316000 Clamp-springClamp-spring
-
23A9451318000 Clamp-springClamp-spring
-
24A960000601510G Hexagonal Flange BoltHexagonal Flange Bolt
-
25A1736A175000 Catch Tank Compover GasketCatch Tank Compover Gasket
