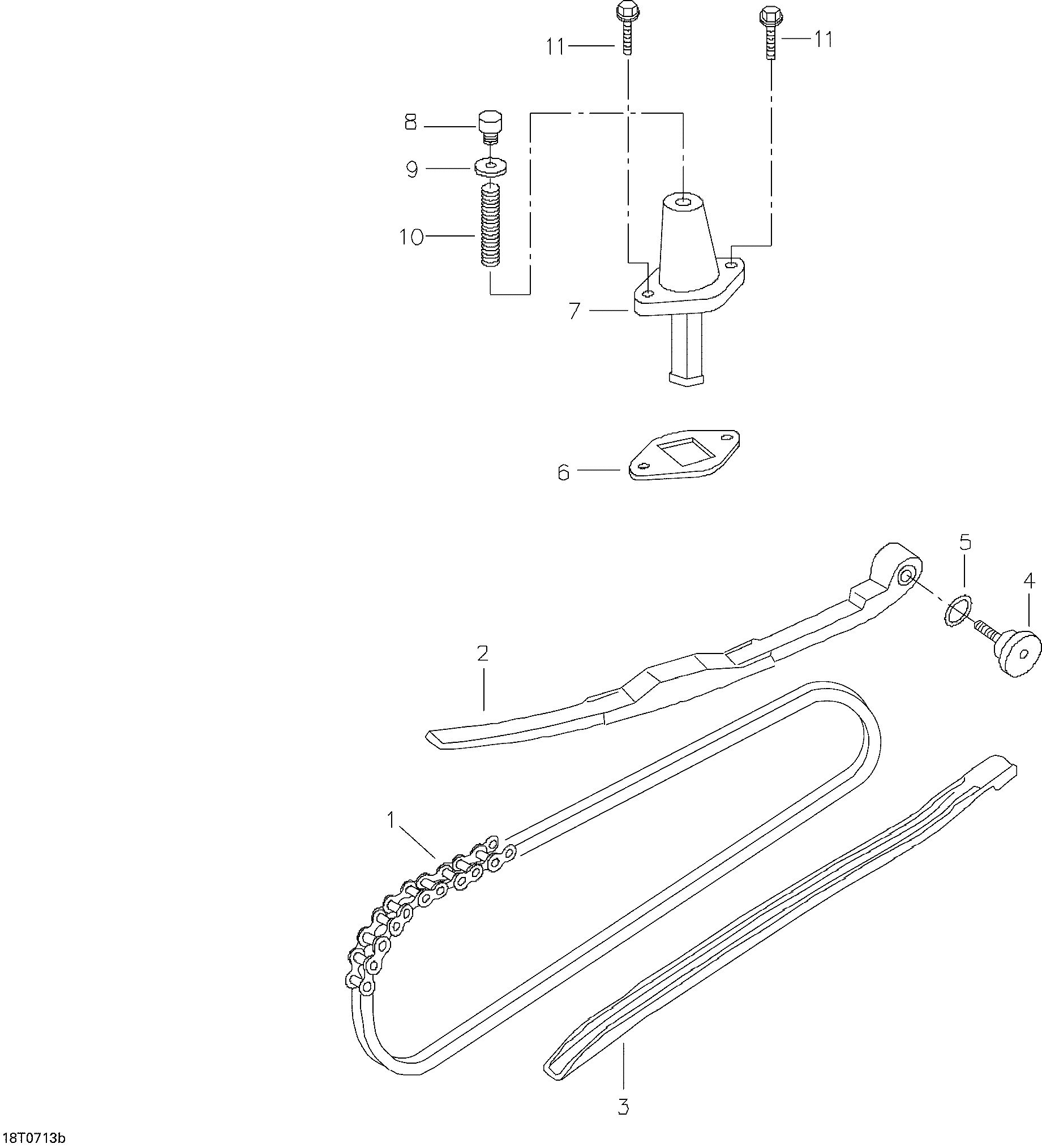

05- Chain Tensioner для BRP Mini DS 90 4-strokes - 2007
-
№АртикулНазвание
-
1A14401133000 Cam ChainCam Chain
-
2A14550133000 Cam Chain TensionerCam Chain Tensioner
-
3A14500133000 Cam Chain GuideCam Chain Guide
-
4A14535120000 Pivot Cam Chain TensionerPivot Cam Chain Tensioner
-
5A91315120000 Oil RingOil Ring
-
6A14523133000 Tensioner Lifter GasketTensioner Lifter Gasket
-
7A14521133000 Tensioner LifterTensioner Lifter
-
8A14552133000 Adjuster PlugAdjuster Plug
-
9A941010616015 Washer FlatWasher Flat
-
10A14553133000 Spring Cam Chain AdjusterSpring Cam Chain Adjuster
-
11A960000601808 Hex Washer Face Bolt M6 X 18Hex Washer Face Bolt M6 X 18
