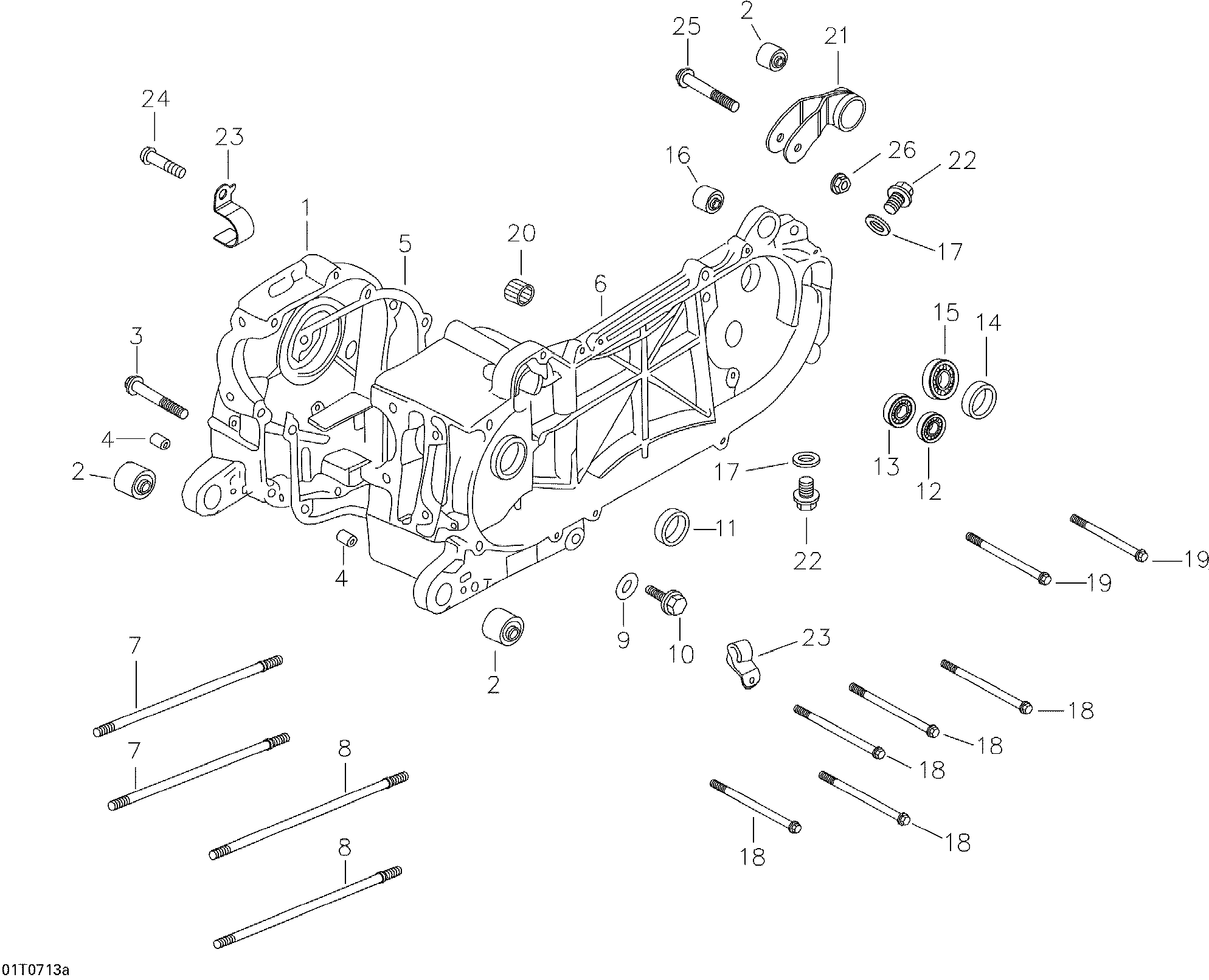

01- Crankcase для BRP Mini DS 90 4-strokes - 2007
-
№АртикулНазвание
-
1A11101175000 Rh.crankcaseRh.crankcase
-
2A96400102820 Rubber BushingRubber Bushing
-
3A960000605008 Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
4A9430108140 Dowel Pin (8 X 14)Dowel Pin (8 X 14)
-
5A11191133000 Crankcase GasketCrankcase Gasket
-
6A11201175000 Lh.crankcaseLh.crankcase
-
7A9100107168 Stud BoltStud Bolt
-
8A9100107176 Stud BoltStud Bolt
-
9A941011221320 Washer PlainWasher Plain
-
10A960001201514 Hex Washer Face Bolt M12 X 15Hex Washer Face Bolt M12 X 15
-
11A9650019305 Oil RingOil Ring
-
12A9610062030 Radial Ball BearingRadial Ball Bearing
-
13A9610062010 Radial Ball Bearing (6201)Radial Ball Bearing (6201)
-
14A9650017306 Oil RingOil Ring
-
15A961006203S Radial Ball BearingRadial Ball Bearing
-
16A964000820200A Rubber BushingRubber Bushing
-
17A941010816020 Washer PlainWasher Plain
-
18A960000803512G Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
19A960000804012K Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
20A96200081210 Needle Bearing (hk8 X 12 X 10)Needle Bearing (hk8 X 12 X 10)
-
21A11204175000 Bracket LHBracket LH
-
22A960000801210 Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
23A1135112000A ClamperClamper
-
24A960000601508 Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
25A960000803512 Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
26233081416 Hex Flanged Nut M8Hex Flanged Nut M8
