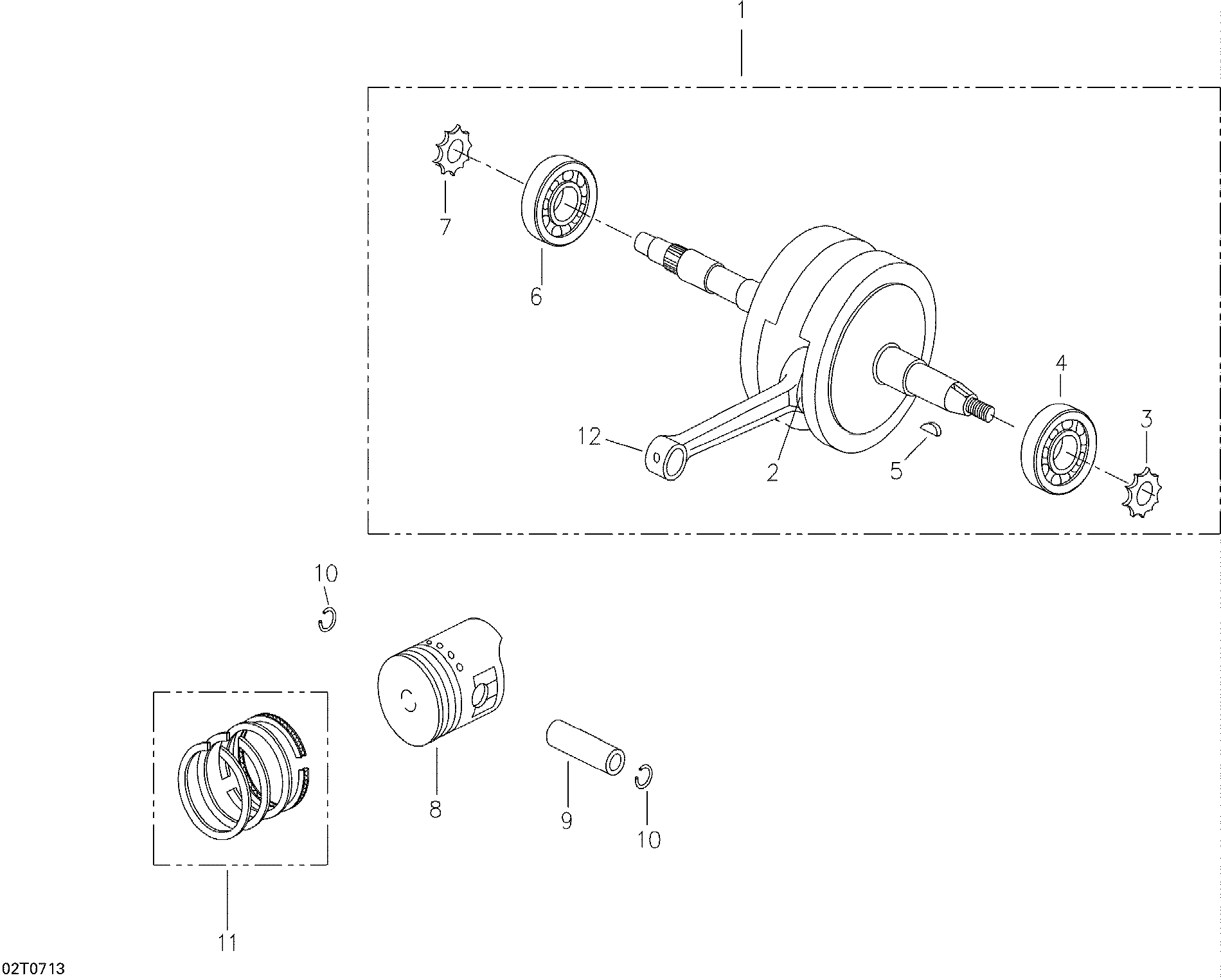

01- Crankshaft And Pistons для BRP Mini DS 90 4-strokes - 2007
-
№АртикулНазвание
-
1A13000133000 Crankshaft Assy. Includes 1 to 7, 12Crankshaft Assy. Includes 1 to 7, 12
-
3A14322120000 Sprocket Oil PumpSprocket Oil Pump
-
4A96100SC03A39 Radial Ball BearingRadial Ball Bearing
-
5A90471133000 Semicycle KeySemicycle Key
-
6A96100TMB204 Radial Ball BearingRadial Ball Bearing
-
7A14311133000 Timing SprocketTiming Sprocket
-
8A13100175000 PistonPiston
-
9A13111175000 Piston PinPiston Pin
-
10A13115101000 Piston Pin Clip (1.0 X 14)Piston Pin Clip (1.0 X 14)
-
11A13011175000 Piston Ring SetPiston Ring Set
