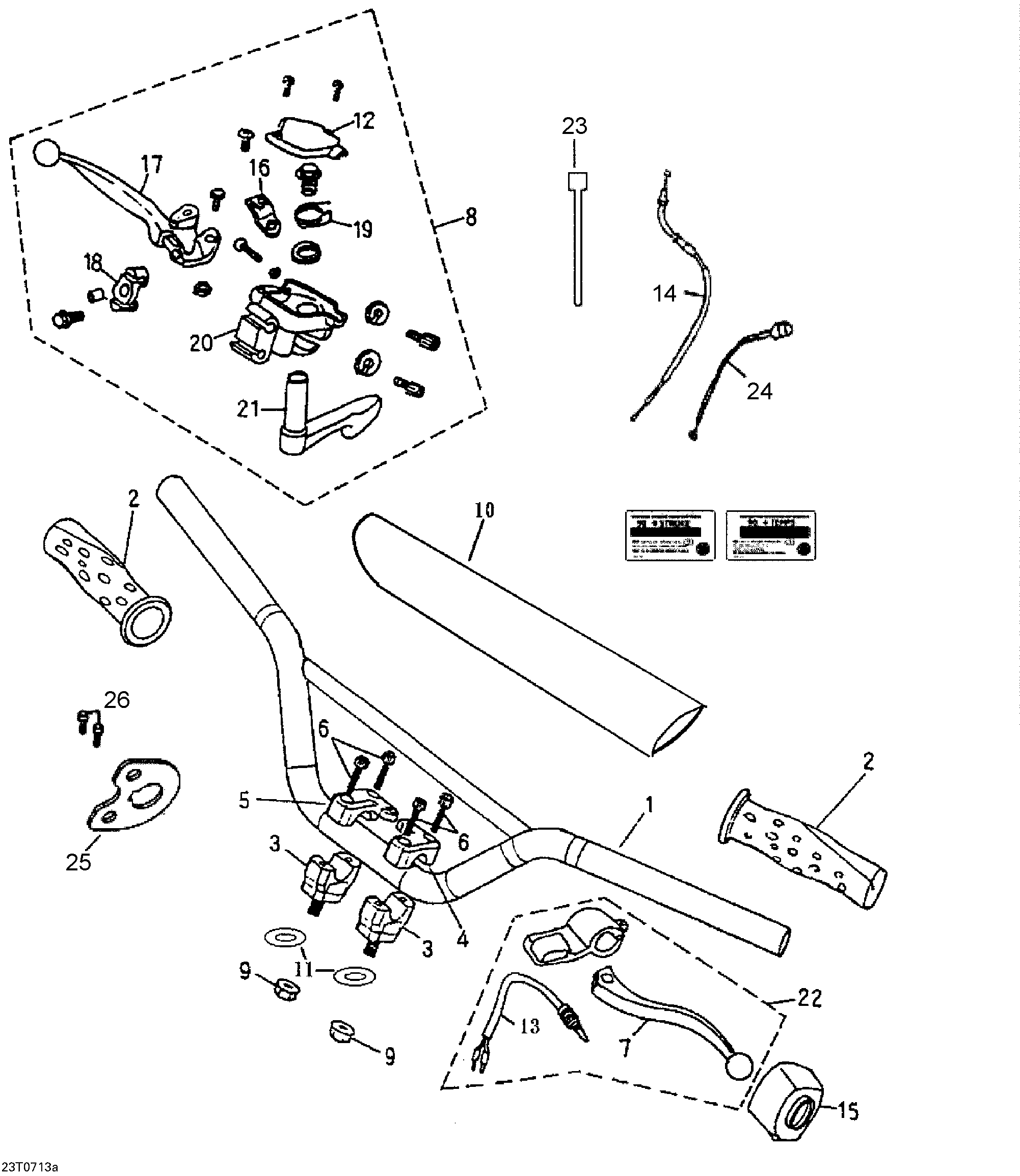

07- Handlebar для BRP Mini DS 90 4-strokes - 2007
-
№АртикулНазвание
-
1A5310014500C Handle BarHandle Bar
-
2A53166101000 Handle GripHandle Grip
-
3A5310114500A Handle Bar Bottom ClampHandle Bar Bottom Clamp
-
4A5310214500A LH Handle Bar ClampLH Handle Bar Clamp
-
5A5310314500A RH Handle Bar ClampRH Handle Bar Clamp
-
6A9100006025 Hex Socket Bolt (M6 X 25)Hex Socket Bolt (M6 X 25)
-
8A5317014500A Right Lever Ass'Y. Includes 12, 16 to 21Right Lever Ass'Y. Includes 12, 16 to 21
-
9A9035010000G Nylon Nut (10 mm X 1.25)Nylon Nut (10 mm X 1.25)
-
10A5313216600ARD Cross Bar SpongeCross Bar Sponge
-
11A941051022025G Plain WasherPlain Washer
-
13A35345145000 LH Brake Switch WireLH Brake Switch Wire
-
14A17910238000 Throttle CableThrottle Cable
-
16A53174145000 Throttle Cable BracketThrottle Cable Bracket
-
17A53175145000 RH LeverRH Lever
-
21A53180145000 Throttle LeverThrottle Lever
-
22A53179155000 LHlever Ass'Y. Includes 7 and 13LHlever Ass'Y. Includes 7 and 13
-
23A9066910100A Tie RapTie Rap
-
24A17950158000 Choke CableChoke Cable
-
25A54139145000 Bracket ChokeBracket Choke
-
26A9100006012 Hexagonal Socket BoltHexagonal Socket Bolt
