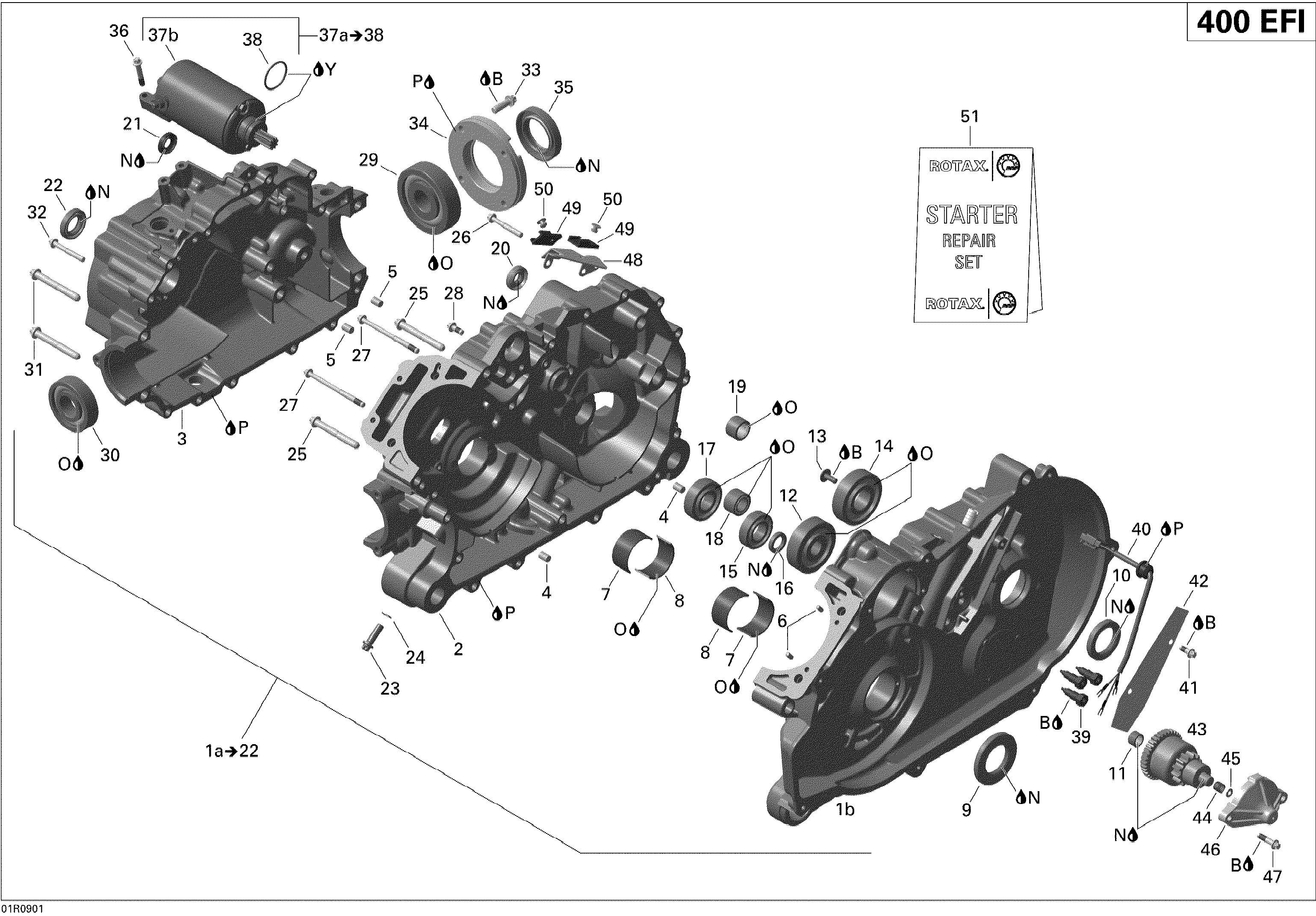

01- Crankcase для BRP Outlander 400 EFI - 2009
-
№АртикулНазвание
-
1a420296761 Crankcase Ass'y. Includes 1a to 22Crankcase Ass'y. Includes 1a to 22
-
4420632010 Pin 8 X 12Pin 8 X 12
-
5420632010 Pin 8 X 12Pin 8 X 12
-
6420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
7420233960 Plain BearingPlain Bearing
-
8420233965 Plain BearingPlain Bearing
-
9420630152 Oil SealOil Seal
-
10420950087 Oil SealOil Seal
-
11420232480 Needle BushingNeedle Bushing
-
12420632290 Ball BearingBall Bearing
-
13420241529 Torx Screw M6 X 16Torx Screw M6 X 16
-
14420932825 Ball BearingBall Bearing
-
15420232291 Ball Bearing 6302Ball Bearing 6302
-
16420250130 Oil SealOil Seal
-
17420932430 Ball Bearing 6204Ball Bearing 6204
-
18420232085 Needle BushingNeedle Bushing
-
19420832240 Needle BushingNeedle Bushing
-
20420250450 Oil SealOil Seal
-
21420650315 Oil SealOil Seal
-
22420930392 Oil SealOil Seal
-
23420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
24420950141 Sealing RingSealing Ring
-
25420440402 Flanged Torx Screw M8 X 65Flanged Torx Screw M8 X 65
-
26420440322 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
27420440342 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
28420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
29420632280 Ball Bearing 6405Ball Bearing 6405
-
30420932825 Ball BearingBall Bearing
-
31420440402 Flanged Torx Screw M8 X 65Flanged Torx Screw M8 X 65
-
32420440322 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
33420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
34420610243 Bearing CoverBearing Cover
-
35420650682 Oil SealOil Seal
-
36420440272 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
37a420684282 Electrical Starter Ass'y. Includes 37a to 38Electrical Starter Ass'y. Includes 37a to 38
-
39420241856 Position SwitchPosition Switch
-
40420265831 Wiring HarnessWiring Harness
-
41420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
42420251290 Cover SheetCover Sheet
-
43420684050 Starter Drive Ass'yStarter Drive Ass'y
-
44420938204 SpringSpring
-
45420927571 WasherWasher
-
46420610891 Reduction Cover GearReduction Cover Gear
-
47420240031 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
48420251490 Retaining PlateRetaining Plate
-
49420260590 Connector BracketConnector Bracket
-
50420243010 Blind RivetBlind Rivet
-
51420266307 Brush KitBrush Kit
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
N293550030 Grease, Super LubeGrease, Super Lube
-
P293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
Y420297616 Klueber Paste 46 MR 401, 60 gKlueber Paste 46 MR 401, 60 g
