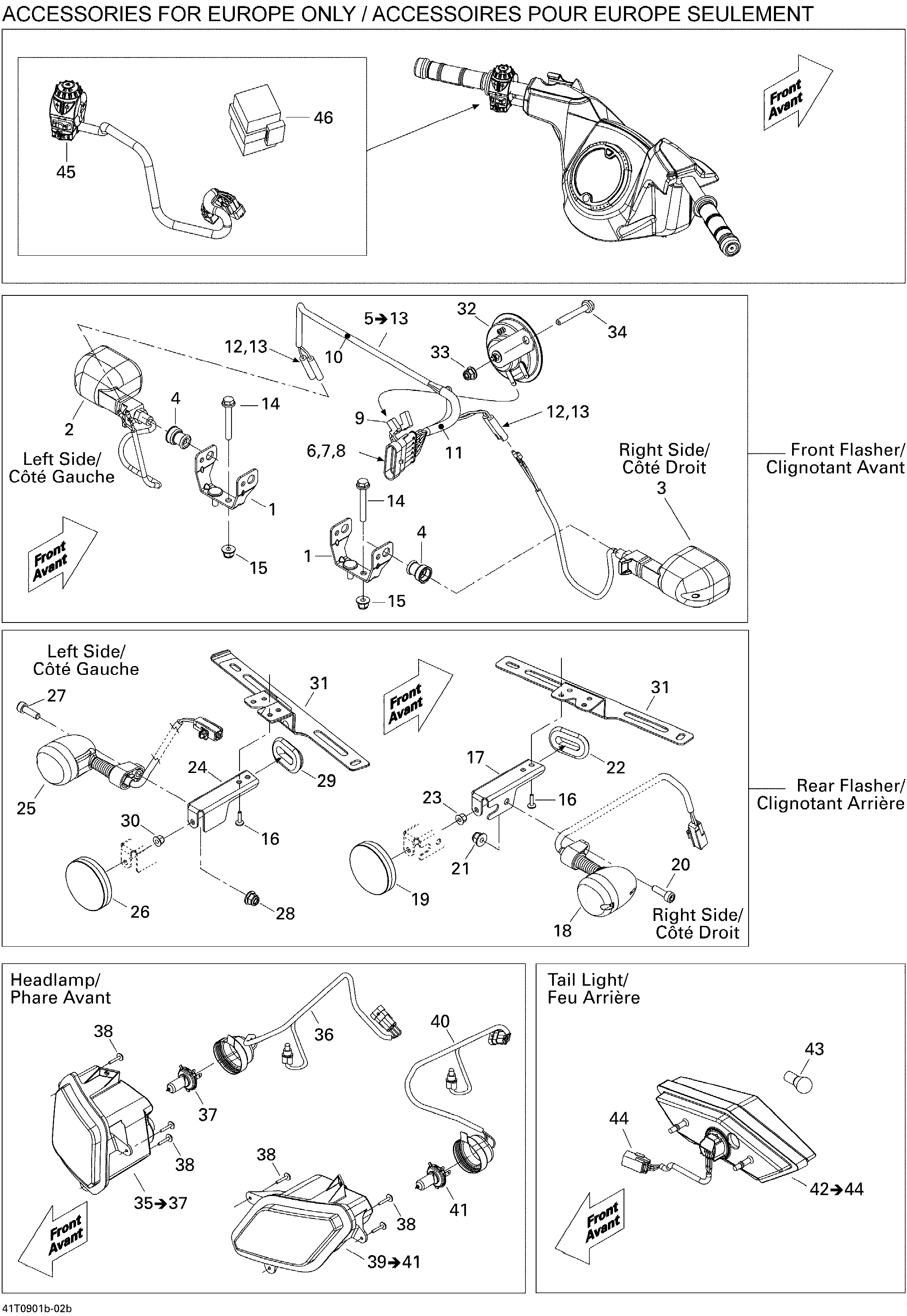

10- Electrical Accessories Europe для BRP Outlander 400 EFI - 2009
-
№АртикулНазвание
-
1710000978 BracketBracket
-
2710000546 FlasherFlasher
-
3710000547 FlasherFlasher
-
4710000765 Protection CapProtection Cap
-
5710001562 Front Fender Harness. Includes 5 to 13Front Fender Harness. Includes 5 to 13
-
6409012900 Male TerminalMale Terminal
-
7710000576 Housing, 4circuitsHousing, 4circuits
-
8278001013 Wire SealWire Seal
-
9409010300 Female TerminalFemale Terminal
-
10515175442 Tubing 6 mmTubing 6 mm
-
11409901700 Tubing 9 mmTubing 9 mm
-
12278001007 Insulated SheathInsulated Sheath
-
13710000421 Female TerminalFemale Terminal
-
14207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
17710001329 BracketBracket
-
18710001079 Flashing LightFlashing Light
-
19705002408 Reflector, RedReflector, Red
-
20205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22705002665 Oblong GrommetOblong Grommet
-
23233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
24710001330 BracketBracket
-
25710001080 Flashing LightFlashing Light
-
26705002408 Reflector, RedReflector, Red
-
27205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29705002665 Oblong GrommetOblong Grommet
-
30233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
31710001241 BracketBracket
-
32710001281 HornHorn
-
33233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
35710000861 RH Headlamp. Includes 35 to 37RH Headlamp. Includes 35 to 37
-
36710000923 Headlamp HarnessHeadlamp Harness
-
37710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
38250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
39710000862 LH Headlamp. Includes 39 to 41LH Headlamp. Includes 39 to 41
-
40710000923 Headlamp HarnessHeadlamp Harness
-
41710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
42710001204 Tail Light Housing. Includes 42 to 44Tail Light Housing. Includes 42 to 44
-
43410504100 Tail Light BulbTail Light Bulb
-
44515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
45710001428 Multi-fonction HandleMulti-fonction Handle
-
46710001447 Flasher UnitFlasher Unit
