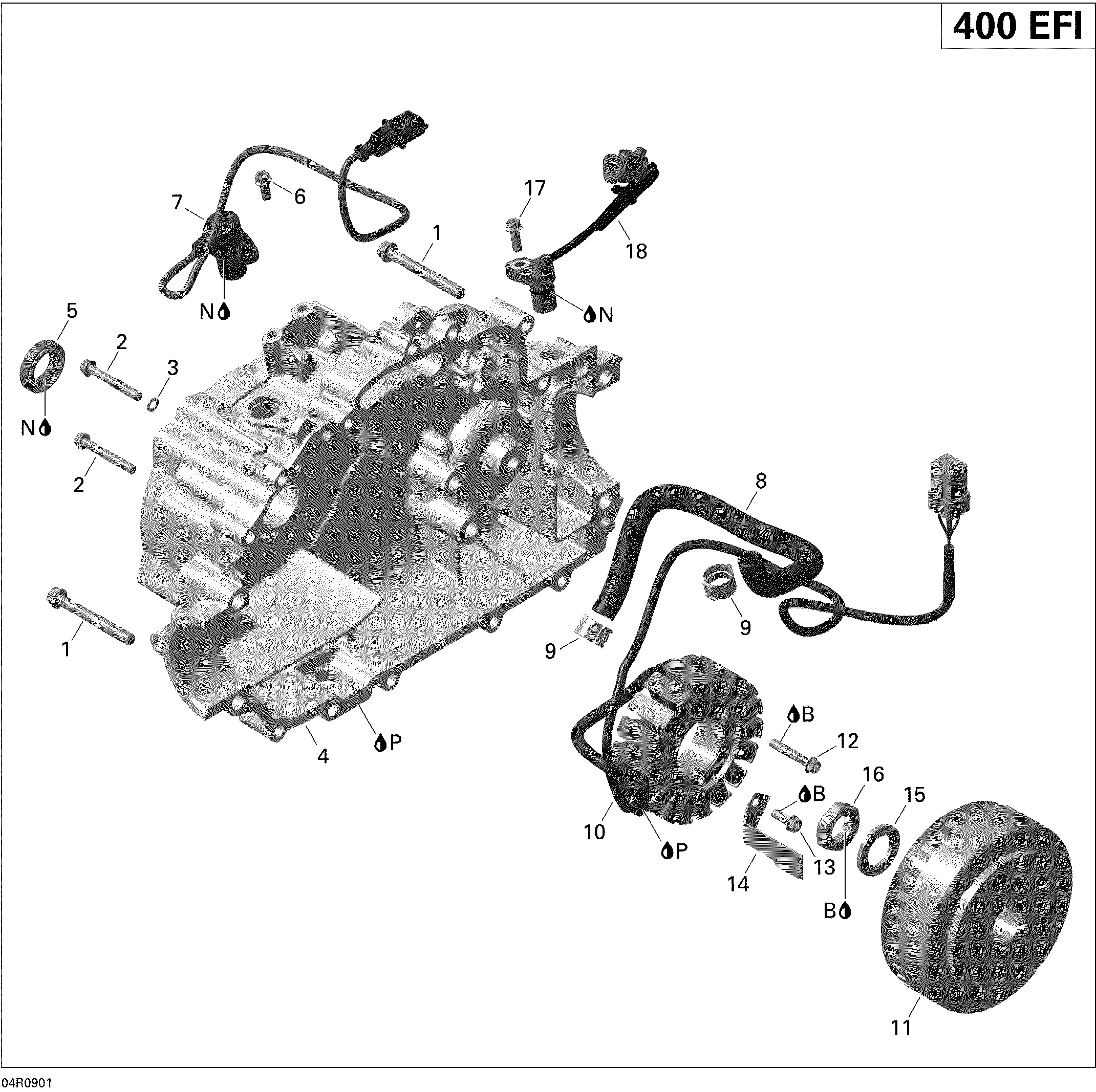

03- Magneto для BRP Outlander 400 EFI - 2009
-
№АртикулНазвание
-
1420440402 Flanged Torx Screw M8 X 65Flanged Torx Screw M8 X 65
-
2420440322 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
3420230415 Seal WasherSeal Washer
-
5420930392 Oil SealOil Seal
-
6420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
7420966570 Crankshaft Position SensorCrankshaft Position Sensor
-
9420960892 ClipClip
-
10420296907 Stator PlateStator Plate
-
11420296903 Magneto FlywheelMagneto Flywheel
-
12420440272 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
13420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
14420251270 Inner Cable CoverInner Cable Cover
-
15420945759 Lock WasherLock Washer
-
16420842239 Hex. Nut M22Hex. Nut M22
-
17420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
18420265626 Speed SensorSpeed Sensor
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
N293550030 Grease, Super LubeGrease, Super Lube
-
P293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
