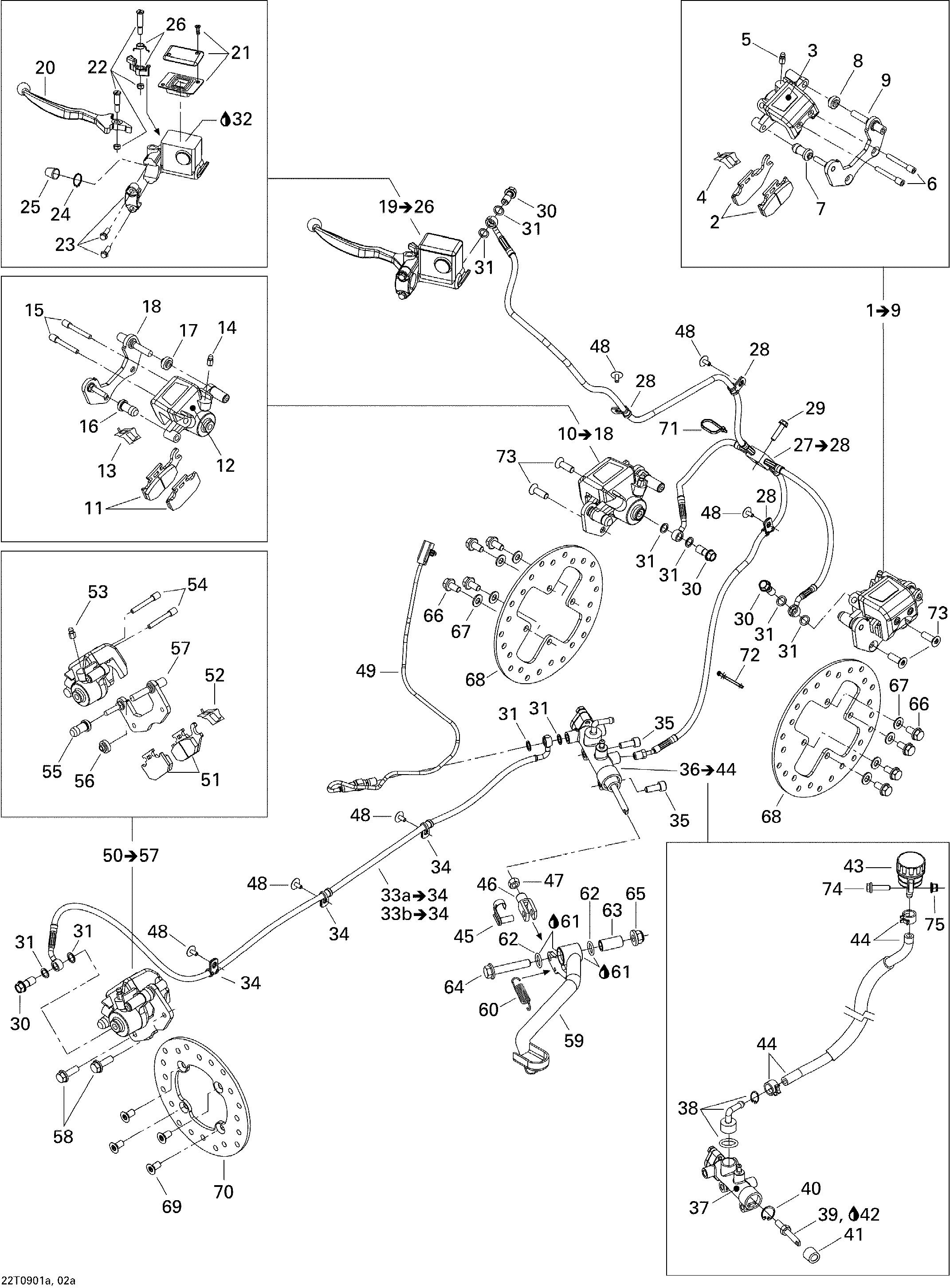

06- Hydraulic Brakes для BRP Outlander 400 EFI - 2009
-
№АртикулНазвание
-
1705600575 RH Caliper. Includes 1 to 9RH Caliper. Includes 1 to 9
-
2705600350 RH Brake Pad KitRH Brake Pad Kit
-
3705600078 Piston SetPiston Set
-
4705600079 SpringSpring
-
5705600080 Bleeding ScrewBleeding Screw
-
6705600081 Pin SetPin Set
-
7705600082 Compression BootCompression Boot
-
8705600083 Compression BootCompression Boot
-
10705600576 LH Caliper. Includes 10 to 18LH Caliper. Includes 10 to 18
-
11705600349 Brake Pad KitBrake Pad Kit
-
12705600078 Piston SetPiston Set
-
13705600079 SpringSpring
-
14705600080 Bleeding ScrewBleeding Screw
-
15705600081 Pin SetPin Set
-
16705600082 Compression BootCompression Boot
-
17705600083 Compression BootCompression Boot
-
18705600297 LH Caliper SupportLH Caliper Support
-
19705600578 Master Cylinder. Includes 19 to 26Master Cylinder. Includes 19 to 26
-
20705600243 Lever ArmLever Arm
-
21705600084 Cap SetCap Set
-
22705600246 Brake Lever Bolt KitBrake Lever Bolt Kit
-
23705600087 Bracket KitBracket Kit
-
24705600088 CirclipCirclip
-
25705600089 Compression BootCompression Boot
-
26705600477 Parking Kit, Brake Lever LockParking Kit, Brake Lever Lock
-
27705600579 Front Hose. Includes 27 to 28Front Hose. Includes 27 to 28
-
28705600459 ClampClamp
-
29210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
30705600609 Banjo BoltBanjo Bolt
-
31705600310 Copper WasherCopper Washer
-
32293600062 Brake Fluid, GTLMA, DOT 4 12 X 354 mlBrake Fluid, GTLMA, DOT 4 12 X 354 ml
-
33a705600580 Rear Hose. Includes 33a to 34Rear Hose. Includes 33a to 34
-
33b705600581 Rear Hose. Includes 33b to 34, MAXRear Hose. Includes 33b to 34, MAX
-
34705600459 ClampClamp
-
35250000136 Socket Screw M8 X 20, Scotch GripSocket Screw M8 X 20, Scotch Grip
-
36705600543 Master Cylinder. Includes 36 to 44Master Cylinder. Includes 36 to 44
-
37705600255 Piston SetPiston Set
-
38705600064 Pusher Bracket, Hose ConnectorPusher Bracket, Hose Connector
-
40705600068 CirclipCirclip
-
41705600090 Compression BootCompression Boot
-
43705600182 Oil Tank, Brake Fluid ReservoirOil Tank, Brake Fluid Reservoir
-
44705600262 Oil Housing HoseOil Housing Hose
-
45250400007 PinPin
-
46705600100 YokeYoke
-
47232081414 Hex. Nut M8Hex. Nut M8
-
48390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
49710000853 Brake SwitchBrake Switch
-
50705600577 Rear Caliper. Includes 50 to 57Rear Caliper. Includes 50 to 57
-
51705600398 Brake Pad KitBrake Pad Kit
-
52705600079 SpringSpring
-
53705600080 Bleeding ScrewBleeding Screw
-
54705600081 Pin SetPin Set
-
55705600082 Compression BootCompression Boot
-
56705600083 Compression BootCompression Boot
-
57705600298 LH Caliper SupportLH Caliper Support
-
58207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
59705600555 Brake Pedal, BlackBrake Pedal, Black
-
60705600098 Break Pedal SpringBreak Pedal Spring
-
61293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
62293300053 O-RingO-Ring
-
63705600283 SpacerSpacer
-
64207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
65233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
66207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
67234281474 Conical Spring Washer M8Conical Spring Washer M8
-
68705600603 Disk BrakeDisk Brake
-
69235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
70705600604 Disk BrakeDisk Brake
-
71293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
72414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
73250000143 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
74207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
75233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
