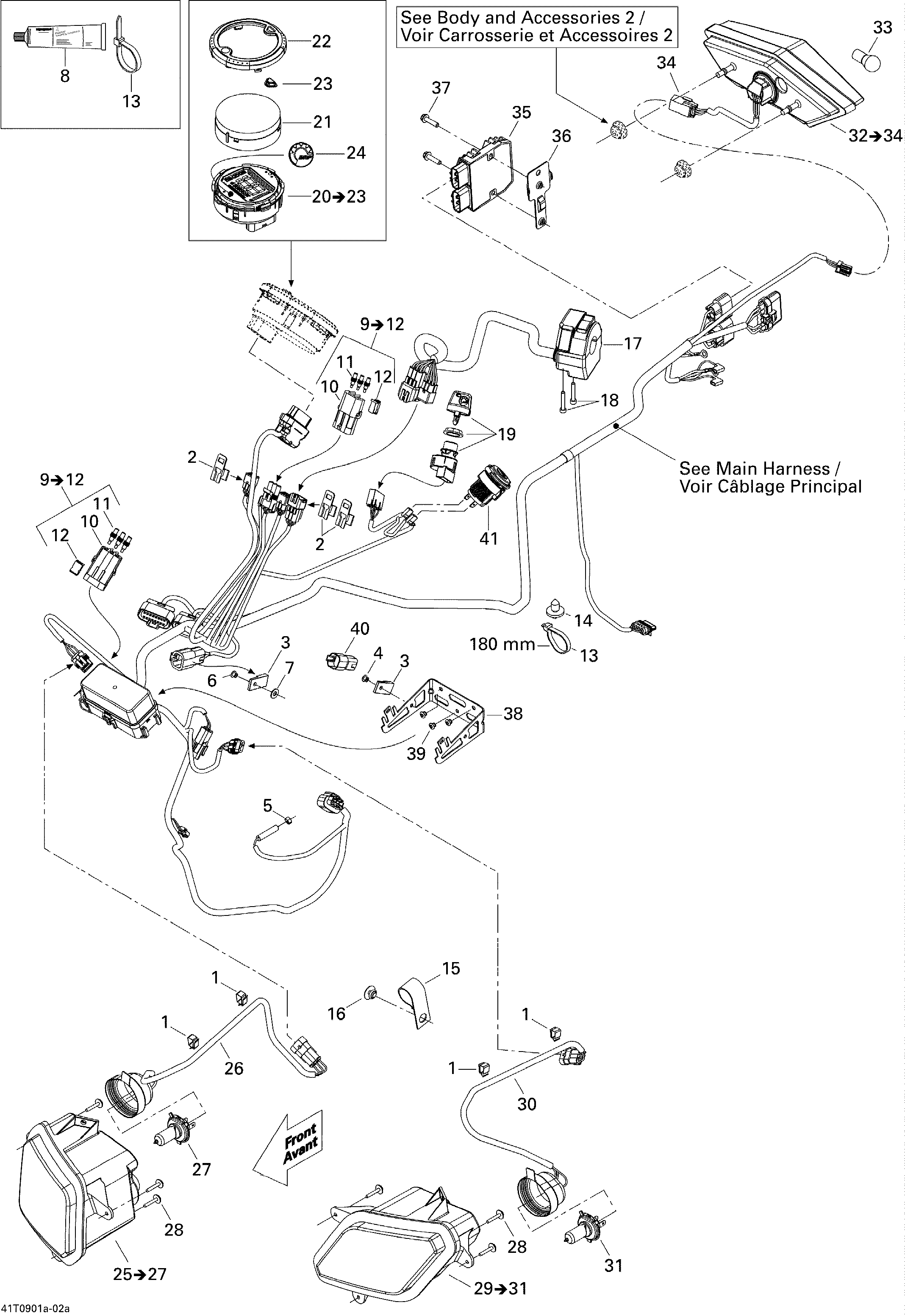

10- Electrical Accessories для BRP Outlander 400 EFI - 2009
-
№АртикулНазвание
-
1414227300 ClipClip
-
2515175283 Housing SupportHousing Support
-
3270000141 ClipClip
-
4390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
5293650100 Oetiker ClampOetiker Clamp
-
6390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
7517124300 WasherWasher
-
8293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
9710000917 Connector Ass'y. STD, Includes 9 to 12Connector Ass'y. STD, Includes 9 to 12
-
10278000281 Female Terminal Housing, 3 Circuits. STDFemale Terminal Housing, 3 Circuits. STD
-
11278000216 Wire Seal. STDWire Seal. STD
-
12710000992 Clip. STDClip. STD
-
13293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
13293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
13293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
14293730018 Mount DartMount Dart
-
15705600311 ClampClamp
-
16390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
17710000791 Multi-fonction Handle. STDMulti-fonction Handle. STD
-
17710001428 Multi-fonction Handle. EuropeMulti-fonction Handle. Europe
-
18205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
19710001207 Ingnition SwitchIngnition Switch
-
20710001527 Speedometer. Includes 20 to 23Speedometer. Includes 20 to 23
-
21415129320 LensLens
-
22710001416 Trim RingTrim Ring
-
23710001473 ButtonButton
-
24704901270 BRP Logo, 13mmBRP Logo, 13mm
-
25710000861 RH Headlamp. Europe, Includes 25 to 27RH Headlamp. Europe, Includes 25 to 27
-
25710001496 RH Headlamp. STD, Includes 25 to 27RH Headlamp. STD, Includes 25 to 27
-
26710000828 Headlamp HarnessHeadlamp Harness
-
27710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
28250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
29710000862 LH Headlamp. Europe, Includes 29 to 31LH Headlamp. Europe, Includes 29 to 31
-
29710001497 LH Headlamp. STD, Includes 29 to 31LH Headlamp. STD, Includes 29 to 31
-
30710000828 Headlamp HarnessHeadlamp Harness
-
31710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
32710001203 Tail Light Housing. STD, Includes 32 to 34Tail Light Housing. STD, Includes 32 to 34
-
32710001204 Tail Light Housing. Europe, Includes 32 to 34Tail Light Housing. Europe, Includes 32 to 34
-
33410504100 Tail Light BulbTail Light Bulb
-
34515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
35710001103 Voltage RegulatorVoltage Regulator
-
36710001262 Rectifier SupportRectifier Support
-
37210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
38710001263 Fuse SupportFuse Support
-
39390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
40278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
41710001248 Outlet DCOutlet DC
