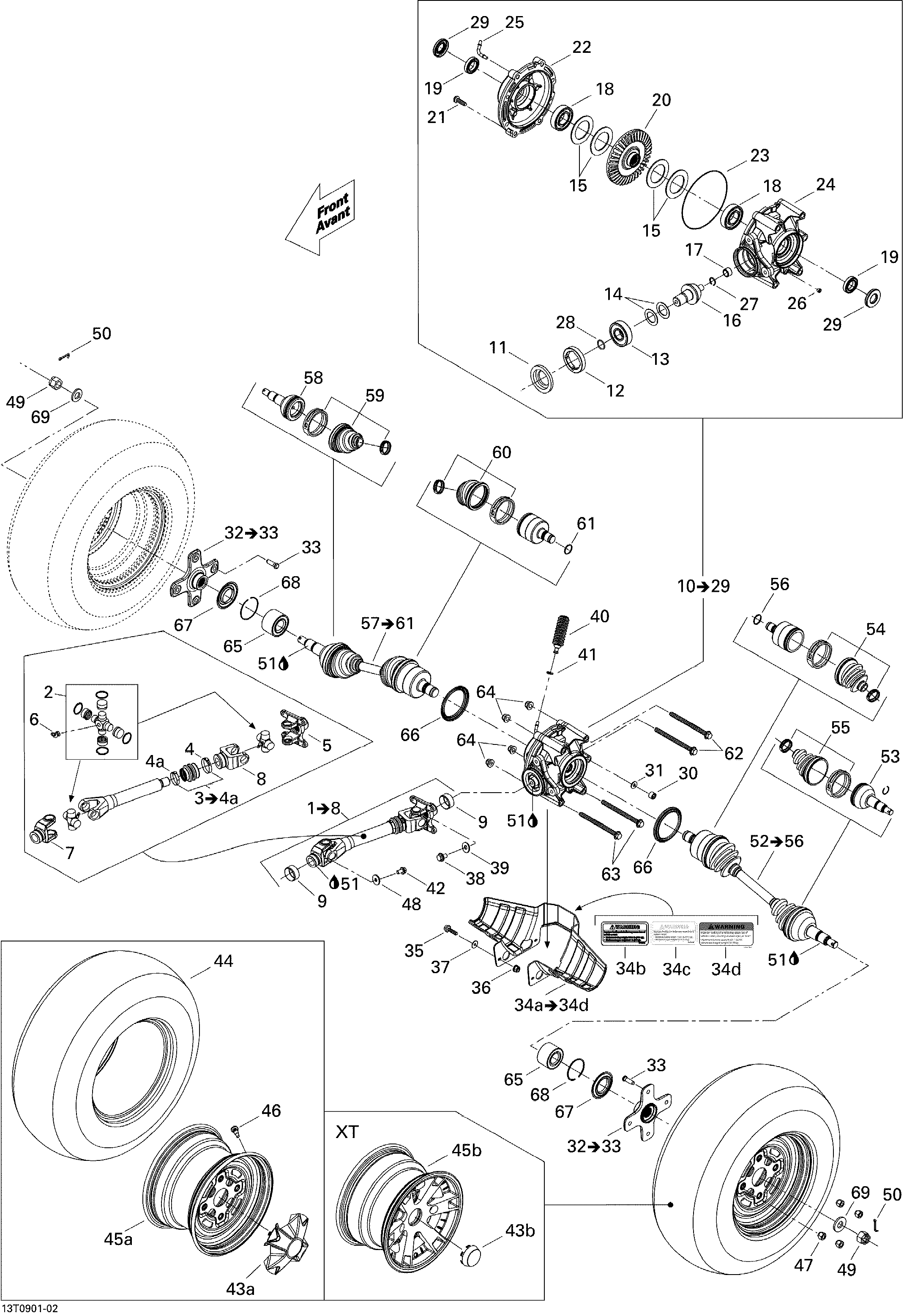

08- Drive System, Rear для BRP Outlander 400 EFI - 2009
-
№АртикулНазвание
-
1703500706 Rear Drive Shaft Ass'y. Includes 1 to 8Rear Drive Shaft Ass'y. Includes 1 to 8
-
2703000024 Unit Pack KitUnit Pack Kit
-
3703500255 Rubber Boot Kit. Includes 3 to 4aRubber Boot Kit. Includes 3 to 4a
-
4293650138 Oetiker ClampOetiker Clamp
-
4a705400148 CollarCollar
-
5705500351 Disc JointDisc Joint
-
6715900067 Grease FittingGrease Fitting
-
7705500348 Fix JointFix Joint
-
8705500762 Slip JointSlip Joint
-
9705400036 Wear RingWear Ring
-
10705501093 Differential Ass'y. Includes 10 to 29Differential Ass'y. Includes 10 to 29
-
11705400027 Oil SealOil Seal
-
12705500987 NutNut
-
13705500260 Ball BearingBall Bearing
-
14705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
14703500049 Pinion Shim KitPinion Shim Kit
-
15703500548 Differential Shim KitDifferential Shim Kit
-
16705501051 10 Teeth Pinion10 Teeth Pinion
-
17705500261 Needle BearingNeedle Bearing
-
18705500749 Ball BearingBall Bearing
-
19705500750 Ball BearingBall Bearing
-
20705500775 Gear, 36 ToothGear, 36 Tooth
-
21705500892 ScrewScrew
-
22705500697 Rear Differential CoverRear Differential Cover
-
23705500265 SealSeal
-
24705500843 Rear CoverRear Cover
-
25705500893 Vent ValveVent Valve
-
26705500894 Drain PlugDrain Plug
-
27705500269 Retaining RingRetaining Ring
-
28705500267 O-RingO-Ring
-
29705500751 Oil SealOil Seal
-
30250400041 Screw PlugScrew Plug
-
31705500506 Copper WasherCopper Washer
-
32705500909 Wheel Hub Ass'y. Includes 32 to 33Wheel Hub Ass'y. Includes 32 to 33
-
33250300034 Wheel StudWheel Stud
-
34a703500722 Protector Kit. Includes 34a to 34dProtector Kit. Includes 34a to 34d
-
34b704900009 Warning Label, HitchWarning Label, Hitch
-
34d704901489 Warning Decal, Maximum TowingWarning Decal, Maximum Towing
-
35207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
36233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
37250200082 Flat WasherFlat Washer
-
38250000378 Hex Flanged Screw S.Grip M12 X 16Hex Flanged Screw S.Grip M12 X 16
-
39250200102 Flat Washer M12Flat Washer M12
-
40705400552 Rubber BellowRubber Bellow
-
41293650042 Oetiker ClampOetiker Clamp
-
42207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
43a705400563 Wheel Cap. STDWheel Cap. STD
-
43b705400504 Wheel Cap. XTWheel Cap. XT
-
44705500441 Rear Tire. STDRear Tire. STD
-
44705500934 Rear Tire. STD EuropeRear Tire. STD Europe
-
44705500933 Rear Tire. XTRear Tire. XT
-
44705500598 Rear Tire. XT EuropeRear Tire. XT Europe
-
45a705500875 Rear Rim. STDRear Rim. STD
-
45b705501001 Rear Rim. XTRear Rim. XT
-
46705400193 Rim ValveRim Valve
-
47250100042 Wheel Nut. STDWheel Nut. STD
-
47250100082 Chrome Wheel Nut M10 X 1.25. XTChrome Wheel Nut M10 X 1.25. XT
-
48211200041 WasherWasher
-
49250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
50250400036 Cotter PinCotter Pin
-
51293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
52705500976 LH CV Joint. Includes 52 to 56LH CV Joint. Includes 52 to 56
-
53705500978 CV JointCV Joint
-
54705500929 Boot Wheel KitBoot Wheel Kit
-
55705500907 Boot KitBoot Kit
-
56705500845 CirclipCirclip
-
57705500977 RH CV Joint. Includes 57 to 61RH CV Joint. Includes 57 to 61
-
58705500978 CV JointCV Joint
-
59705500907 Boot KitBoot Kit
-
60705500929 Boot Wheel KitBoot Wheel Kit
-
61705500845 CirclipCirclip
-
62230603046 Flanged Hex. Screw, M10 X 130Flanged Hex. Screw, M10 X 130
-
63230603546 Hex. Flanged Screw M10 X 135Hex. Flanged Screw M10 X 135
-
64233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
65293350040 Cone BearingCone Bearing
-
66705500901 Wear SleeveWear Sleeve
-
67705500899 Wear SleeveWear Sleeve
-
68293370019 CirclipCirclip
-
69250200049 Spring WasherSpring Washer
