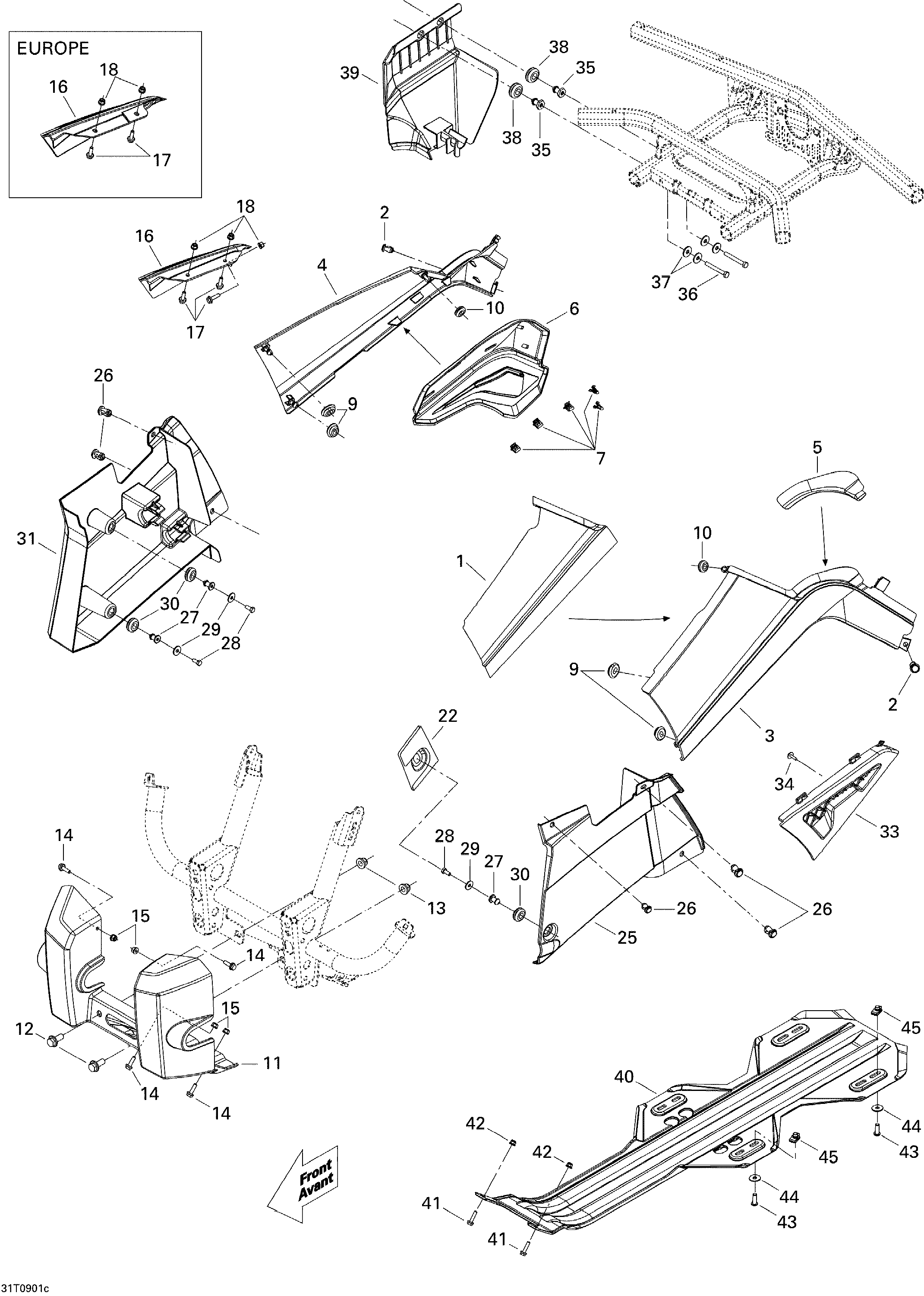

09- Body And Accessories 3 для BRP Outlander 400 EFI - 2009
-
№АртикулНазвание
-
1705002491 Reflective SheetReflective Sheet
-
2293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3705000438 LH Side Panel. Viper RedLH Side Panel. Viper Red
-
3705000863 LH Side Panel. YellowLH Side Panel. Yellow
-
3705003152 LH Side Panel. BlackLH Side Panel. Black
-
4705000439 RH Side Panel. Viper RedRH Side Panel. Viper Red
-
4705000865 RH Side Panel. YellowRH Side Panel. Yellow
-
4705003153 RH Side Panel. BlackRH Side Panel. Black
-
5705002793 Reflective SheetReflective Sheet
-
6705002664 Muffler CoverMuffler Cover
-
7517302785 ClipClip
-
9705005156 Oblong WasherOblong Washer
-
10705002149 GrommetGrommet
-
11705002989 Front Protection Plate. STDFront Protection Plate. STD
-
12207602544 Hex. Flanged Screw M10 X 25. STDHex. Flanged Screw M10 X 25. STD
-
13233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16705001529 Lever IndicatorLever Indicator
-
16705003028 Lever Indicator. EuropeLever Indicator. Europe
-
17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
17207662044 Hex. Flanged Screw M6 X 20. EuropeHex. Flanged Screw M6 X 20. Europe
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18233261414 Hex. Flanged Elastic Nut M6. EuropeHex. Flanged Elastic Nut M6. Europe
-
22705002492 Reflective SheetReflective Sheet
-
25705000652 Side PanelSide Panel
-
26293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
27517303439 KnobKnob
-
28250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
29391301600 WasherWasher
-
30293720053 GrommetGrommet
-
31705002640 Inner FenderInner Fender
-
33705002493 Console CapConsole Cap
-
34250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
35517303439 KnobKnob
-
36241154540 Hex. Screw K50 X 45Hex. Screw K50 X 45
-
37391301600 WasherWasher
-
38293720053 GrommetGrommet
-
39705002264 Wire CoverWire Cover
-
40715000688 Skid PlateSkid Plate
-
41207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
42233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
43250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
44234082410 Flat Washer 8 mmFlat Washer 8 mm
-
45250100111 Panel Nut M8Panel Nut M8
