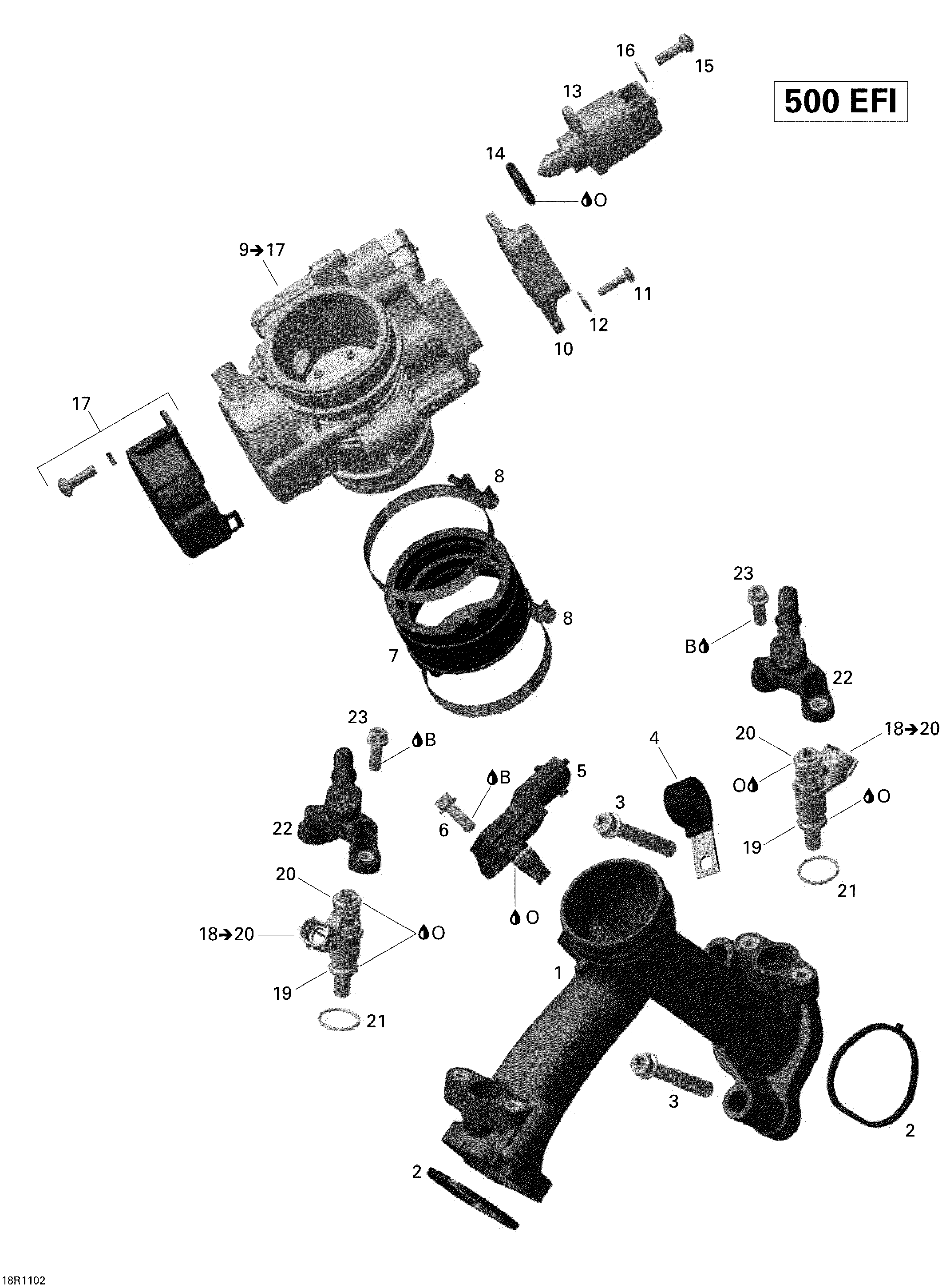

02- Air Intake Manifold And Throttle Body для BRP Outlander Max 500 EFI - 2011
-
№АртикулНазвание
-
1420667581 Air Intake ManifoldAir Intake Manifold
-
2420630642 GasketGasket
-
3420641213 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
4420251816 Cable ClampCable Clamp
-
5707000564 Pressure And Temperature SensorPressure And Temperature Sensor
-
6420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
7420267480 Intake AdaptorIntake Adaptor
-
8420251480 ClampClamp
-
9420296876 Throttle Body Ass'y. Includes 9 to 17Throttle Body Ass'y. Includes 9 to 17
-
10270000251 Position SensorPosition Sensor
-
11208641660 Phillips Screw M4 X 16Phillips Screw M4 X 16
-
12234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
13420665940 Idle Bypass ValveIdle Bypass Valve
-
14420631780 O-RingO-Ring
-
15420440911 Binding Head Screw M5 X 16Binding Head Screw M5 X 16
-
16420845710 Snap RingSnap Ring
-
17420281540 Cover KitCover Kit
-
18420874838 Injection Valve Ass'y. Includes 18 to 20Injection Valve Ass'y. Includes 18 to 20
-
19420431890 O-RingO-Ring
-
20420631220 O-RingO-Ring
-
21420631295 O-RingO-Ring
-
22420874901 Fuel RailFuel Rail
-
23420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
