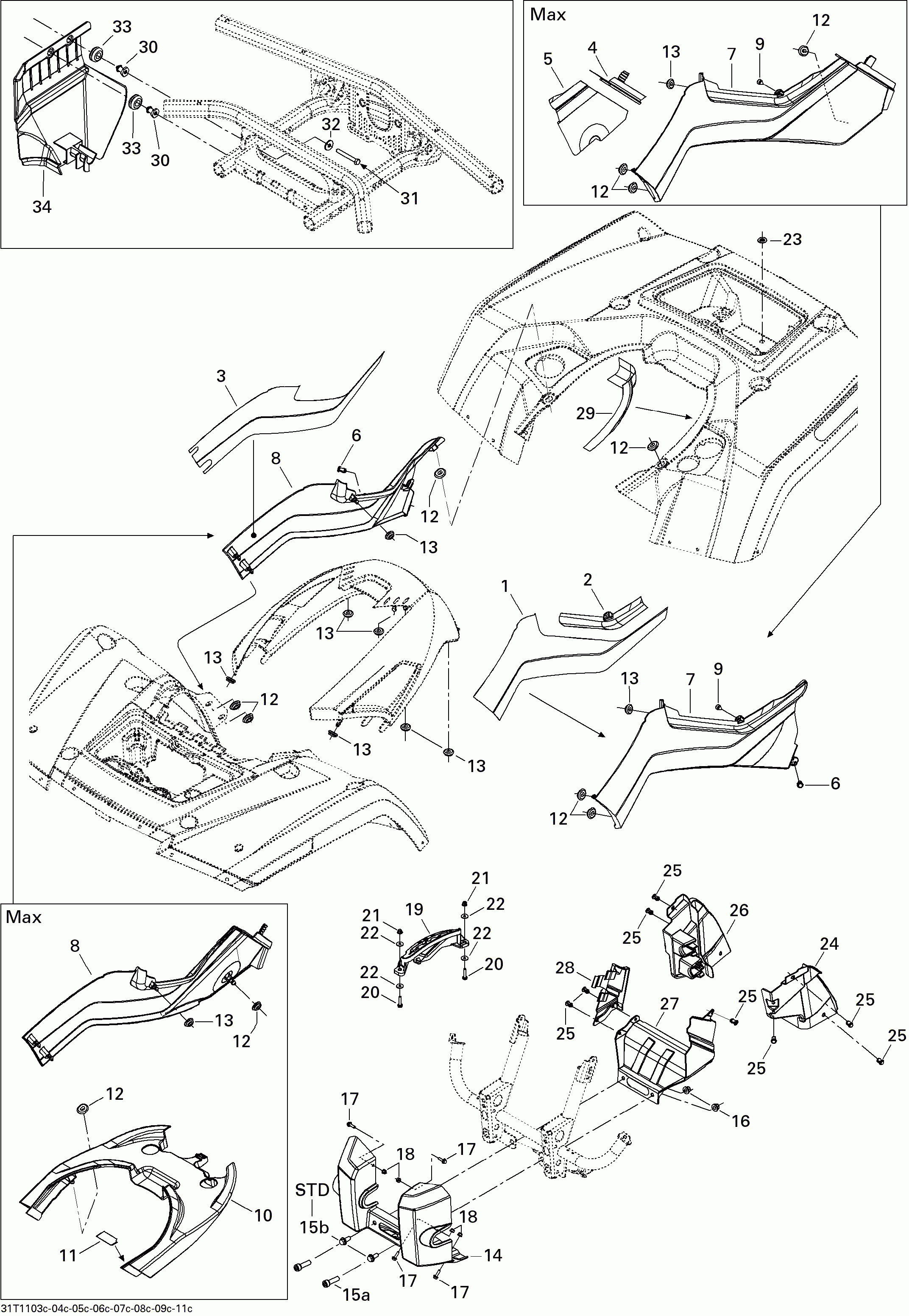

09- Body And Accessories 3 для BRP Outlander Max 500 EFI - 2011
-
№АртикулНазвание
-
1705001990 LH Reflective SheetLH Reflective Sheet
-
2705001989 Reflective SheetReflective Sheet
-
3705002126 RH Reflective SheetRH Reflective Sheet
-
4705002183 LH Reflective SheetLH Reflective Sheet
-
5705002184 LH Reflective SheetLH Reflective Sheet
-
6293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
7705002940 LH Lateral Panel, Yellow. Yellow Model, XmrLH Lateral Panel, Yellow. Yellow Model, Xmr
-
7705002942 LH Lateral Panel, Red. Red Model, MaxLH Lateral Panel, Red. Red Model, Max
-
7705003493 LH Lateral Panel, Black. Black Model, MaxLH Lateral Panel, Black. Black Model, Max
-
7705004077 LH Lateral Panel, Camo. Camo Model, MaxLH Lateral Panel, Camo. Camo Model, Max
-
8705002943 RH Lateral Panel, Yellow. Yellow Model, MaxRH Lateral Panel, Yellow. Yellow Model, Max
-
8705002945 RH Lateral Panel, Red. Red Model, MaxRH Lateral Panel, Red. Red Model, Max
-
8705003494 RH Lateral Panel, Black. Black Model, MaxRH Lateral Panel, Black. Black Model, Max
-
8705004076 RH Lateral Panel, Camo. Camo Model, MaxRH Lateral Panel, Camo. Camo Model, Max
-
9293830005 Rubber Plug, BlackRubber Plug, Black
-
10705002952 Storage Tray, Yellow. Yellow Model, MaxStorage Tray, Yellow. Yellow Model, Max
-
10705002954 Storage Tray, Red. Red Model, MaxStorage Tray, Red. Red Model, Max
-
10705003481 Storage Tray, Black. Black Model, MaxStorage Tray, Black. Black Model, Max
-
10705004075 Storage Tray, Camo. Camo Model, MaxStorage Tray, Camo. Camo Model, Max
-
11705002185 Reflective SheetReflective Sheet
-
12705005156 Oblong WasherOblong Washer
-
13705003264 GrommetGrommet
-
14705003495 Guard Plate. STD, XmrGuard Plate. STD, Xmr
-
14705003496 Guard Plate. XT, XTP, LTDGuard Plate. XT, XTP, LTD
-
15a205003544 Socket Screw M10 X 35. Except STD, XxcSocket Screw M10 X 35. Except STD, Xxc
-
15b207602544 Hex. Flanged Screw M10 X 25. STDHex. Flanged Screw M10 X 25. STD
-
16233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19705003838 Lever IndicatorLever Indicator
-
20207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22250200072 Flat WasherFlat Washer
-
23414859400 CapCap
-
24705003634 LH Inner FenderLH Inner Fender
-
25293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
26705002124 RH Inner FenderRH Inner Fender
-
27705002988 LH DeflectorLH Deflector
-
28705002135 RH DeflectorRH Deflector
-
29705002085 Reflective SheetReflective Sheet
-
30517303439 KnobKnob
-
31241154540 Hex. Screw K50 X 45Hex. Screw K50 X 45
-
32391301600 WasherWasher
-
33293720053 GrommetGrommet
-
34705004036 Thread CoverThread Cover
