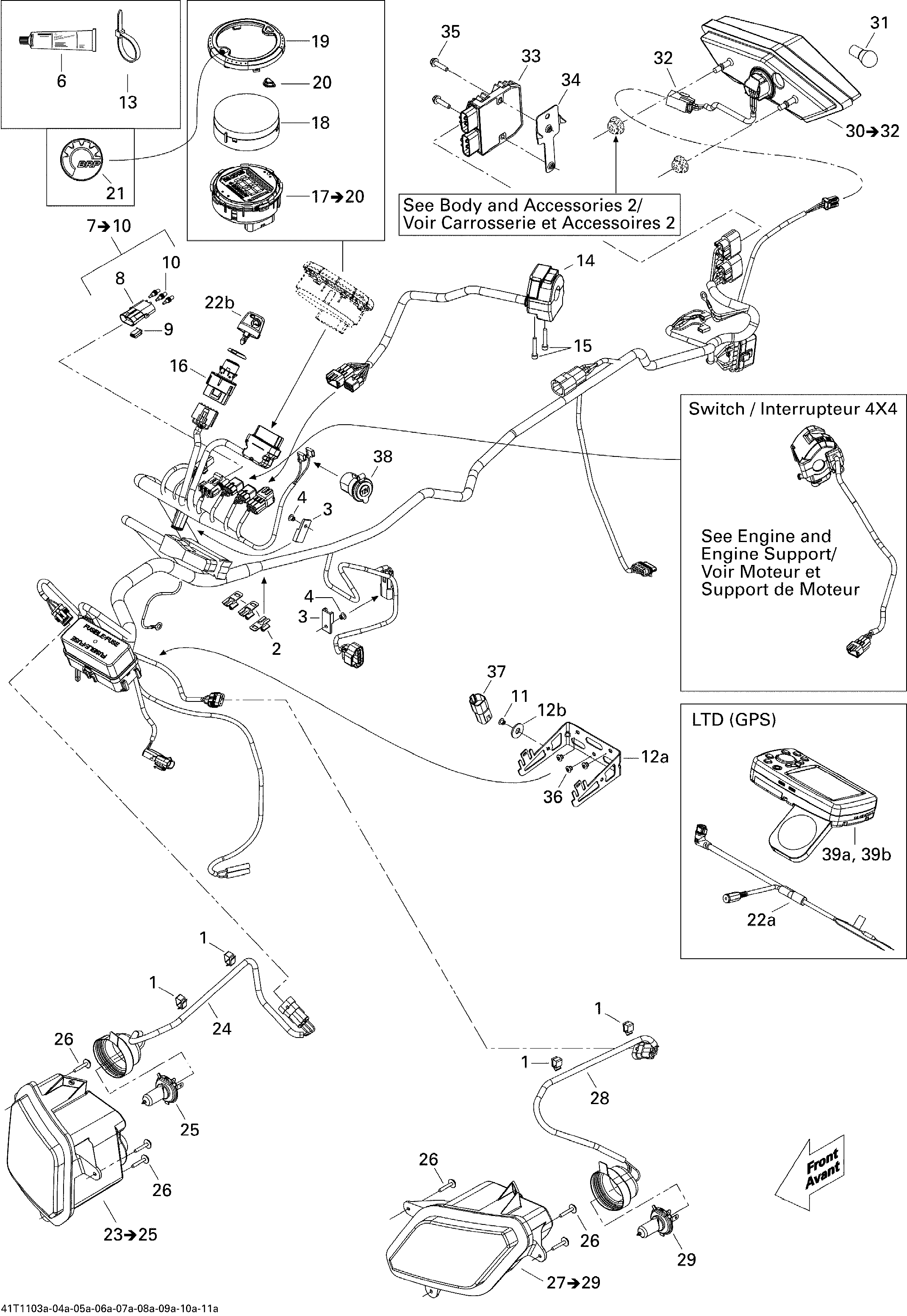

10- Electrical Accessories 1 для BRP Outlander Max 500 EFI - 2011
-
№АртикулНазвание
-
1414227300 ClipClip
-
2515175283 Housing SupportHousing Support
-
3270000141 ClipClip
-
4390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
6293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
7710000917 Connector Ass'y. Includes 7 to 10, STDConnector Ass'y. Includes 7 to 10, STD
-
7710001059 Connector Ass'y. Includes 7 to 9, XTConnector Ass'y. Includes 7 to 9, XT
-
8278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
9710000992 ClipClip
-
10278000216 Wire SealWire Seal
-
11390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
12a710002176 Fuse SupportFuse Support
-
12b517124300 WasherWasher
-
13293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
13293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
13293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
14710000791 Multi-fonction Handle. STDMulti-fonction Handle. STD
-
14710001594 Multi-fonction Handle. XTMulti-fonction Handle. XT
-
15205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
16710001421 Ignition SwitchIgnition Switch
-
17710002474 Speedometer. Includes 17 to 20Speedometer. Includes 17 to 20
-
18415129320 LensLens
-
19710001416 Trim RingTrim Ring
-
20710001473 ButtonButton
-
21704901270 BRP Logo, 13mmBRP Logo, 13mm
-
22b710000817 Black-Electronic KeyBlack-Electronic Key
-
23710001496 RH Headlamp. Includes 23 to 25RH Headlamp. Includes 23 to 25
-
24710000828 Headlamp HarnessHeadlamp Harness
-
25710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
26250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
27710001497 LH Headlamp. Includes 27 to 29LH Headlamp. Includes 27 to 29
-
28710000828 Headlamp HarnessHeadlamp Harness
-
29710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
30710001203 Tail Light Housing. Includes 30 to 32Tail Light Housing. Includes 30 to 32
-
31410504100 Tail Light BulbTail Light Bulb
-
32515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
33710001103 Voltage Regulator. STDVoltage Regulator. STD
-
33710001191 Voltage Regulator. XTVoltage Regulator. XT
-
34710001262 Rectifier Support. STDRectifier Support. STD
-
34710001572 Rectifier Support. XTRectifier Support. XT
-
35210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
35207661644 Hex. Flanged Screw M6 X 16. XTHex. Flanged Screw M6 X 16. XT
-
36390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
37278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
38710001248 Outlet DCOutlet DC
