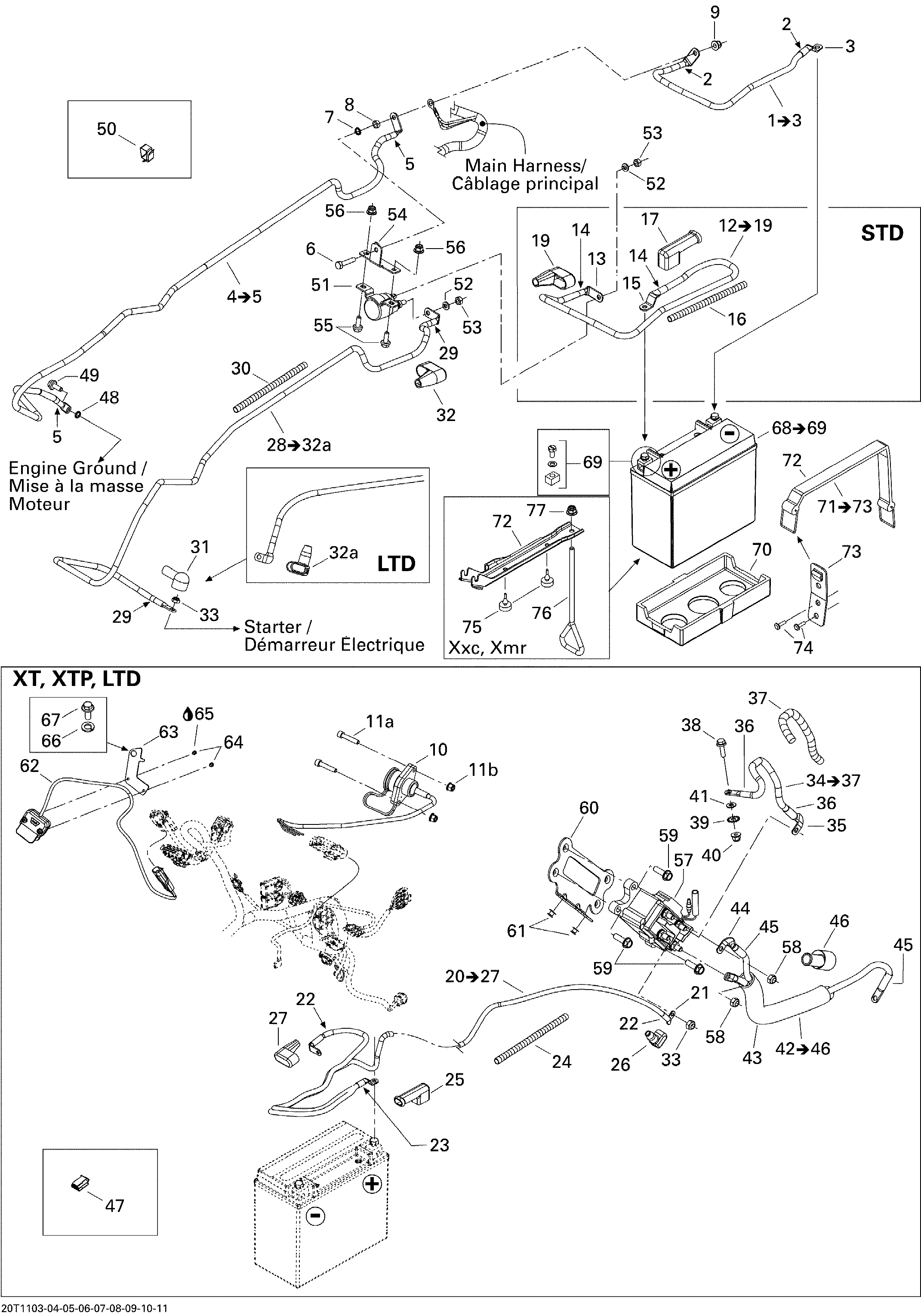

10- Electrical System для BRP Outlander Max 500 EFI - 2011
-
№АртикулНазвание
-
1710000830 Ground Cable, Battery/frame. Includes 1 to 3Ground Cable, Battery/frame. Includes 1 to 3
-
2710000483 Shrink TubingShrink Tubing
-
3710000518 Open BarrelOpen Barrel
-
4710000844 Ground Cable. Includes 4 to 5Ground Cable. Includes 4 to 5
-
5710000483 Shrink TubingShrink Tubing
-
6207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
7234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
8232061414 Hex. Nut M6Hex. Nut M6
-
9233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
10710001023 Winch Connector. XTWinch Connector. XT
-
11a205052588 Socket Head Screw M5 X 25. XTSocket Head Screw M5 X 25. XT
-
11b233251414 Hex. Flanged Elastic Nut M5. XTHex. Flanged Elastic Nut M5. XT
-
12710001822 Positive Cable. Includes 12 to 19, STDPositive Cable. Includes 12 to 19, STD
-
14710000483 Shrink TubingShrink Tubing
-
16710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
17710001829 Protector CapProtector Cap
-
19710001817 Protector CapProtector Cap
-
20710001824 Positive Cable. Includes 20 to 27, XTPositive Cable. Includes 20 to 27, XT
-
21710000476 Open Barrel, 6.6 mmOpen Barrel, 6.6 mm
-
22710000483 Shrink TubingShrink Tubing
-
23275500578 Shrink TubingShrink Tubing
-
24710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
25710001829 Protector CapProtector Cap
-
26710001828 Protector CapProtector Cap
-
27710001817 Protector CapProtector Cap
-
28710001819 Positive Cable. Includes 28 to 32aPositive Cable. Includes 28 to 32a
-
29710000483 Shrink TubingShrink Tubing
-
30710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
31710000526 Protector CapProtector Cap
-
32710001817 Protector CapProtector Cap
-
33232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
34710000455 Negative Cable. Includes 34 to 37, XTNegative Cable. Includes 34 to 37, XT
-
35710000476 Open Barrel, 6.6 mmOpen Barrel, 6.6 mm
-
36710000483 Shrink TubingShrink Tubing
-
37710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
38207662044 Hex. Flanged Screw M6 X 20. XTHex. Flanged Screw M6 X 20. XT
-
39250200041 Lock Washer Serrated M6. XTLock Washer Serrated M6. XT
-
40233261414 Hex. Flanged Elastic Nut M6. XTHex. Flanged Elastic Nut M6. XT
-
41224061121 Flat Washer. XTFlat Washer. XT
-
42710001615 Winch Cable Ass'y. Includes 42 to 46, XTWinch Cable Ass'y. Includes 42 to 46, XT
-
43409901600 Tubing 19 mmTubing 19 mm
-
44710000476 Open Barrel, 6.6 mmOpen Barrel, 6.6 mm
-
45710000483 Shrink TubingShrink Tubing
-
46515175919 Protector CapProtector Cap
-
47710000992 Clip. XTClip. XT
-
48234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
49207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
50414227300 ClipClip
-
51710001364 Starter RelayStarter Relay
-
52234161601 Lock Washer Helical M6Lock Washer Helical M6
-
53232061600 Hex. Nut M6Hex. Nut M6
-
54710001260 Solenoid SupportSolenoid Support
-
55207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
56233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
57710001000 Winch Solenoid. XTWinch Solenoid. XT
-
58232561434 Elastic Stop Nut M6. XTElastic Stop Nut M6. XT
-
59210262080 Hex. Forming Screw M6 X 20. XTHex. Forming Screw M6 X 20. XT
-
60710001596 Bracket Winch Relay. XTBracket Winch Relay. XT
-
61390406500 Pop Rivet 3/16''. XTPop Rivet 3/16''. XT
-
62710001001 Winch Interrupter. XTWinch Interrupter. XT
-
63710000755 Winch Interrupter Support. XTWinch Interrupter Support. XT
-
64250000153 Hex. Cap Screw 6-32 X 1/4''. XTHex. Cap Screw 6-32 X 1/4''. XT
-
65293800060 Loctite 243, 10 ml. XTLoctite 243, 10 ml. XT
-
67250000029 Hex. Screw M10 X 16. XTHex. Screw M10 X 16. XT
-
68410301203 Battery, 18 Amperes. Includes 68 to 69Battery, 18 Amperes. Includes 68 to 69
-
69295500849 Battery Fastener KitBattery Fastener Kit
-
70710000279 Insulator PadInsulator Pad
-
72293850097 Retainer StrapRetainer Strap
-
73293850030 Strap ClipStrap Clip
-
74390402400 Pop Rivet 3/16''Pop Rivet 3/16''
