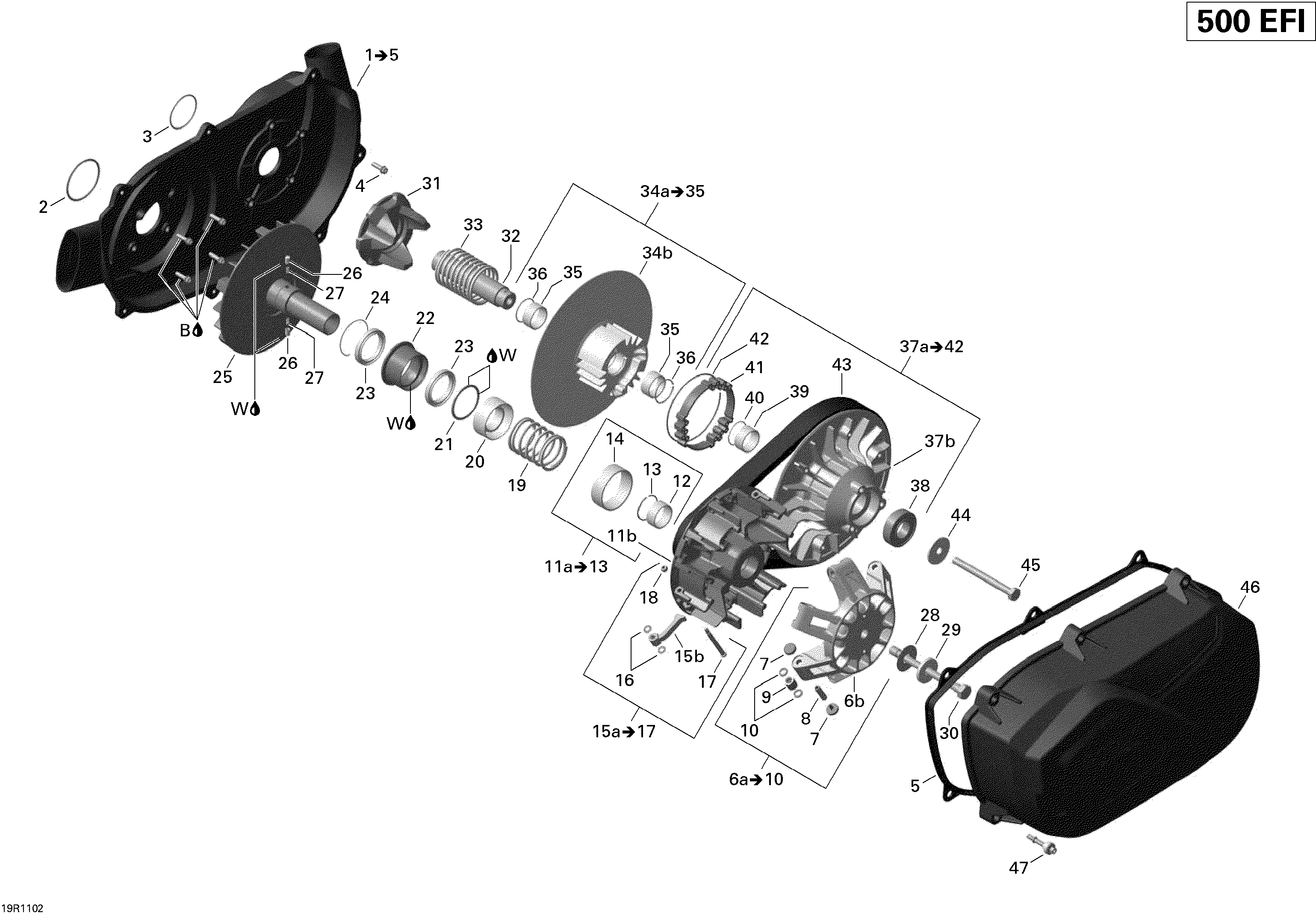

05- Transmission для BRP Outlander Max 500 EFI - 2011
-
№АртикулНазвание
-
1420611407 CVT Air Guide Kit. Includes 1 to 5CVT Air Guide Kit. Includes 1 to 5
-
2420430408 O-RingO-Ring
-
3420631088 O-RingO-Ring
-
4420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
5420430126 GasketGasket
-
6a420280157 Governor Cup Ass'y. Includes 6a to 10Governor Cup Ass'y. Includes 6a to 10
-
7420281293 Slider Shoe SetSlider Shoe Set
-
8420233893 Roller SleeveRoller Sleeve
-
9420229997 RollerRoller
-
10420626231 Thrust WasherThrust Washer
-
11a420280313 Outer Half Ass'y. Includes 11a to 14Outer Half Ass'y. Includes 11a to 14
-
15a420248555 Centrifugal Lever Set. Includes 15a to 18Centrifugal Lever Set. Includes 15a to 18
-
19420238166 Compression SpringCompression Spring
-
20420627577 Spring SeatSpring Seat
-
21420460430 Friction WasherFriction Washer
-
22420257195 Drive Pulley ClutchDrive Pulley Clutch
-
23420632375 Ball BearingBall Bearing
-
24420245951 Retaining RingRetaining Ring
-
25420280374 Inner HalfInner Half
-
26420229577 Spring SleeveSpring Sleeve
-
27420239134 SpringSpring
-
28420627920 Thrust WasherThrust Washer
-
29420627765 Spring WasherSpring Washer
-
30420641855 Hex. Screw M12 X 135Hex. Screw M12 X 135
-
31420280199 Driven Pulley CamDriven Pulley Cam
-
32420220914 Driven Pulley ShaftDriven Pulley Shaft
-
33420238173 Compression Spring, Driven PulleyCompression Spring, Driven Pulley
-
34a420248233 Inner Half Ass'y. Includes 34a to 36Inner Half Ass'y. Includes 34a to 36
-
37a420280173 Outer Half Pulley Ass'y. Includes 37a to 42Outer Half Pulley Ass'y. Includes 37a to 42
-
38420932421 Ball BearingBall Bearing
-
41420660121 Torque GearTorque Gear
-
42420245910 Retaining RingRetaining Ring
-
43715000302 V-BeltV-Belt
-
44420627590 Thrust WasherThrust Washer
-
45420441480 Hex. Screw M10 X 110Hex. Screw M10 X 110
-
46420611393 Variator CoverVariator Cover
-
47420440560 Torx Screw M6 X 30.5Torx Screw M6 X 30.5
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
W293550021 Isoflex Grease, TOPAS NB52, 50 gIsoflex Grease, TOPAS NB52, 50 g
