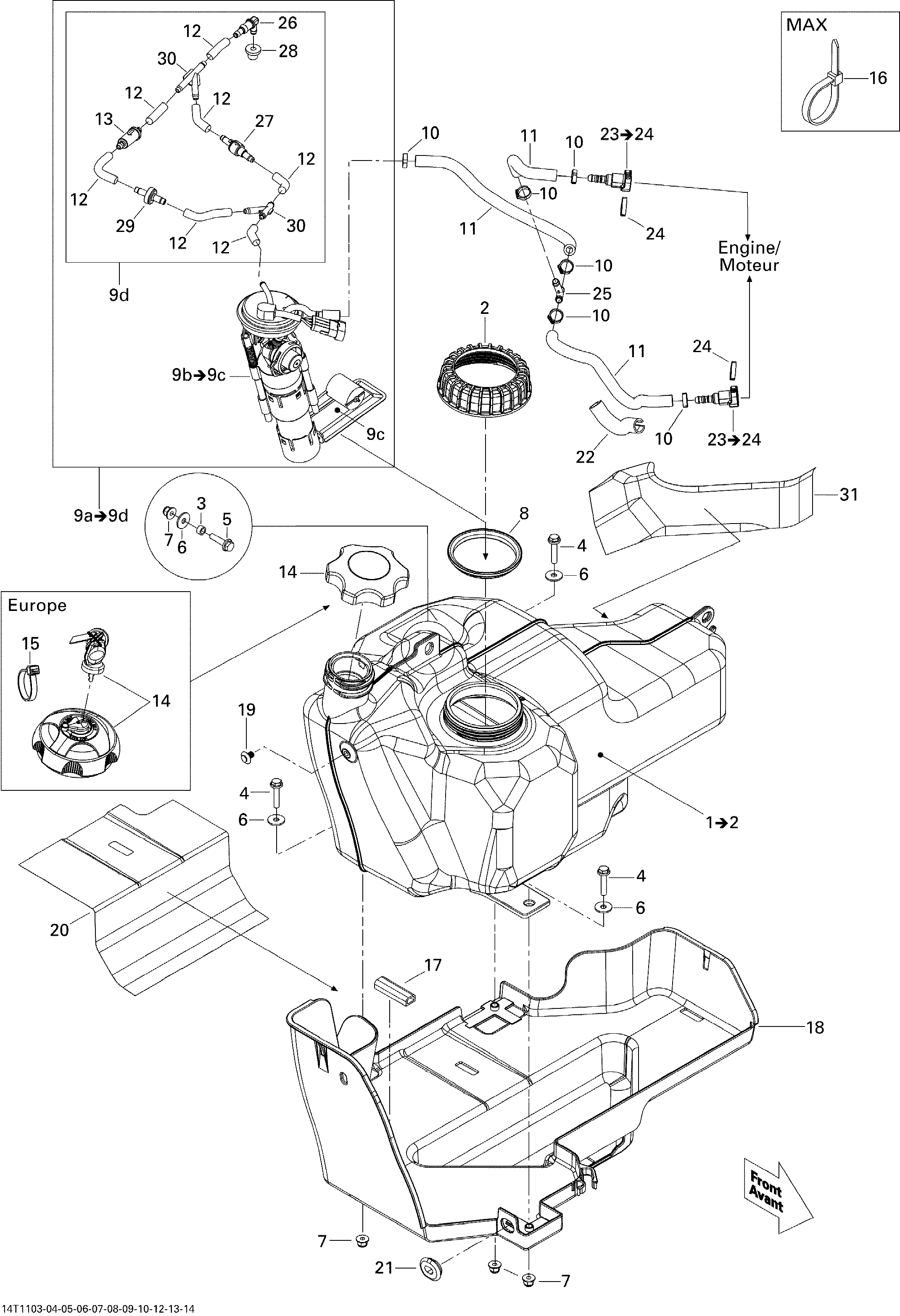

02- Fuel System для BRP Outlander Max 500 EFI - 2011
-
№АртикулНазвание
-
1709000220 Fuel Tank. Includes 1 to 2Fuel Tank. Includes 1 to 2
-
2513033040 Nut, Fuel Pump ModuleNut, Fuel Pump Module
-
3293900029 BushingBushing
-
4207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
5207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6224060251 WasherWasher
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8709000208 SealSeal
-
9a703500766 Fuel Pump Kit Ass'y. Includes 9a to 9dFuel Pump Kit Ass'y. Includes 9a to 9d
-
9c709000389 Preliminary Filter KitPreliminary Filter Kit
-
9d715001288 Fuel Vent Kit Ass'y. Includes 12,13,26,27,28,29,30Fuel Vent Kit Ass'y. Includes 12,13,26,27,28,29,30
-
10293650046 Oetiker ClampOetiker Clamp
-
11709000163 Fuel LineFuel Line
-
12415080200 Hose, PolyurethaneHose, Polyurethane
-
13709000330 FilterFilter
-
14513033025 Fuel Tank CapFuel Tank Cap
-
14709000267 Fuel Tank Cap. EuropeFuel Tank Cap. Europe
-
15293750001 Tie-Rap 94 mm. EuropeTie-Rap 94 mm. Europe
-
16293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
17293200093 Neoprene SealNeoprene Seal
-
18709000207 Tank ProtectorTank Protector
-
19293150168 Plastic Tuklock RivetPlastic Tuklock Rivet
-
20709000149 Reflective SheetReflective Sheet
-
21705005156 Oblong WasherOblong Washer
-
22409901800 Tubing 13 mmTubing 13 mm
-
23709000125 Female Quick Fitting Ass'y. Includes 23 to 24Female Quick Fitting Ass'y. Includes 23 to 24
-
24513033135 Locking ClipLocking Clip
-
25293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
26414580600 Elbow Male ConnectorElbow Male Connector
-
27513033469 Check ValveCheck Valve
-
28293720029 GrommetGrommet
-
29275500398 Check ValveCheck Valve
-
30293710059 Y-FittingY-Fitting
-
31709000204 Reflecting SheetReflecting Sheet
