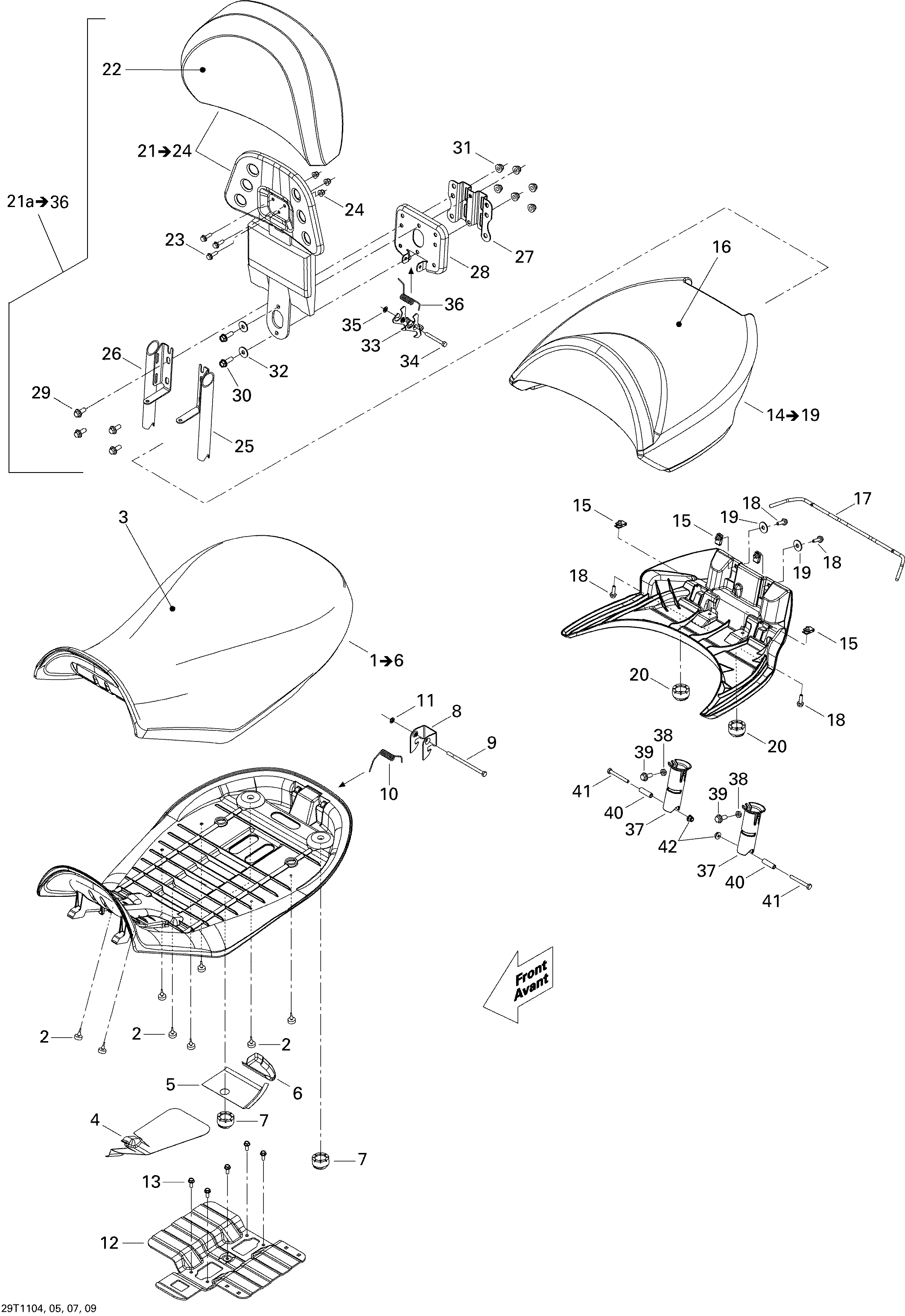

09- Seat для BRP Outlander Max 500 EFI - 2011
-
№АртикулНазвание
-
1715500323 Seat Ass'y. Includes 1 to 6Seat Ass'y. Includes 1 to 6
-
2708000759 Rubber StopperRubber Stopper
-
3708000538 Seat CoverSeat Cover
-
4708000800 Reflecting SheetReflecting Sheet
-
5708000470 Reflecting SheetReflecting Sheet
-
6708000487 Reflecting SheetReflecting Sheet
-
7708000760 Bumper RubberBumper Rubber
-
8708000144 Latch, BlackLatch, Black
-
9230061034 Hex Screw M6 X 110Hex Screw M6 X 110
-
10708000369 SpringSpring
-
11732610072 Push NutPush Nut
-
12708000817 Reinforcement SeatReinforcement Seat
-
13210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
14708000805 Rear Seat Ass'y. Includes 14 to 19Rear Seat Ass'y. Includes 14 to 19
-
15250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
16708000457 Seat CoverSeat Cover
-
17708000822 Latch HandleLatch Handle
-
18207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
19234161471 Lock Washer M6, BlackLock Washer M6, Black
-
20708000760 Bumper RubberBumper Rubber
-
21708000809 Backrest Ass'y. Includes 21 to 24Backrest Ass'y. Includes 21 to 24
-
22708000465 Backrest CoverBackrest Cover
-
23207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
24233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
25708000439 LH Backrest StemLH Backrest Stem
-
26708000443 RH Backrest StemRH Backrest Stem
-
27708000855 Rear PlateRear Plate
-
28708000446 Front PlateFront Plate
-
29207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
30207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
31233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
32234082410 Flat Washer 8 mmFlat Washer 8 mm
-
33708000448 LatchLatch
-
34207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
35732610072 Push NutPush Nut
-
36708000369 SpringSpring
-
37708000461 Rod GuideRod Guide
-
38232180600 Nut M8Nut M8
-
39207182034 Hex. Cap Screw M8 X 20Hex. Cap Screw M8 X 20
-
40708000530 Inner BushingInner Bushing
-
41207065034 Hex. Cap Screw M6 X 50Hex. Cap Screw M6 X 50
-
42233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
