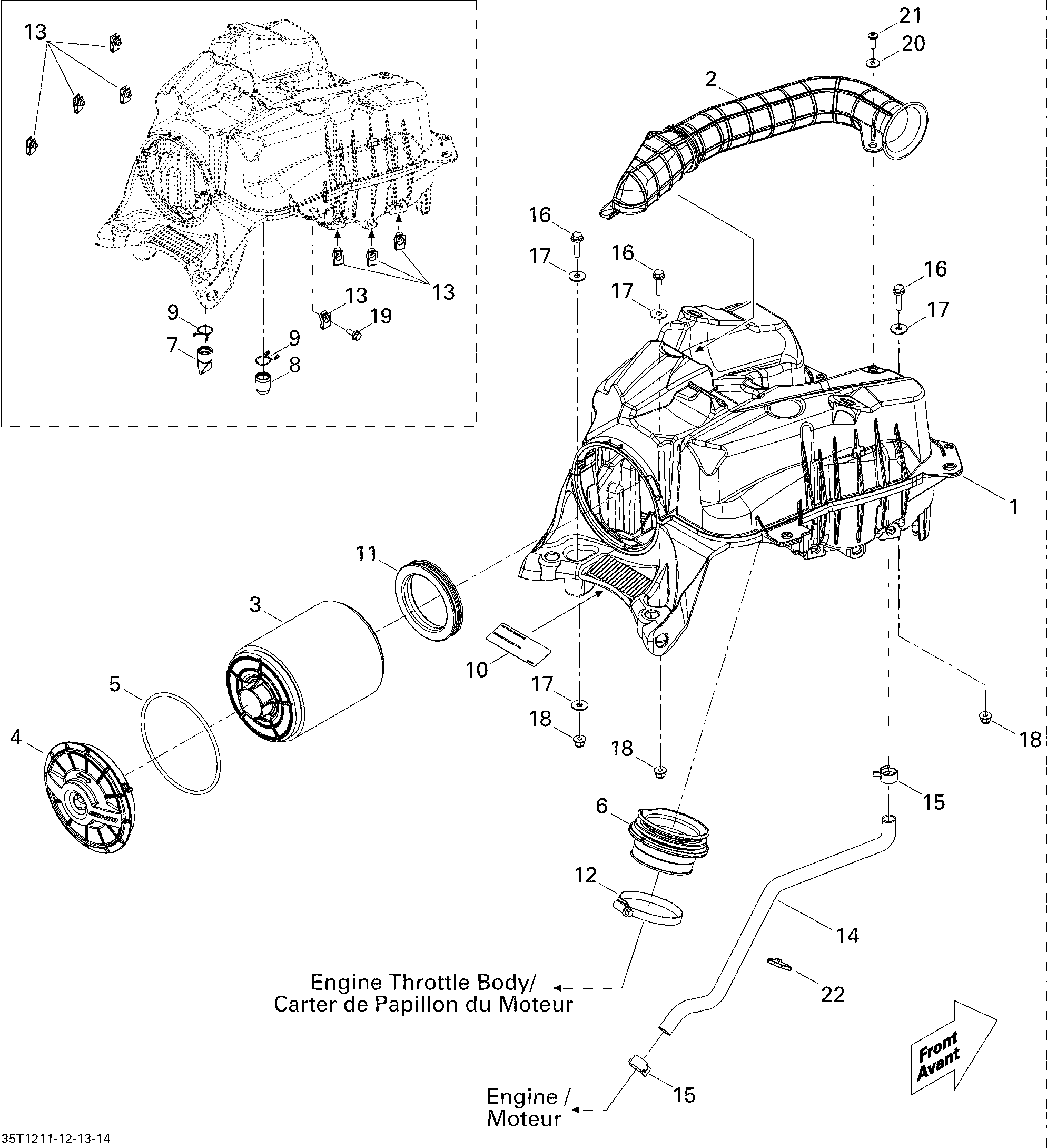

02- Air Intake для BRP Renegade STD, XXC, 1000 EFI - 2012
-
№АртикулНазвание
-
1707800367 Intake SilencerIntake Silencer
-
2707800375 Air Intake HoseAir Intake Hose
-
3707800371 Air FilterAir Filter
-
4707800396 Air Filter CapAir Filter Cap
-
5293300150 O-RingO-Ring
-
6707800333 Intake AdaptorIntake Adaptor
-
7707800404 Drain TubeDrain Tube
-
8707800080 Drain TubeDrain Tube
-
9707800278 Retainer ClipRetainer Clip
-
10707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
11707800470 Air Filter AdaptorAir Filter Adaptor
-
12293650091 Norma ClampNorma Clamp
-
13250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
14707800453 Vent HoseVent Hose
-
15293650110 Norma ClampNorma Clamp
-
16207662534 Hex. Flanged ScrewHex. Flanged Screw
-
17391302000 Flat WasherFlat Washer
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
20391301600 WasherWasher
-
21250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
22414115200 Tie-Rap 180 mmTie-Rap 180 mm
