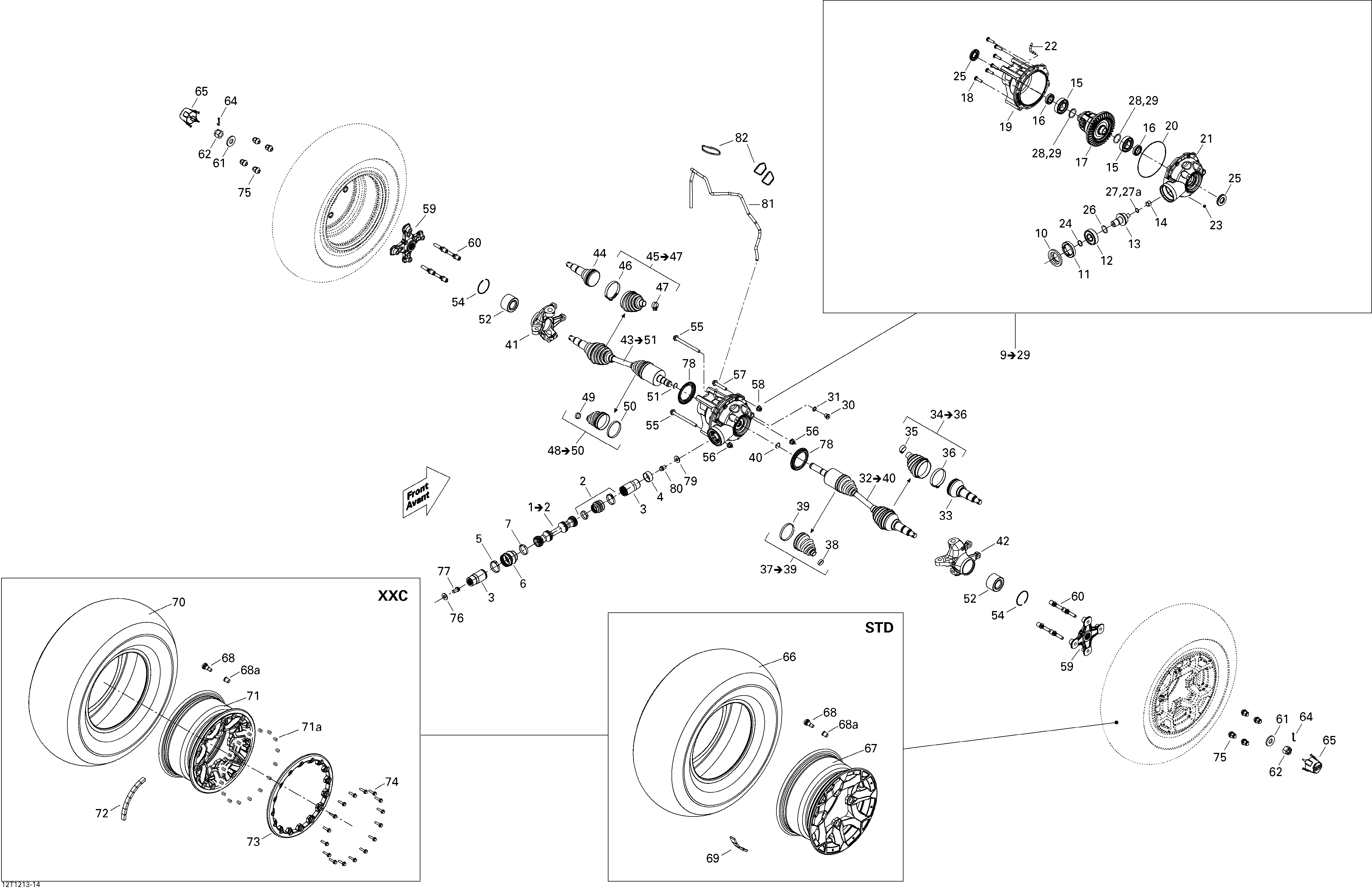

07- Drive System, Front для BRP Renegade STD, XXC, 1000 EFI - 2012
-
№АртикулНазвание
-
1705400913 Front Drive Axle Ass'y. Includes 1 to 2Front Drive Axle Ass'y. Includes 1 to 2
-
2703500794 Rubber Boot KitRubber Boot Kit
-
3703500678 Front Bushing Shaft kitFront Bushing Shaft kit
-
4705400036 Wear RingWear Ring
-
5293650138 Oetiker ClampOetiker Clamp
-
6705401093 Rubber BootRubber Boot
-
7293650199 Oetiker ClampOetiker Clamp
-
9705400772 Front Differential Ass'y. STD, Includes 9 to 29Front Differential Ass'y. STD, Includes 9 to 29
-
9705401077 Front Differential Ass'y. XXC, Includes 9 to 29Front Differential Ass'y. XXC, Includes 9 to 29
-
10705400027 Oil SealOil Seal
-
11705400661 NutNut
-
12705500260 Ball BearingBall Bearing
-
13705501588 10 Teeth Pinion10 Teeth Pinion
-
14705500261 Needle BearingNeedle Bearing
-
15705500259 Ball BearingBall Bearing
-
16293350044 Ball BearingBall Bearing
-
17705400645 Differential. STDDifferential. STD
-
17705400822 Differential. XXCDifferential. XXC
-
18705500892 ScrewScrew
-
19705400762 Front CoverFront Cover
-
20705500265 SealSeal
-
21705400761 Front CoverFront Cover
-
22705500893 Vent ValveVent Valve
-
23705500894 Drain PlugDrain Plug
-
24705500267 O-RingO-Ring
-
25705500255 Oil SealOil Seal
-
26703500049 Pinion Shim KitPinion Shim Kit
-
27705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
27a705501162 Pinion Gear ShimPinion Gear Shim
-
28703500288 Differential Shim KitDifferential Shim Kit
-
29703500050 Differential Shim KitDifferential Shim Kit
-
30250400041 Screw PlugScrew Plug
-
31705500506 Copper WasherCopper Washer
-
32705400757 RH Homocinetic Joint. Includes 32 to 40RH Homocinetic Joint. Includes 32 to 40
-
33705500560 CV JointCV Joint
-
34705400511 Wheel Boot Kit. Includes 34 to 36Wheel Boot Kit. Includes 34 to 36
-
35293650192 Oetiker Clamp 23mmOetiker Clamp 23mm
-
36293650194 Oetiker Clamp 70mmOetiker Clamp 70mm
-
37705400512 Differential Boot Kit. Includes 37 to 39Differential Boot Kit. Includes 37 to 39
-
38293650192 Oetiker Clamp 23mmOetiker Clamp 23mm
-
39293650193 Oetiker Clamp 67mmOetiker Clamp 67mm
-
40705400042 CirclipCirclip
-
41705401178 LH KnuckleLH Knuckle
-
42705401179 RH KnuckleRH Knuckle
-
43705400756 LH Homocinetic Joint. Includes 43 to 51LH Homocinetic Joint. Includes 43 to 51
-
44705500560 CV JointCV Joint
-
45705400511 Wheel Boot Kit. Includes 45 to 47Wheel Boot Kit. Includes 45 to 47
-
46293650192 Oetiker Clamp 23mmOetiker Clamp 23mm
-
47293650194 Oetiker Clamp 70mmOetiker Clamp 70mm
-
48705400512 Differential Boot Kit. Includes 48 to 50Differential Boot Kit. Includes 48 to 50
-
49293650192 Oetiker Clamp 23mmOetiker Clamp 23mm
-
50293650193 Oetiker Clamp 67mmOetiker Clamp 67mm
-
51705400042 CirclipCirclip
-
52293350040 Cone BearingCone Bearing
-
54293370019 CirclipCirclip
-
55230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
56233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
57207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
58233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
59705501264 Wheel HubWheel Hub
-
60250300048 Wheel StudWheel Stud
-
61250200049 Spring WasherSpring Washer
-
62250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
64250400036 Cotter PinCotter Pin
-
65705400928 Wheel CapWheel Cap
-
66705400600 Front Tire. STDFront Tire. STD
-
67705401091 Front Rim. STDFront Rim. STD
-
68705400193 Rim Valve with CapRim Valve with Cap
-
68a293000110 Valve CapValve Cap
-
69705501385 1/2 OZ Weight. STD1/2 OZ Weight. STD
-
70705400600 Front Tire. XXCFront Tire. XXC
-
70705400475 Front Tire. XXC EuropeFront Tire. XXC Europe
-
71705401155 Front Rim. XXCFront Rim. XXC
-
71a293450317 Insert. XXCInsert. XXC
-
73705401156 Yellow Plate Reinforcement Disc. XXCYellow Plate Reinforcement Disc. XXC
-
74250000435 Hex. Flanged Screw M6 X 25. XXCHex. Flanged Screw M6 X 25. XXC
-
75250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
76250200102 Flat Washer M12Flat Washer M12
-
77250000540 Hex Flanged Screw M12 X 20Hex Flanged Screw M12 X 20
-
78705400780 Wear SleeveWear Sleeve
-
79250200102 Flat Washer M12Flat Washer M12
-
80250000378 Hex Flanged Screw S.Grip M12 X 16Hex Flanged Screw S.Grip M12 X 16
-
81415080200 Hose, PolyurethaneHose, Polyurethane
-
82414115200 Tie-Rap 180 mmTie-Rap 180 mm
